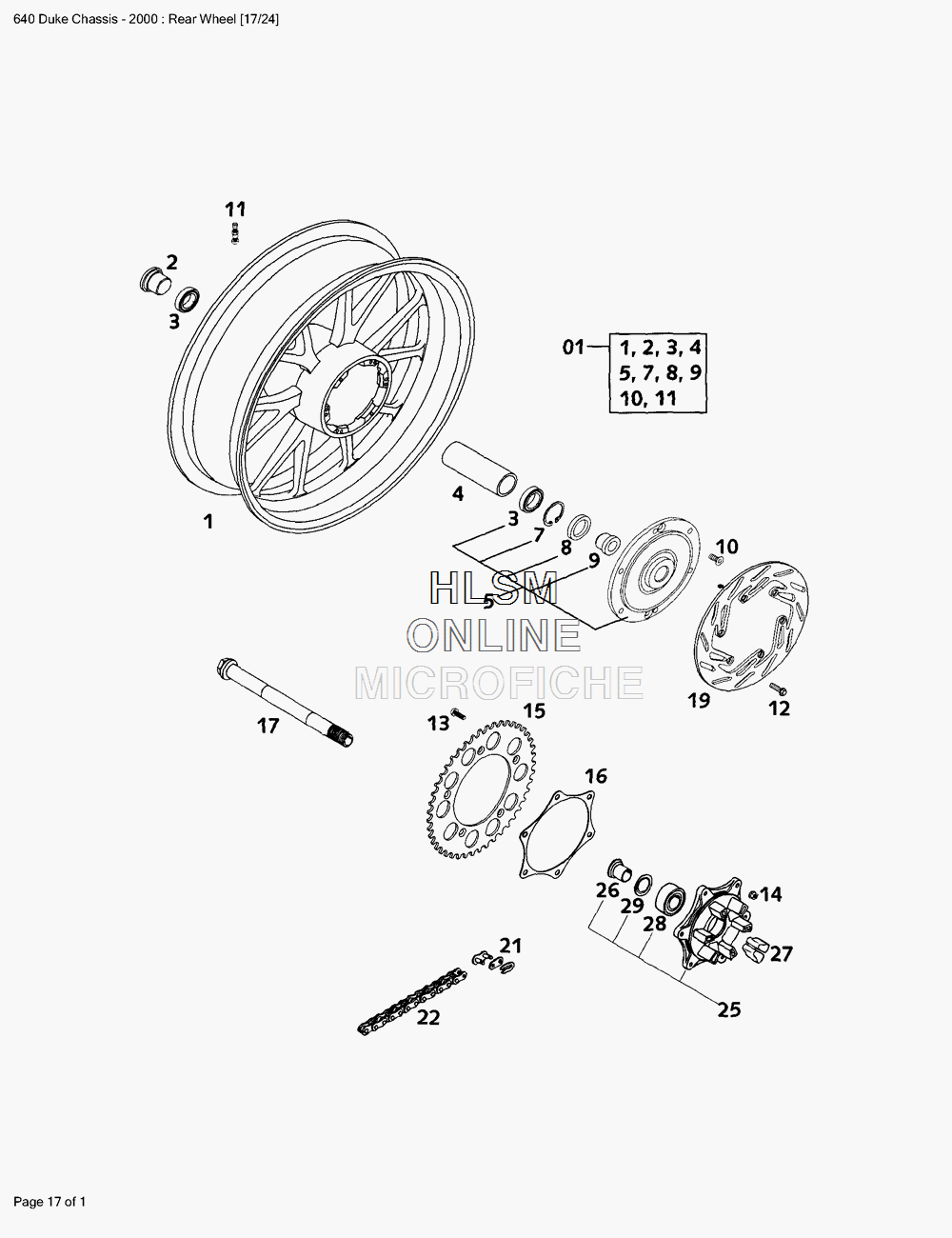

REAR WHEEL для Ktm LC4 640 Duke II - 2000 года выпуска
-
№АртикулНазвание
-
0158710068000 REAR WHEEL CPL.4,25X17" (SILVER)REAR WHEEL CPL.4,25X17" (SILVER)
-
015871006800030 REAR WHEEL CPL.4,25X17" (BLACK)REAR WHEEL CPL.4,25X17" (BLACK)
-
254610416300 BUSHING FOR REAR DAMPED HUBBUSHING FOR REAR DAMPED HUB
-
30625062052 GROOVED BALL BEAR. 6205 2RSRC3GROOVED BALL BEAR. 6205 2RSRC3
-
454610411100 BEARING SPACER TUBE L=98,5MMBEARING SPACER TUBE L=98,5MM
-
558710061000 BRAKEDISC ADAPTER REARBRAKEDISC ADAPTER REAR
-
70472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
80760325272 SHAFT SEAL RING 32X52X7 BSHAFT SEAL RING 32X52X7 B
-
954610016000 BUSHING FOR HUBBUSHING FOR HUB
-
100991060126 FLAT HEAD SCREW DIN7991-M 6X12FLAT HEAD SCREW DIN7991-M 6X12
-
1158709077044 VALVE CPL. BBSVALVE CPL. BBS
-
120015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
1354510052100 SPROCKET SCREW-AH M8X26 10.9SPROCKET SCREW-AH M8X26 10.9
-
1454310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
1558310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1558310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1558310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1558310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1658710049000 SPROCKET ADAPTER 1,5MM NIROSPROCKET ADAPTER 1,5MM NIRO
-
1758310085000 WHEEL SPINDLE REAR L=232MMWHEEL SPINDLE REAR L=232MM
-
1958010060600 REAR BRAKE DISK 220MM COUNTERSREAR BRAKE DISK 220MM COUNTERS
-
2150010066100 MASTER LINK 5/8X1/4" O-RINGMASTER LINK 5/8X1/4" O-RING
-
2250010065101 O-R.CHAIN 5/8X1/4"/M W.LINKO-R.CHAIN 5/8X1/4"/M W.LINK
-
2250010065100 O-RING CHAIN 5/8X1/4" DID (118 ROLLS)O-RING CHAIN 5/8X1/4" DID (118 ROLLS)
-
2558310050044 SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
2654610417300 BUSH. F.SPROCKET SUPPORT L=25MMBUSH. F.SPROCKET SUPPORT L=25MM
-
2754610459000 DAMPING RUBBERDAMPING RUBBER
-
280625032057 GROOVED BALL BEAR. 3205.B.2RSRGROOVED BALL BEAR. 3205.B.2RSR
-
2954610018000 SEAL WASHER 3205 AVSEAL WASHER 3205 AV
