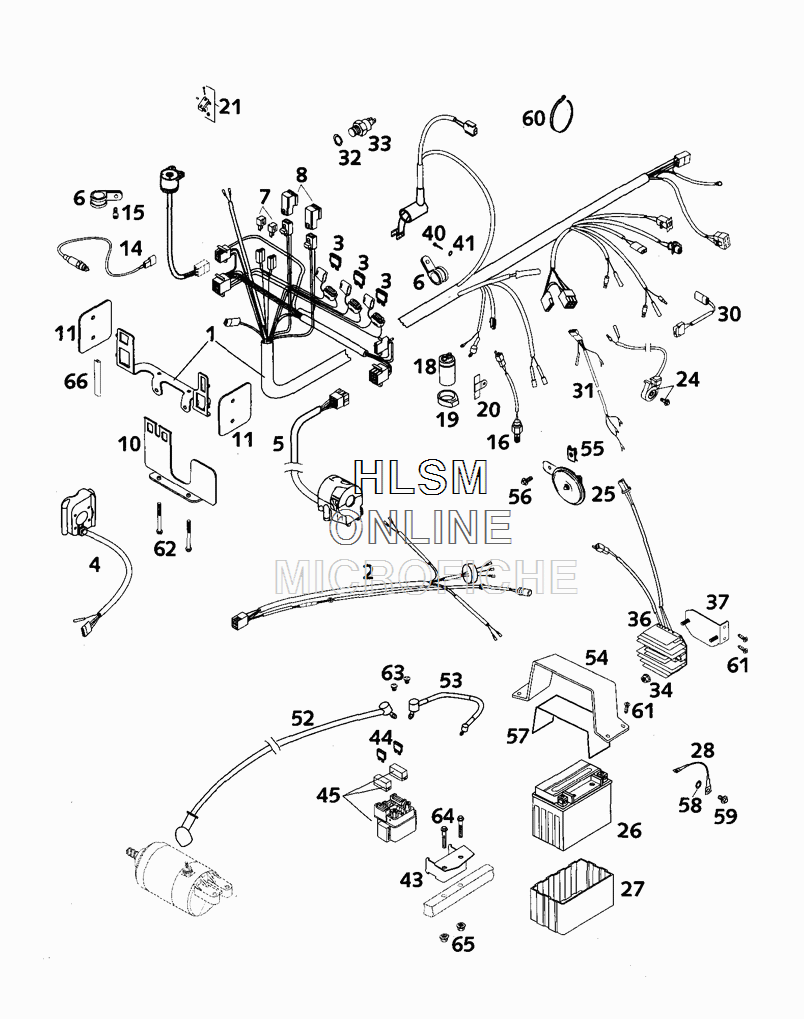

WIRING HARNESS для Ktm LC4 640 Duke II - 2000 года выпуска
-
№АртикулНазвание
-
158711075000 MAIN WIRING HARNESSMAIN WIRING HARNESS
-
258711076000 WIRING HARNESS REARWIRING HARNESS REAR
-
358011109110 FUSE 10 A 2000FUSE 10 A 2000
-
459011074000 START-STOP TIP SWITCH CPL.START-STOP TIP SWITCH CPL.
-
459011074100 START-STOP SWITCH CPL. (ONLY FOR AUSTRALIA)START-STOP SWITCH CPL. (ONLY FOR AUSTRALIA)
-
558411070000 HEAD LIGHT SWITCH CEVHEAD LIGHT SWITCH CEV
-
657013070400 PVC CLAMP HEYCO 11/16 3377PVC CLAMP HEYCO 11/16 3377
-
758411096100 DIODE FOR E-START S3H-15DIODE FOR E-START S3H-15
-
858411057000 STARTER RELAYSTARTER RELAY
-
1058711083050 SCREEN F. BRACKET DUKESCREEN F. BRACKET DUKE
-
1158711083020 COVER F. BRACKETCOVER F. BRACKET
-
1458411049000 CLUTCH SWITCHCLUTCH SWITCH
-
150912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
1650311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
1849111435100 CONDENSATOR 25V, 10.000 MFCONDENSATOR 25V, 10.000 MF
-
1954511048000 CAPACITOR BRACKETCAPACITOR BRACKET
-
2054611448000 BRACKET FOR CAPACITORBRACKET FOR CAPACITOR
-
2158313021100 BRAKE LIGHT SWITCH CPL. FRONTBRAKE LIGHT SWITCH CPL. FRONT
-
2458411045000 SIDE STAND SWITCH CPL.SIDE STAND SWITCH CPL.
-
2554511060100 DC HORN 12V NIKKODC HORN 12V NIKKO
-
2658411053000 BATTERY 12V 8AHBATTERY 12V 8AH
-
2758411053050 BATTERY COVER (RUBBER)BATTERY COVER (RUBBER)
-
2858411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
3058431065100 MICRO SWITCHMICRO SWITCH
-
3158411085000 WIRING HARN. EPC F. ENGINE LC4WIRING HARN. EPC F. ENGINE LC4
-
320603142015 ALU SEALRING DIN7603-14X20X1,5ALU SEALRING DIN7603-14X20X1,5
-
3358035045000 THERMOSWITCH 80-85 DGTHERMOSWITCH 80-85 DG
-
3456509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
3658411034100 VOLT.REGULATOR-RECTIFIER 12VVOLT.REGULATOR-RECTIFIER 12V
-
3758711055000 BATTERY BRACKET REGULATORBATTERY BRACKET REGULATOR
-
400981480133 SHEET MET..SCR.DIN7981- 4,8X13SHEET MET..SCR.DIN7981- 4,8X13
-
410797050003 TOOTH LOCK WASH. DIN6797-J 5,3TOOTH LOCK WASH. DIN6797-J 5,3
-
4358711058050 BRACKET FOR STARTER RELAYBRACKET FOR STARTER RELAY
-
4458011109120 FUSE 20 A 2000FUSE 20 A 2000
-
4558211058000 STARTER RELAY DUKESTARTER RELAY DUKE
-
5258411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
5358711086000 WIRING HARNESS BATTERYWIRING HARNESS BATTERY
-
5458711054000 BRACKET FOR BATTERYBRACKET FOR BATTERY
-
5554603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
560014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
5758711054050 METAMOLL FOR BATTERY BRACKETMETAMOLL FOR BATTERY BRACKET
-
5858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
590015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
6044011076305 CABLE TIE 290MMCABLE TIE 290MM
-
6044011076200 CABLE TIE 200MMCABLE TIE 200MM
-
610017060203 SPECIAL SCREW T60 6X20SPECIAL SCREW T60 6X20
-
620015060653 HH COLLAR SCREW M 6X65 WS=8HH COLLAR SCREW M 6X65 WS=8
-
630902060083 AH OVAL SCREW DIN0902-M 6X8AH OVAL SCREW DIN0902-M 6X8
-
640015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
-
6556509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
6658312085100 EDGE PROTECTOR FOR COVEREDGE PROTECTOR FOR COVER
