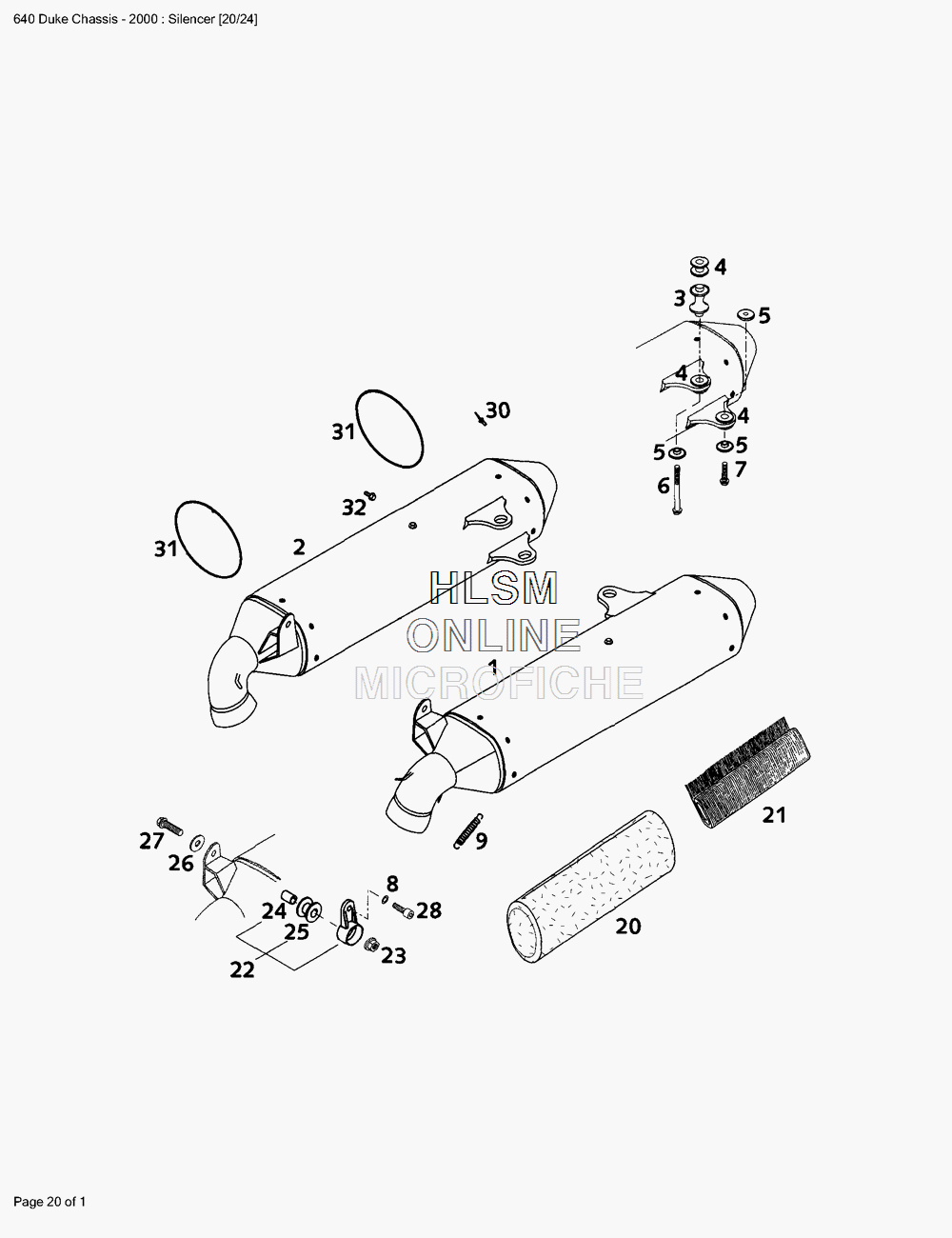

SILENCER для Ktm LC4 640 Duke II - 2000 года выпуска
-
№АртикулНазвание
-
158705070000 SILENCER L/S DUKE NATURESILENCER L/S DUKE NATURE
-
158705070000 SILENCER L/S DUKE BLACKSILENCER L/S DUKE BLACK
-
158705070100 SILENCER L/S DUKE USASILENCER L/S DUKE USA
-
15870507010030 SILENCER L/S BLACK USA 2000 (ONLY FOR USA)SILENCER L/S BLACK USA 2000 (ONLY FOR USA)
-
258705071000 SILENCER R/S DUKE NATURESILENCER R/S DUKE NATURE
-
258705071000 SILENCER R/S DUKE BLACKSILENCER R/S DUKE BLACK
-
258705071100 SILENCER R/S DUKE USASILENCER R/S DUKE USA
-
25870507110030 SILENCER R/S BLACK USA 2000 (ONLY FOR USA)SILENCER R/S BLACK USA 2000 (ONLY FOR USA)
-
358708015050 CLAMP NUMBER PLATE CARRIERCLAMP NUMBER PLATE CARRIER
-
454605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
554605069000 BUSHING 7,5X12X28X7,8BUSHING 7,5X12X28X7,8
-
60015060653 HH COLLAR SCREW M 6X65 WS=8HH COLLAR SCREW M 6X65 WS=8
-
70014060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
80137060000 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
950305016000 TENSION SPRING L=55MMTENSION SPRING L=55MM
-
2058705078350 STUFFINGYARN 350 GRAMMSTUFFINGYARN 350 GRAMM
-
2158705078080 STUFINGYARN 80 GRAMMSTUFINGYARN 80 GRAMM
-
2254305065444 SIL.BRACKET CPL. LONG 8MMSIL.BRACKET CPL. LONG 8MM
-
2354310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2456505069000 SPACER BUSHING 8,4X12X16SPACER BUSHING 8,4X12X16
-
2554305068100 DAMPING COMPONENT SILICON GREYDAMPING COMPONENT SILICON GREY
-
260021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
270015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
280912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
300011480802 DUMMY RIVET 4,8X 8,0 NIRODUMMY RIVET 4,8X 8,0 NIRO
-
310770223601 O-RING 82,14X3,53 SILIKONO-RING 82,14X3,53 SILIKON
-
320009050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
