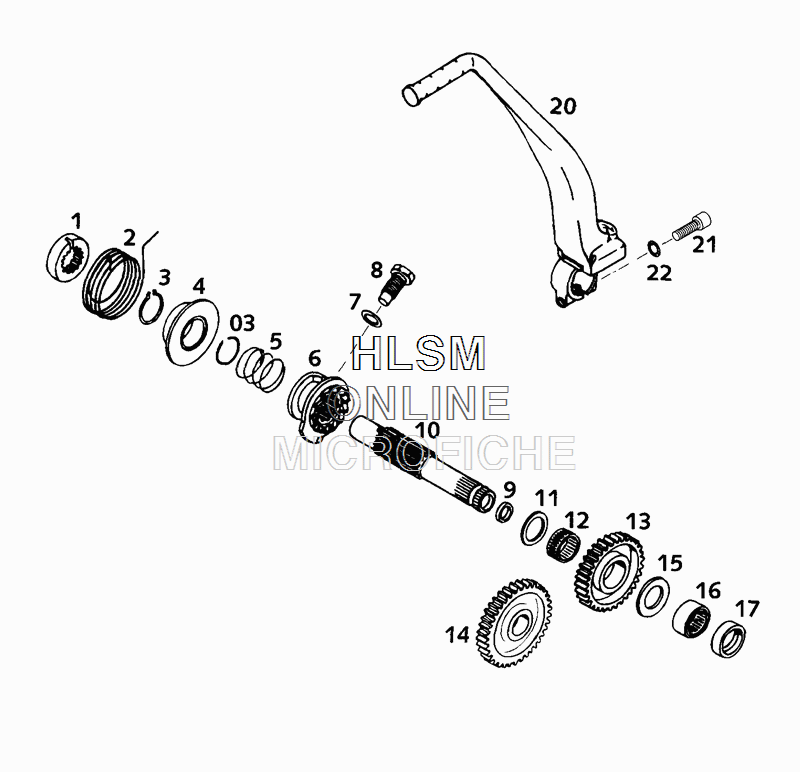

KICKSTARTER для Ktm LC4 640 Duke II - 2000 года выпуска

№

Артикул

Название
1

58033026200 DRIVING HUB

DRIVING HUB

16 090 ₽
2

58033020000 KICKSTARTER SPRING

KICKSTARTER SPRING

3 680 ₽
3

52033096000 LOCK RING DIN0471-25X1,64SD

LOCK RING DIN0471-25X1,64SD

1 110 ₽
03

52033090100 LOCK RING 25X1,2

LOCK RING 25X1,2

790 ₽
4

58033037000 SPRING BUSHING

SPRING BUSHING

4 520 ₽
5

58033028000 RATCHET GEAR SPRING 1,2 MM

RATCHET GEAR SPRING 1,2 MM

350 ₽
6

58033023200 RATCHET GEAR 24-T

RATCHET GEAR 24-T

86 150 ₽
7

58038022000 CU-SEAL RING DIN7603-12X18X1,5

CU-SEAL RING DIN7603-12X18X1,5

440 ₽
8

58033033000 STOP SCREW M12X1,5

STOP SCREW M12X1,5

3 350 ₽
9

54632090000 SEAL RING DH/GR 12X16X3

SEAL RING DH/GR 12X16X3

2 980 ₽
10

58033021300 KICKSTARTER SHAFT

KICKSTARTER SHAFT

29 410 ₽
11

58033031000 STOP DISK 22 X 30 X 1,5

STOP DISK 22 X 30 X 1,5

910 ₽
12

56533098000 NEEDLE BEARING K 22 X 26 X 13H

NEEDLE BEARING K 22 X 26 X 13H

3 210 ₽
13

58033022700 KICKSTARTER GEAR 35-T LOCKING TOOTH 24-T

KICKSTARTER GEAR 35-T LOCKING TOOTH 24-T

0 ₽
14

58033024000 INTERMEDIATE GEAR 37-T

INTERMEDIATE GEAR 37-T

26 280 ₽
15

56532012000 STOP DISK 22,2 X 35 X 2

STOP DISK 22,2 X 35 X 2

1 650 ₽
16

58033090000 NEEDLE BEARING RNA 4903

NEEDLE BEARING RNA 4903

8 680 ₽
17

0760223270 SHAFT SEAL RING 22X32X7 BSL

SHAFT SEAL RING 22X32X7 BSL

2 280 ₽
20

58333036044 KICKSTARTER CPL. ALU

KICKSTARTER CPL. ALU

42 230 ₽
21

0912080253 AH SCREW DIN0912-M 8X25

AH SCREW DIN0912-M 8X25

470 ₽
22

36003014000 LOCK WASHER 8MM

LOCK WASHER 8MM

290 ₽
