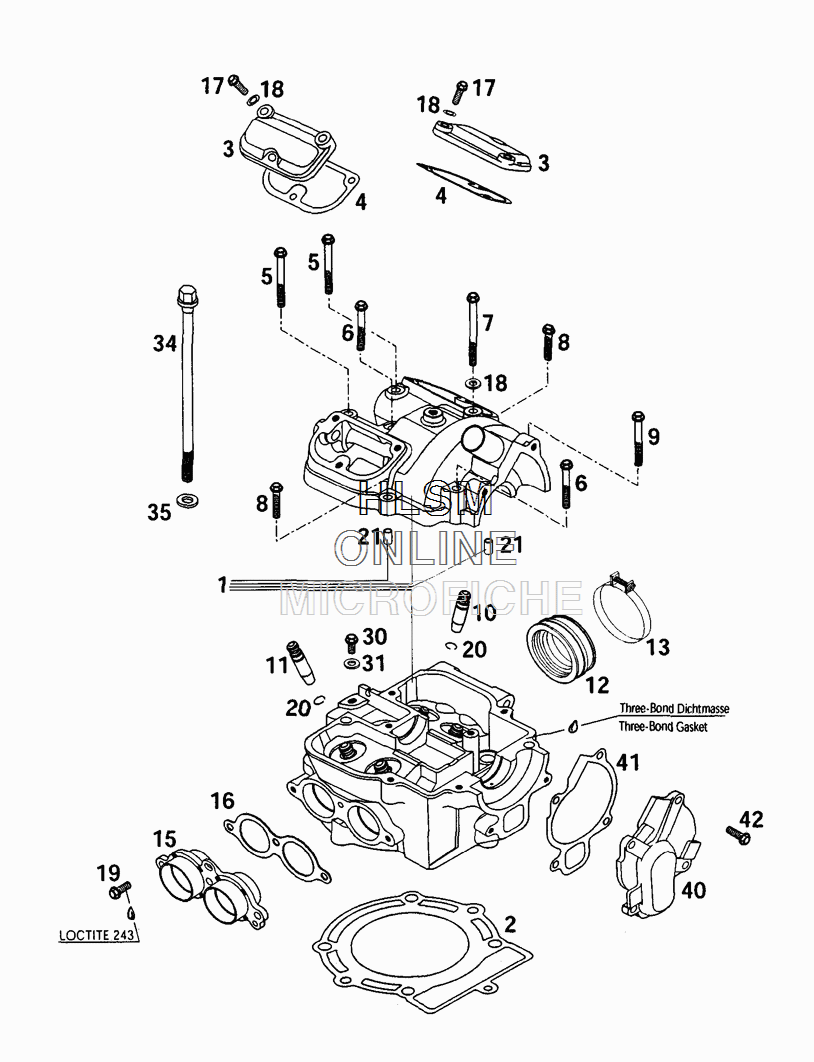

CYLINDER HEAD для Ktm 520 MXC Racing - 2001 года выпуска

№

Артикул

Название
1

59036020044 CYLINDER HEAD CPL.

CYLINDER HEAD CPL.

0 ₽
2

59030036000 CYLINDER HEAD GASKET 95,3 MM

CYLINDER HEAD GASKET 95,3 MM

11 770 ₽
3

58036052000 VALVE COVER REAR

VALVE COVER REAR

3 520 ₽
4

58036053000 VALVE COVER GASKET

VALVE COVER GASKET

910 ₽
5

0015060553 HH COLLAR SCREW MX55 WS=8

HH COLLAR SCREW MX55 WS=8

470 ₽
6

0015060453 HH COLLAR SCREW MX45 WS=8

HH COLLAR SCREW MX45 WS=8

470 ₽
7

0015060753 HH COLLAR SCREW MX75 WS=8

HH COLLAR SCREW MX75 WS=8

560 ₽
8

0015060303 HH COLLAR SCREW MX30 WS=8

HH COLLAR SCREW MX30 WS=8

560 ₽
9

0015060503 HH COLLAR SCREW MX50 WS=8

HH COLLAR SCREW MX50 WS=8

640 ₽
10

59036025000 VALVE GUIDE INTAKE 36,5MM

VALVE GUIDE INTAKE 36,5MM

0 ₽
11

59036026000 VALVE GUIDE EXHAUST 40,5MM

VALVE GUIDE EXHAUST 40,5MM

0 ₽
12

59036044000 INTAKE BOOT RACING N8R82

INTAKE BOOT RACING N8R82

2 430 ₽
13

59030061000 CLAMP D=56MM 8=9MM M4X25

CLAMP D=56MM 8=9MM M4X25

1 000 ₽
15

59036039000 EXHAUST FLANGE CPL

EXHAUST FLANGE CPL

15 010 ₽
16

59036041000 GASKET EXHAUST FLANGE 1MM

GASKET EXHAUST FLANGE 1MM

1 460 ₽
17

0015060203 HH COLLAR SCREW MX20 WS=8

HH COLLAR SCREW MX20 WS=8

500 ₽
18

0603061001 CU-SEAL RING DIN7603-X10X1

CU-SEAL RING DIN7603-X10X1

320 ₽
19

0015060163 HH COLLAR SCREW MX16 WS=8

HH COLLAR SCREW MX16 WS=8

290 ₽
20

0993012000 CIRCLIP DIN7993A-RW12

CIRCLIP DIN7993A-RW12

590 ₽
21

59030023000 DOWELX8X11,5

DOWELX8X11,5

910 ₽
30

59036006090 VENT SCREW M6X10 CPL,

VENT SCREW M6X10 CPL,

1 030 ₽
31

58036065100 CU-SEAL RING X 10 X 2

CU-SEAL RING X 10 X 2

270 ₽
34

59036079000 CYLINDER HEAD SCREW M10X158

CYLINDER HEAD SCREW M10X158

1 580 ₽
35

59036090000 SHIM 10,4X18,8X1,5

SHIM 10,4X18,8X1,5

180 ₽
40

59035052000 WATER PUMP COVER

WATER PUMP COVER

17 230 ₽
41

59035053000 WATER PUMP COVER GASKET 0,5MM

WATER PUMP COVER GASKET 0,5MM

1 490 ₽
42

0015060203 HH COLLAR SCREW MX20 WS=8

HH COLLAR SCREW MX20 WS=8

500 ₽
