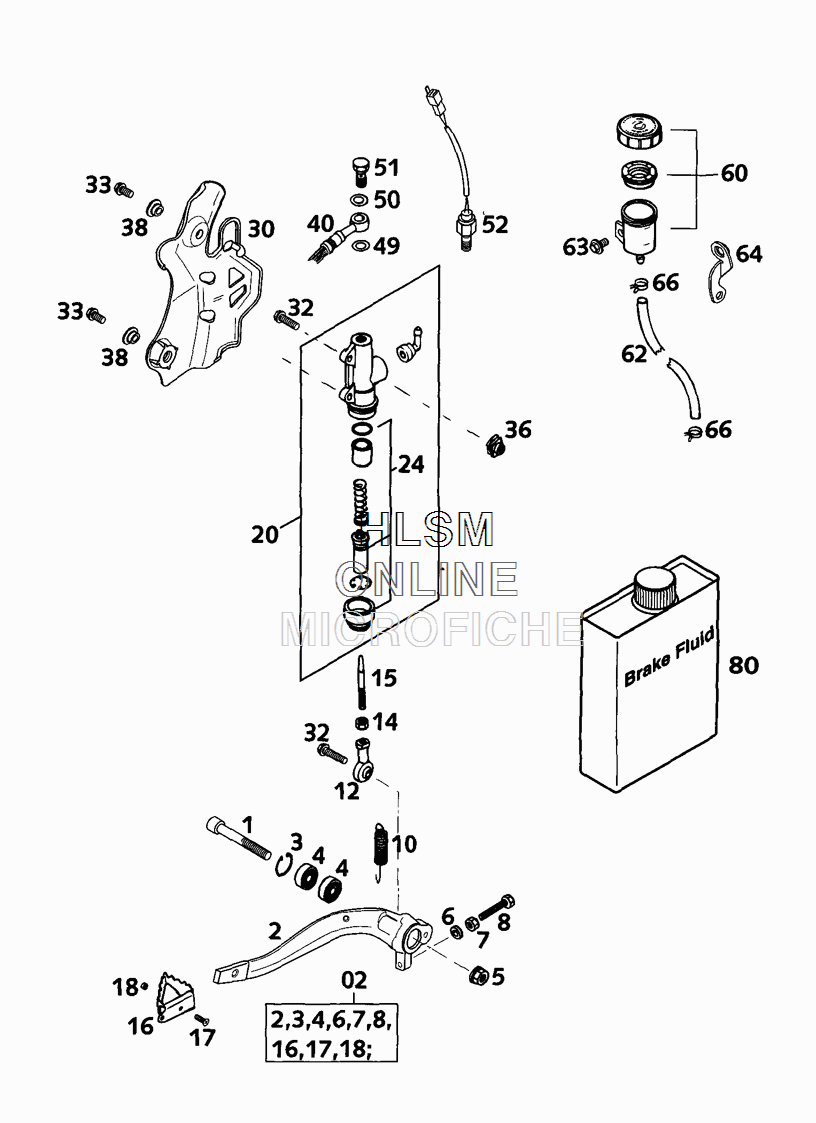

REAR BRAKE CONTROL для Ktm 520 MXC Racing - 2001 года выпуска
-
№АртикулНазвание
-
10912080603 AH SCREW DIN0912-M 8X60AH SCREW DIN0912-M 8X60
-
0259003060044 REAR FOOT BRAKE LEVER CPL.REAR FOOT BRAKE LEVER CPL.
-
30472022100 CIRCLIP DIN0472-22X1CIRCLIP DIN0472-22X1
-
40625006087 GROOVED BALL BEAR.08 2RS C3GROOVED BALL BEAR.08 2RS C3
-
554310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
612011016000 WASHER X 12 X 3WASHER X 12 X 3
-
70934060003 HEXAGON NUT DIN0934-MHEXAGON NUT DIN0934-M
-
80933060353 HH SCREW DIN0933-MX35HH SCREW DIN0933-MX35
-
1054603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
1254603069000 SWIVEL HEAD M6 FOOT BRAKELEVERSWIVEL HEAD M6 FOOT BRAKELEVER
-
140934060003 HEXAGON NUT DIN0934-MHEXAGON NUT DIN0934-M
-
1554603068000 PRESSURE ROD ALUPRESSURE ROD ALU
-
1654603060150 STEP PLATE FOR BRAKE LEVERSTEP PLATE FOR BRAKE LEVER
-
170966050203 OVAL HEAD SCREW DIN0966-M 5X20OVAL HEAD SCREW DIN0966-M 5X20
-
180985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
2050313060100 FOOTBRAKECYL. 13MM NATUREFOOTBRAKECYL. 13MM NATURE
-
2450313061000 REP. KIT PISTON 12MMREP. KIT PISTON 12MM
-
3059003093000 BRAKECYL.PROTECTORBRAKECYL.PROTECTOR
-
320015060203 HH COLLAR SCREW MX20 WS=8HH COLLAR SCREW MX20 WS=8
-
330015060123 HH COLLAR SCREW MX12 WS=BHH COLLAR SCREW MX12 WS=B
-
3650235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
3850308052000 BUSH FOR SPOILERX11X16X5BUSH FOR SPOILERX11X16X5
-
4050313070000 BRAKE HOSE RE.590MMBRAKE HOSE RE.590MM
-
4942013026000 CU-SEAL RING DIN7603-10X16X1,5CU-SEAL RING DIN7603-10X16X1,5
-
5042013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
5150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
5250311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
6054513030044 BRAKE FLUID RESERVOIRBRAKE FLUID RESERVOIR
-
6258007016101 HOSE FOR RESERVOIRX1,5HOSE FOR RESERVOIRX1,5
-
630014060103 HH COLLAR SCREW MX10 WS=8HH COLLAR SCREW MX10 WS=8
-
6459013068000 BRACKET BRAKE FLUID RESERVOIRBRACKET BRAKE FLUID RESERVOIR
-
6658007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
