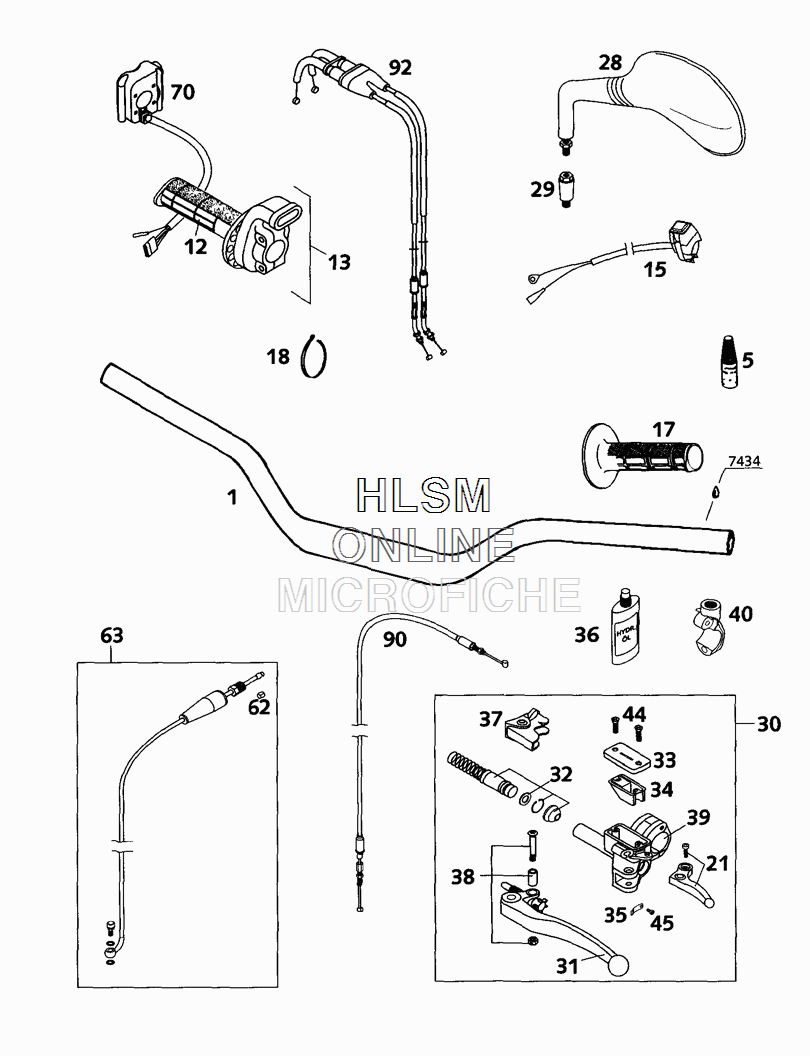

HANDLEBAR W/ CONTROLS для Ktm 520 MXC Racing - 2001 года выпуска
-
№АртикулНазвание
-
159002001000 HANDLEBAR SC,HANDLEBAR SC,
-
56899791 GLUE CYANACRYLAT 7434GLUE CYANACRYLAT 7434
-
1250202003000 TWIST GRIP COVER DOMINO BLACKTWIST GRIP COVER DOMINO BLACK
-
1359002010200 THROTTLE GRIP CPL.THROTTLE GRIP CPL.
-
1550311089000 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
1750202052000 FIXED GRIP DOMINO BLACKFIXED GRIP DOMINO BLACK
-
1844011076200 CABLE TIE 200MMCABLE TIE 200MM
-
1844011076100 CABLE TIE 100MMCABLE TIE 100MM
-
2159002047000 DECO.LEVER CPL.DECO.LEVER CPL.
-
2858412040000 MIRROR L/S LC4MIRROR L/S LC4
-
2858412041000 MIRROR R/S LC4MIRROR R/S LC4
-
2958412040050 SUPPORT FOR MIRRORSUPPORT FOR MIRROR
-
3059002030000 MASTERCYLINDER CPL.RACINGMASTERCYLINDER CPL.RACING
-
3150302031000 CLUTCH LEVER CPL.CLUTCH LEVER CPL.
-
3150302031100 CLU.LEVER SHORT CPL. 2TCLU.LEVER SHORT CPL. 2T
-
3259002032000 REP.KIT PISTON 9,5MMREP.KIT PISTON 9,5MM
-
3359002033000 COVER HYD.CLUTCHCOVER HYD.CLUTCH
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3550302035000 SPRING PLATE FOR LEVERSPRING PLATE FOR LEVER
-
3650302036000 OIL FOR HYD.CLUTCH 50MLOIL FOR HYD.CLUTCH 50ML
-
3750302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
3950302030150 CLAMP WITH PINCLAMP WITH PIN
-
4059002044000 CLAMP MIRROR WITH PIN M10X1,25CLAMP MIRROR WITH PIN M10X1,25
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
450984030063 AH SCREW DIN7984-M 3XAH SCREW DIN7984-M 3X
-
6250332063050 SELF CUTTING RING HYDR.PIPESELF CUTTING RING HYDR.PIPE
-
6359032063000 PIPE KIT CPLPIPE KIT CPL
-
7059011074000 START-STOP TIP SWITCH CPL. (USA)START-STOP TIP SWITCH CPL. (USA)
-
7059011074200 START-STOP TIP SWITCH CPL. (AUS/EURO)START-STOP TIP SWITCH CPL. (AUS/EURO)
-
9059002094000 DECOMPR. CABLEDECOMPR. CABLE
-
9259002091200 THR.CABLEOPEN-CLOSETHR.CABLEOPEN-CLOSE
