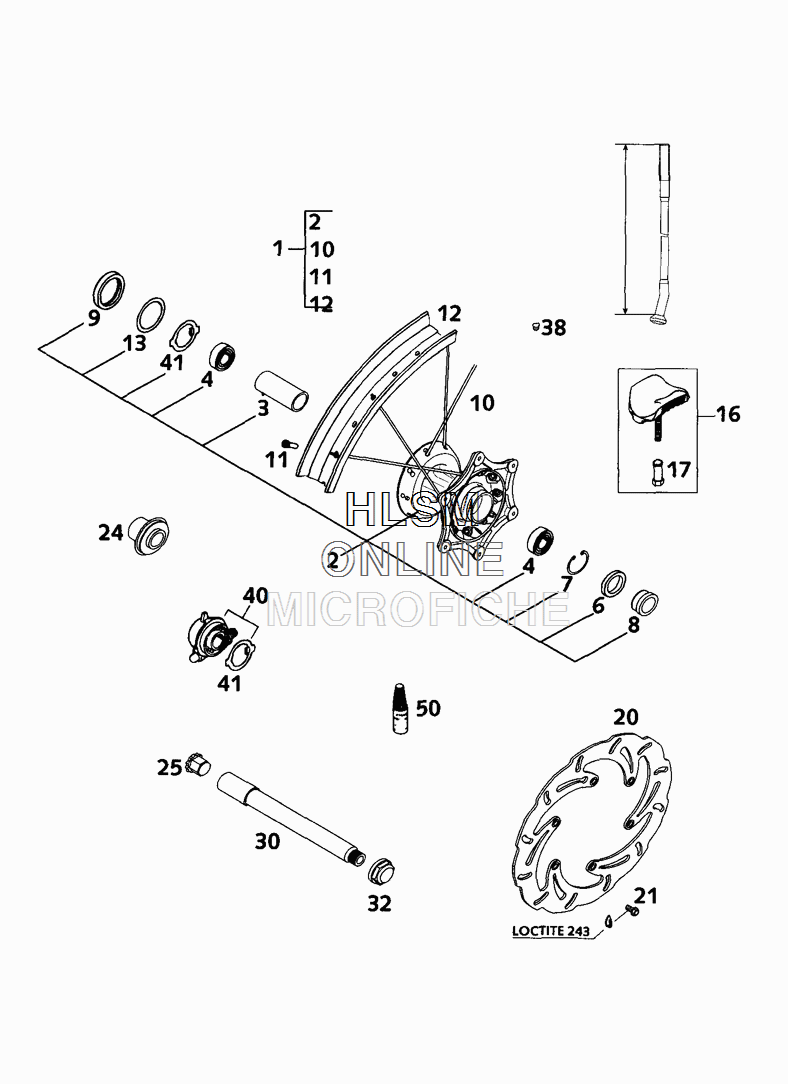

FRONT WHEEL для Ktm 520 MXC Racing - 2001 года выпуска
-
№АртикулНазвание
-
150309001244 FRONTWHEEL 1,6X21FRONTWHEEL 1,6X21
-
250309010144 FRONT HUB CPL.FRONT HUB CPL.
-
350309011100 BEAR. SPACERTUBE 20,5X25X63,3BEAR. SPACERTUBE 20,5X25X63,3
-
40625069047 GROOV.BALL BEAR.NSK6904 2RSRC3GROOV.BALL BEAR.NSK6904 2RSRC3
-
60760263770 SHAFT SEAL RING 26X37X7 ASLSHAFT SEAL RING 26X37X7 ASL
-
70472037154 LOCK RING DIN0472-37X1,5LOCK RING DIN0472-37X1,5
-
850309012000 SPACER BUSHING 20X26X27,8SPACER BUSHING 20X26X27,8
-
90760405270 SHAFT SEAL RING 40X52X7 BSHAFT SEAL RING 40X52X7 B
-
1050309071230 SPOKE M4,5X230-15G 21 DDESPOKE M4,5X230-15G 21 DDE
-
1150309072000 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
1254609070200 FRONT RIM 1,6X21 DIDFRONT RIM 1,6X21 DID
-
1358111054000 WASHER 40 X 52 X 0,15WASHER 40 X 52 X 0,15
-
1651009100100 RIM LOCK VM1 (1,60)RIM LOCK VM1 (1,60)
-
1750310090050 NUT WHEEL HOLDERNUT WHEEL HOLDER
-
2050309060000 BRAKE DISC FRONT D=260MMBRAKE DISC FRONT D=260MM
-
2159009062013 SPECIAL SCREW M6X13 WS810.9SPECIAL SCREW M6X13 WS810.9
-
2450309019100 SPACER BUSHING FOR FRONT WHEELSPACER BUSHING FOR FRONT WHEEL
-
2550309081150 HANDLE FOR FRONT AXLE WS=21HANDLE FOR FRONT AXLE WS=21
-
3050309081200 SWINGARM BOLT USD43 185MMSWINGARM BOLT USD43 185MM
-
3250309082100 AXLE NUT FRONT M16X1,5/SW27AXLE NUT FRONT M16X1,5/SW27
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
4050314050000 SPEEDOMETER DRIVE 748220 (3.0)SPEEDOMETER DRIVE 748220 (3.0)
-
4150314053000 DRIV.DOG F.SPEEDOM.DRIVEDRIV.DOG F.SPEEDOM.DRIVE
-
506899785 LOCTITE 243 BLUECCMLOCTITE 243 BLUECCM
