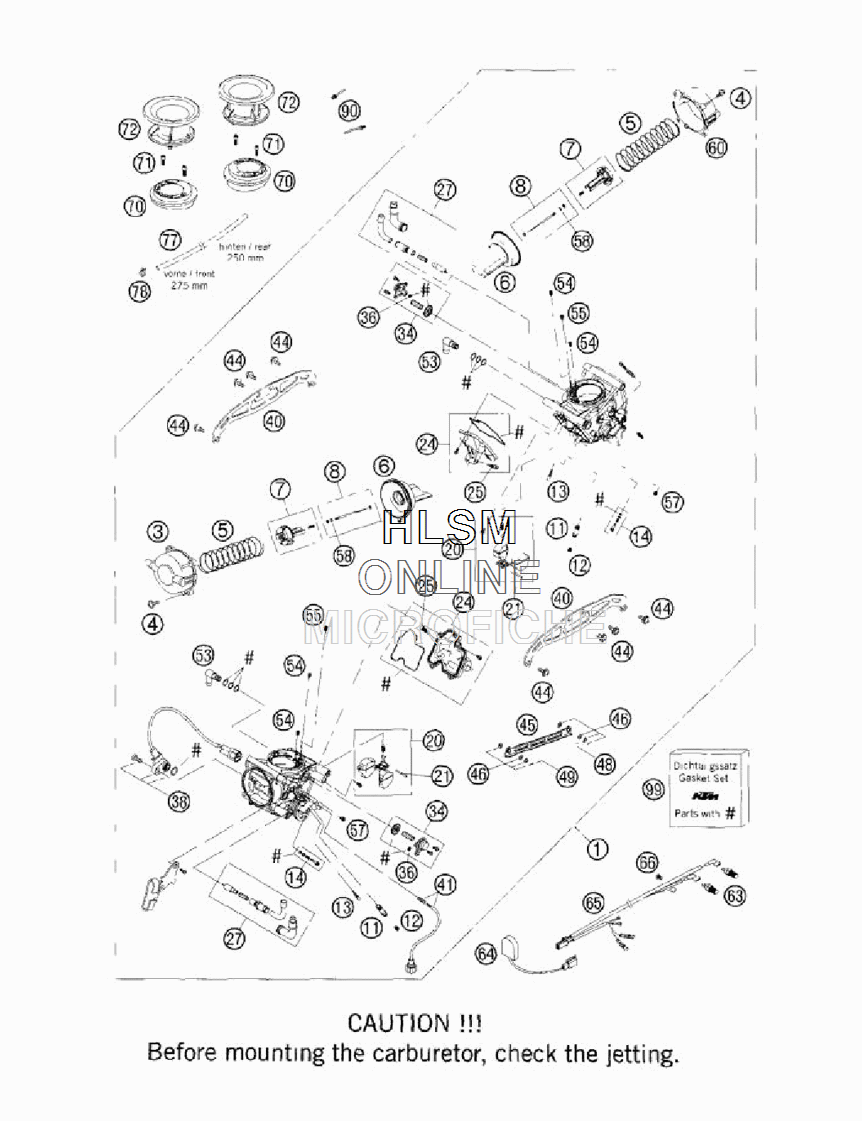

CARBURETOR KEIHIN CVRD43 для Ktm 950 ADVENTURE (S) - 2005 года выпуска

№

Артикул

Название
1

60031001000 CARBURETOR CPL.

CARBURETOR CPL.

0 ₽
1

60031001100 CARBURETOR CPL. USA CVRD 43

CARBURETOR CPL. USA CVRD 43

170 ₽
3

60031027000 DIAPHRAGM COV. KEIHIN FRONT

DIAPHRAGM COV. KEIHIN FRONT

0 ₽
3

60031127000 DIAPHRAGM C. FR/RE W. O. EPC-C.

DIAPHRAGM C. FR/RE W. O. EPC-C.

6 060 ₽
4

60031028000 SCREW KEIHIN

SCREW KEIHIN

590 ₽
5

60031030000 SPRING KEIHIN

SPRING KEIHIN

2 810 ₽
6

60031035000 VACUUM PISTON CPL.

VACUUM PISTON CPL.

20 360 ₽
7

60031032000 JET NEEDLE HOLDER CPL.

JET NEEDLE HOLDER CPL.

12 500 ₽
8

60031034000 JET NEEDLE KEIHIN CPL. NDFB

JET NEEDLE KEIHIN CPL. NDFB

11 830 ₽
11

60031083000 JET HOLDER

JET HOLDER

3 510 ₽
12

60031023150 MAIN JET 150 KEIHIN

MAIN JET 150 KEIHIN

0 ₽
12

60031023155 MAIN JET 155 KEIHIN

MAIN JET 155 KEIHIN

3 450 ₽
12

60031023160 MAIN JET 160 KEIHIN

MAIN JET 160 KEIHIN

3 450 ₽
12

60031023165 MAIN JET 165 KEIHIN

MAIN JET 165 KEIHIN

3 480 ₽
12

60031023170 MAIN JET 170 KEIHIN

MAIN JET 170 KEIHIN

3 830 ₽
13

60031007042 IDLE JET 42 KEIHIN

IDLE JET 42 KEIHIN

5 520 ₽
14

60031017000 ADJUST SCREW CPL.

ADJUST SCREW CPL.

2 860 ₽
20

60031009000 FLOAT CPL

FLOAT CPL

14 580 ₽
21

57331008000 ARM PIN FLOAT

ARM PIN FLOAT

470 ₽
24

60031011044 FLOAT CHAMBER CPL.

FLOAT CHAMBER CPL.

23 480 ₽
25

57331155000 DRAIN SCREW FLOAT CHAMBER

DRAIN SCREW FLOAT CHAMBER

1 380 ₽
27

60031048000 CHOKE CPL.

CHOKE CPL.

20 300 ₽
34

60031090000 AIR CUT VALVE

AIR CUT VALVE

16 960 ₽
36

59031058000 U-RING

U-RING

640 ₽
38

60031077000 THROTTLE POSITION SENSOR CPL.

THROTTLE POSITION SENSOR CPL.

35 370 ₽
40

60031091000 CARBURETOR CONNECTING PLATE

CARBURETOR CONNECTING PLATE

9 860 ₽
41

60031025000 STOP SCREW CPL.

STOP SCREW CPL.

24 810 ₽
44

60031094000 SCREW KEIHIN

SCREW KEIHIN

1 140 ₽
45

60031056000 LINK LEVER

LINK LEVER

12 330 ₽
46

60031087000 LINK LEVER FIXING

LINK LEVER FIXING

2 080 ₽
48

57331087000 WASHER LINK LEVER

WASHER LINK LEVER

350 ₽
49

0094010103 SPLIT PIN 1,0X10

SPLIT PIN 1,0X10

650 ₽
53

60031013000 HOSE CONNECTOR

HOSE CONNECTOR

20 630 ₽
54

60031037040 AIR JET 40 KEIHIN

AIR JET 40 KEIHIN

4 030 ₽
54

60031037070 AIR JET 70 KEIHIN

AIR JET 70 KEIHIN

3 710 ₽
54

60031037080 AIR JET 80 KEIHIN

AIR JET 80 KEIHIN

3 170 ₽
54

60031037090 AIR JET 90 KEIHIN

AIR JET 90 KEIHIN

4 350 ₽
54

60031037100 AIR JET 100 KEIHIN

AIR JET 100 KEIHIN

4 030 ₽
55

60031047050 AIR JET 50 KEIHIN

AIR JET 50 KEIHIN

3 170 ₽
57

60031051068 STARTER JET 68 KEIHIN

STARTER JET 68 KEIHIN

3 920 ₽
58

54531629000 CLIP FOR JET NEEDLE

CLIP FOR JET NEEDLE

680 ₽
60

60031027100 DIAPHRAGM COV. KEIHIN REAR

DIAPHRAGM COV. KEIHIN REAR

0 ₽
60

60031127000 DIAPHRAGM C. FR/RE W. O. EPC-C.

DIAPHRAGM C. FR/RE W. O. EPC-C.

6 060 ₽
63

60031003000 HEATING ELEMENT CARB. HEAT.

HEATING ELEMENT CARB. HEAT.

4 210 ₽
64

60031004000 TEMPERATURE SENSOR

TEMPERATURE SENSOR

4 380 ₽
65

60031005000 WIRING HARNESS CARB. HEAT.

WIRING HARNESS CARB. HEAT.

3 120 ₽
66

0933040063 HH SCREW DIN933 M4X6

HH SCREW DIN933 M4X6

110 ₽
70

60031041000 CARBURETOR TRUMPET SUPPORT

CARBURETOR TRUMPET SUPPORT

870 ₽
71

0912040163 AH SCREW DIN0912-M 4X16

AH SCREW DIN0912-M 4X16

290 ₽
72

60031040000 CARBURETOR TRUMPET

CARBURETOR TRUMPET

1 900 ₽
77

60007116001 HOSE 6X12 PER METER (BREATHING HOSE)

HOSE 6X12 PER METER (BREATHING HOSE)

3 710 ₽
78

58031005000 CLAMP YDNAC 10128 12MM

CLAMP YDNAC 10128 12MM

760 ₽
90

60031029337 SLIDE STOP M5

SLIDE STOP M5

0 ₽
99

60031099000 GASKET SET KEIHIN

GASKET SET KEIHIN

51 960 ₽
