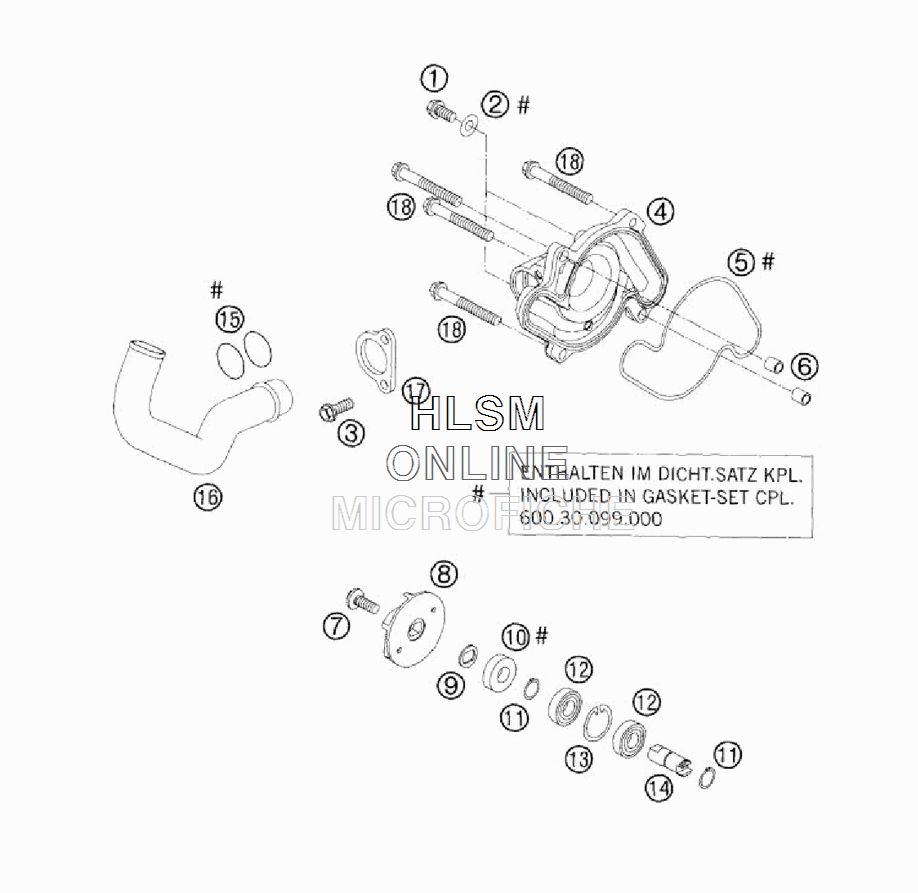

WATER PUMP для Ktm 950 ADVENTURE (S) - 2005 года выпуска

№

Артикул

Название
1

0015060103 HH COLLAR SCREW M 6X10 WS=8

HH COLLAR SCREW M 6X10 WS=8

500 ₽
2

0603061001 CU-SEAL RING DIN7603-6X10X1

CU-SEAL RING DIN7603-6X10X1

320 ₽
3

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
4

60035052000 WATER-PUMP COVER

WATER-PUMP COVER

14 290 ₽
5

60035053000 WATER-PUMP GASKET

WATER-PUMP GASKET

1 550 ₽
6

59030023000 DOWEL 6X8X11,5

DOWEL 6X8X11,5

910 ₽
7

0014060153 HH COLLAR SCREW M 6X15 WS=8

HH COLLAR SCREW M 6X15 WS=8

560 ₽
8

60035055100 WATER-PUMP WHEEL LC8

WATER-PUMP WHEEL LC8

1 460 ₽
9

60035055150 FORM WASHER 16X1 NIRO

FORM WASHER 16X1 NIRO

140 ₽
10

0760123072 SHAFT SEAL RING 12X30X7 VITON

SHAFT SEAL RING 12X30X7 VITON

3 360 ₽
11

0471120010 CIRCLIP DIN0471-12X1

CIRCLIP DIN0471-12X1

30 ₽
12

0625069010 GROOVED BALL BEARING 6901V C3

GROOVED BALL BEARING 6901V C3

5 490 ₽
13

0472240120 CIRCLIP DIN472 D=24X1,2

CIRCLIP DIN472 D=24X1,2

120 ₽
14

60035054000 WATER-PUMP SHAFT

WATER-PUMP SHAFT

16 040 ₽
15

0770250030 O-RING 25,00X3,00 NBR 70

O-RING 25,00X3,00 NBR 70

620 ₽
16

60035021000 ALUMINUM TUBE WATER-PUMP

ALUMINUM TUBE WATER-PUMP

9 700 ₽
17

60035021050 FIXING CLAMP WATER-P. TUBE

FIXING CLAMP WATER-P. TUBE

2 280 ₽
18

0015060603 HH COLLAR SCREW M 6X60 WS=8

HH COLLAR SCREW M 6X60 WS=8

560 ₽
