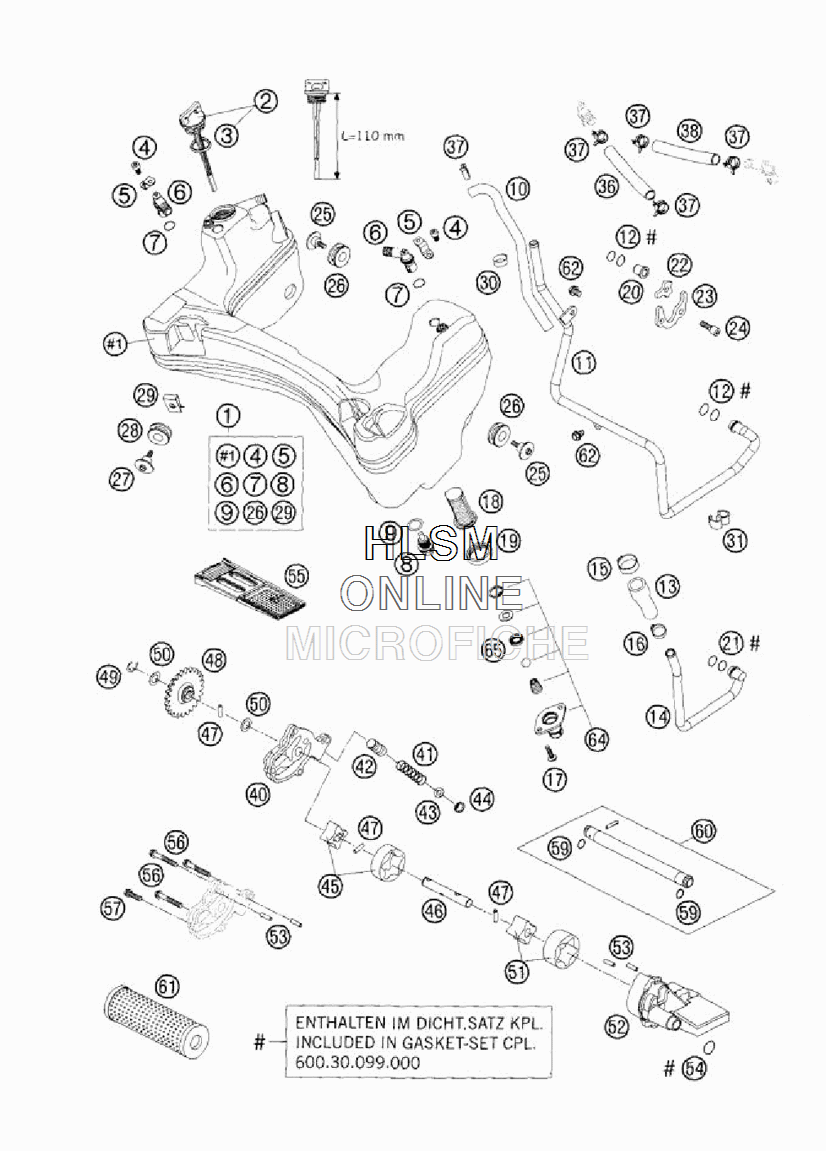

LUBRICATING SYSTEM для Ktm 950 ADVENTURE (S) - 2005 года выпуска
-
№АртикулНазвание
-
160038081000 OIL TANK CPL.OIL TANK CPL.
-
260030020100 OIL DIPSTICK CPL. W. O-RINGOIL DIPSTICK CPL. W. O-RING
-
30770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
40912050103 AH SCREW DIN0912-M 5X10AH SCREW DIN0912-M 5X10
-
560038082050 ANGLE CONNECTOR BRACKET PANELANGLE CONNECTOR BRACKET PANEL
-
660038082000 ANGLE CONNECTOR LC8ANGLE CONNECTOR LC8
-
70770080020 O-RING 8X2 SILICONEO-RING 8X2 SILICONE
-
858030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
958038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
1060038061003 PREFORMED HOSE D9X3,5PREFORMED HOSE D9X3,5
-
1160038061044 OIL PIPE "B"OIL PIPE "B"
-
120770090021 O-RING 9X2 VITONO-RING 9X2 VITON
-
1360038034100 PRE-FORMED HOSE 10X3,5PRE-FORMED HOSE 10X3,5
-
1460038060044 OIL PIPE "A"OIL PIPE "A"
-
1500050256706 VARIABLE ONE-EAR CLAMP 25,6MMVARIABLE ONE-EAR CLAMP 25,6MM
-
1600050198706 VARIABLE ONE-EAR CLAMP 19,8MMVARIABLE ONE-EAR CLAMP 19,8MM
-
170015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
1860038017000 OIL SCREEN FINISHEDOIL SCREEN FINISHED
-
1960038018000 GASKET FOR OIL FILTER HNBRGASKET FOR OIL FILTER HNBR
-
2060038024000 PLUG 10MM LC8PLUG 10MM LC8
-
210770110021 O-RING 11X2 VITONO-RING 11X2 VITON
-
2260038037000 RETAINING PLATE 2 LC8RETAINING PLATE 2 LC8
-
2360038036000 RETAINING PLATE 1 LC8RETAINING PLATE 1 LC8
-
240912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
2560038083000 SCREW OIL TANK FIXINGSCREW OIL TANK FIXING
-
2654605068000 EXHAUST BRACKET RUBBER BLACKEXHAUST BRACKET RUBBER BLACK
-
2760035001000 SCREW RADIATOR BRACKET M6SCREW RADIATOR BRACKET M6
-
2841001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
2954603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
3000050185706 VARIABLE ONE-EAR CLAMP 18,5MMVARIABLE ONE-EAR CLAMP 18,5MM
-
3160038039000 DISTANCE HOLDER 10/10 BLACKDISTANCE HOLDER 10/10 BLACK
-
3660038059130 OIL TANK BREATHING HOSE R/SOIL TANK BREATHING HOSE R/S
-
3700049160121 CLAMP STD DN16CLAMP STD DN16
-
3860038059083 OIL TANK BREATHING HOSE L/SOIL TANK BREATHING HOSE L/S
-
4060038010000 PRESSURE PUMP CASEPRESSURE PUMP CASE
-
4160038026000 CONTROL SPRING LC8 3,5 BARCONTROL SPRING LC8 3,5 BAR
-
4260038028000 CONTROL PISTON LC8CONTROL PISTON LC8
-
430988060121 WASHER 6X12X1 HRC 40-45WASHER 6X12X1 HRC 40-45
-
440472012010 CIRCLIP DIN0472 J12CIRCLIP DIN0472 J12
-
4560038011000 ROTOR-SET PRESSURE PUMPROTOR-SET PRESSURE PUMP
-
4660038002000 OIL PUMP SHAFTOIL PUMP SHAFT
-
470402041580 NEEDLE ROLLER NRB 4X15,8 G2NEEDLE ROLLER NRB 4X15,8 G2
-
4860038001024 OIL PUMP GEAR 24-TOIL PUMP GEAR 24-T
-
490799080000 TAB WASHER DIN6799 RS8TAB WASHER DIN6799 RS8
-
5060038007010 WASHER 10X16X0,5WASHER 10X16X0,5
-
5160038009000 ROTOR-SET SUCTION PUMPROTOR-SET SUCTION PUMP
-
5260038008000 SUCTION PUMP CASESUCTION PUMP CASE
-
530402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
540770133024 O-RING 13,3X2,4 VITONO-RING 13,3X2,4 VITON
-
5560038016000 OIL SCREENOIL SCREEN
-
560015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
570015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
590770010010 O-RING 10,00X1,00 NBR 70 SHO-RING 10,00X1,00 NBR 70 SH
-
6060030065100 OIL INJECTION TUBE GEAR 05OIL INJECTION TUBE GEAR 05
-
6160038015000 OIL FILTEROIL FILTER
-
620015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
6460038060002 OIL TANK VALVE CPL.OIL TANK VALVE CPL.
-
650760101842 SHAFT SEAL R.10X18X4 B-VITONSHAFT SEAL R.10X18X4 B-VITON
