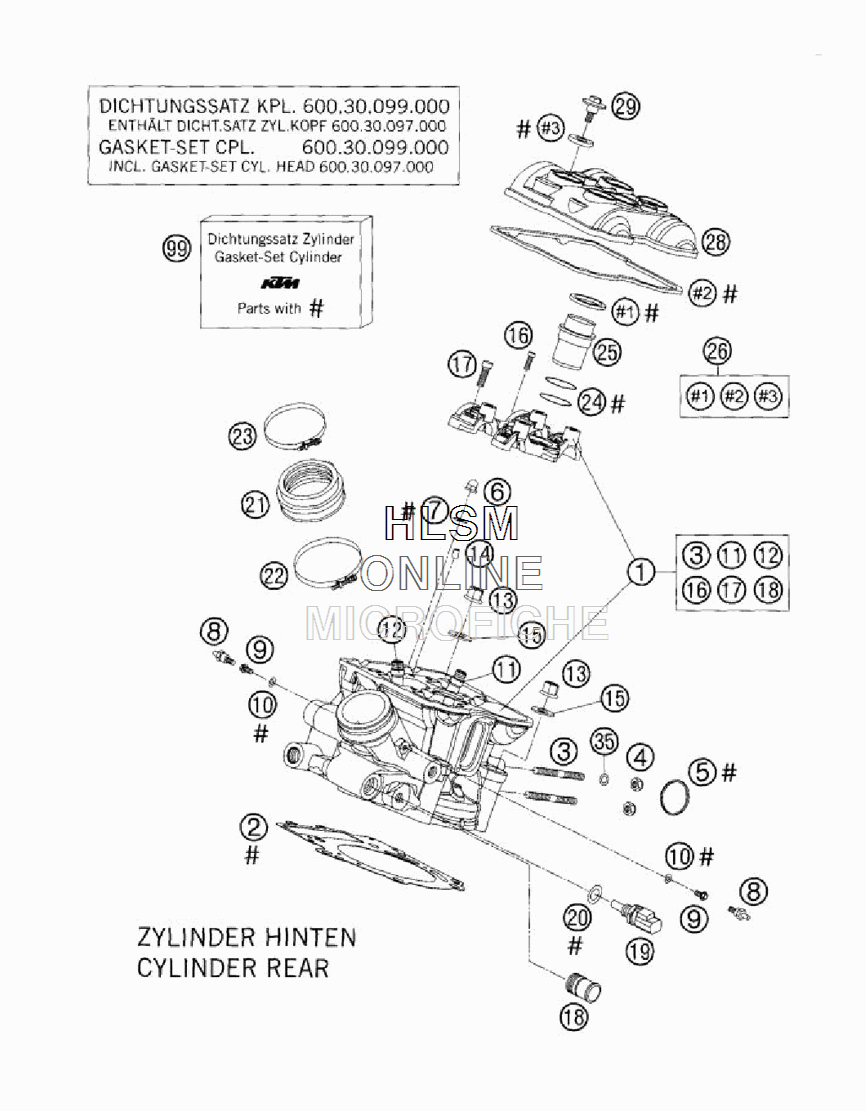

CYLINDER HEAD REAR для Ktm 950 ADVENTURE (S) - 2005 года выпуска
-
№АртикулНазвание
-
160036120144 CYLINDER HEAD CPL. REARCYLINDER HEAD CPL. REAR
-
260030036000 CYLINDER HEAD GASKET 0,5 101 MMCYLINDER HEAD GASKET 0,5 101 MM
-
30835080165 STUD M 8X16 10.9STUD M 8X16 10.9
-
451010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
560005005000 GASKET 03GASKET 03
-
60587060000 CAP NUT M6 DIN1587 02CAP NUT M6 DIN1587 02
-
70125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
858336020190 VACUUM CONNECTION M6X1VACUUM CONNECTION M6X1
-
861036023000 VACUUM CONNECTION 05 (USA)VACUUM CONNECTION 05 (USA)
-
90015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
100603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
1160036026000 VALVE GUIDE EXHAUSTVALVE GUIDE EXHAUST
-
1260036025000 VALVE GUIDE INTAKEVALVE GUIDE INTAKE
-
1360036078200 COLLAR NUT M 10 WS=13COLLAR NUT M 10 WS=13
-
140402050980 NEEDLE ROLLER DIN5402 5X9,8NEEDLE ROLLER DIN5402 5X9,8
-
1560036078050 SHIM 10,2X19X1,5MMSHIM 10,2X19X1,5MM
-
160912060255 AH SCREW DIN0912-M 6X25 10.9AH SCREW DIN0912-M 6X25 10.9
-
170984080305 AH SCREW DIN7984-M 8X30 10.9AH SCREW DIN7984-M 8X30 10.9
-
1858030010100 HOSE CONNECTOR M20X1,5 SPLICE.HOSE CONNECTOR M20X1,5 SPLICE.
-
1960011252000 TEMPERAT.-SENSOR WATER LC8TEMPERAT.-SENSOR WATER LC8
-
200770100020 O-RING 10,00X2,00 SILCONEO-RING 10,00X2,00 SILCONE
-
2160036044000 INTAKE BOOTINTAKE BOOT
-
2260036047100 HOSE CLAMP GEMI 62 MMHOSE CLAMP GEMI 62 MM
-
2359030061100 HOSE CLAMP GEMI 56 MMHOSE CLAMP GEMI 56 MM
-
240770298178 O-RING 29,87X1,78 VITONO-RING 29,87X1,78 VITON
-
2560036075000 INSERT SPARK-PLUG SHAFT LC8INSERT SPARK-PLUG SHAFT LC8
-
2660036099000 VALVE COVER GASKET SET FR+RRVALVE COVER GASKET SET FR+RR
-
2860036152000 VALVE COVER REARVALVE COVER REAR
-
2960036052020 COLLAR SCREW M 6 WS=10 03COLLAR SCREW M 6 WS=10 03
-
350125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
9960030097000 GASKET SET CYL. HEAD CPL. 03 (CYLINDER FRONT + REAR)GASKET SET CYL. HEAD CPL. 03 (CYLINDER FRONT + REAR)
