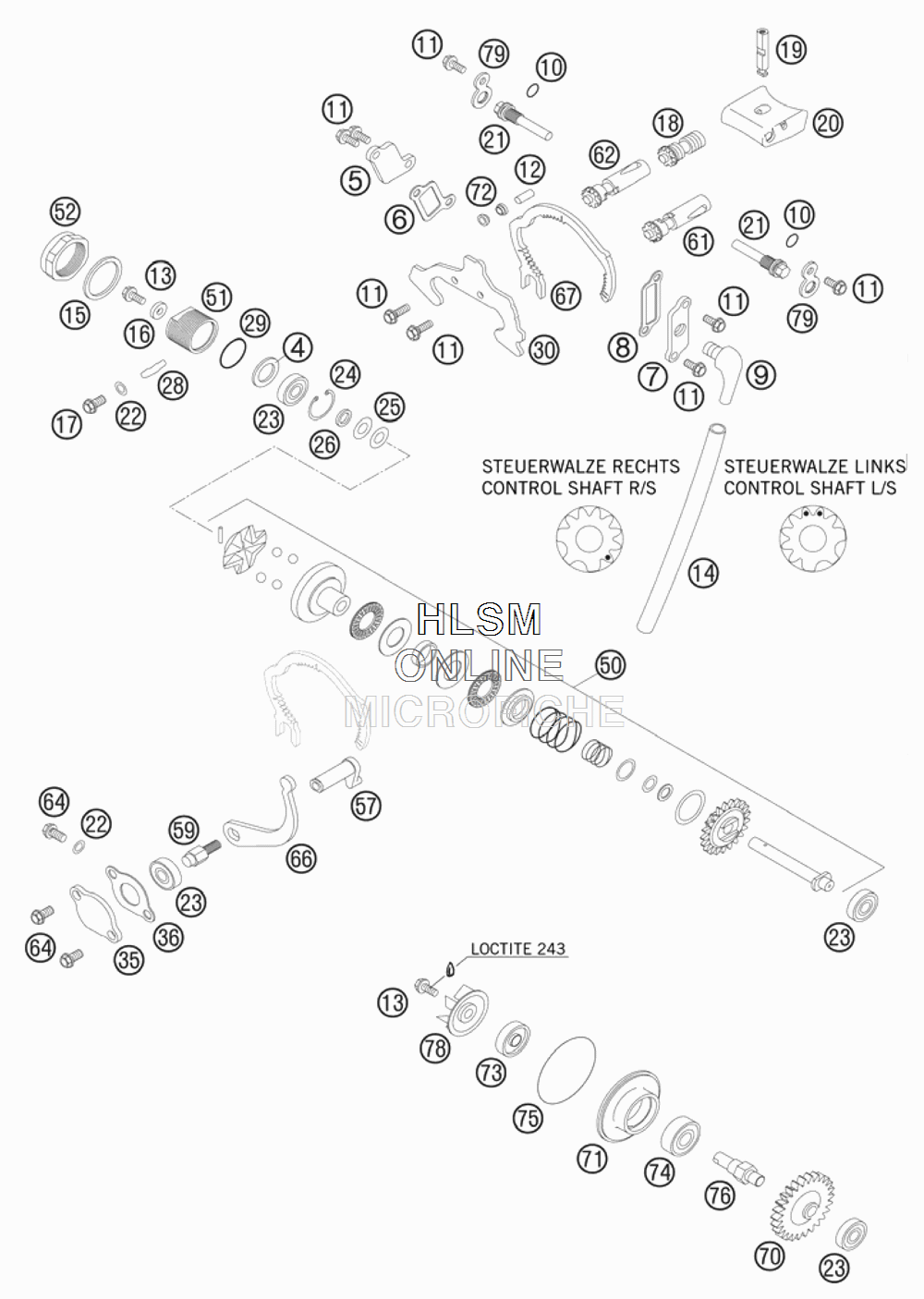

EXHAUST CONTROL для Ktm 200 XC - 2008 года выпуска
-
№АртикулНазвание
-
449033031015 STOP DISK 14,2X22X1,5STOP DISK 14,2X22X1,5
-
550337005000 SIDE COVER R/SSIDE COVER R/S
-
650337006000 GASKET SIDE COVER R/SGASKET SIDE COVER R/S
-
750337007100 SIDE COVER LEFT M10SIDE COVER LEFT M10
-
850337008000 GASKET SIDE COVER L/SGASKET SIDE COVER L/S
-
950330022000 ANGLE PIEC 90 DEGREE M10X1ANGLE PIEC 90 DEGREE M10X1
-
100770008020 O-RING 8,00X2,00 NBRO-RING 8,00X2,00 NBR
-
110014050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
120402051600 NEEDLE ROL. DIN5402 NRB 5X15,8NEEDLE ROL. DIN5402 NRB 5X15,8
-
130015050123 HH COLLAR SCREW M 5X12HH COLLAR SCREW M 5X12
-
1450332095200 TUBE RUBBER 6X9 DVOHTUBE RUBBER 6X9 DVOH
-
150603262322 CU-SEAL RING DIN7603-26X32X2CU-SEAL RING DIN7603-26X32X2
-
1650337050064 WASHER 5,2 X 12 X 3WASHER 5,2 X 12 X 3
-
170015060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
1852337018044 ECCENTRIC FOR CRANKBOLTECCENTRIC FOR CRANKBOLT
-
1952337019000 CRANK BOLT F.CONTROL FL.CRANK BOLT F.CONTROL FL.
-
2052337020000 CONTROL FLAPCONTROL FLAP
-
2151237021000 AXLE FOR CONTRIL FLAPAXLE FOR CONTRIL FLAP
-
220603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
230625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
240472022100 CIRCLIP DIN0472-22X1CIRCLIP DIN0472-22X1
-
250093821606 WASHER DIN2093-8,2X16X0,6WASHER DIN2093-8,2X16X0,6
-
2650337050063 SPACER BUSHING 8X12X2,3SPACER BUSHING 8X12X2,3
-
2800099300011 O-RINGSTRING 4MM NBR 70 PER/MO-RINGSTRING 4MM NBR 70 PER/M
-
290770160030 O-RING 16,00X3,00 NBR 70O-RING 16,00X3,00 NBR 70
-
3052337030000 SHEET METAL GUIDE 3MMSHEET METAL GUIDE 3MM
-
3550337035000 CLOSING COVERCLOSING COVER
-
3650337035050 CLOSING COVER GASKET 1MMCLOSING COVER GASKET 1MM
-
5052337050044 CENTRIFUGAL TIMER CPL.CENTRIFUGAL TIMER CPL.
-
5150337050062 BUSHING HOLDER M 26X1BUSHING HOLDER M 26X1
-
5250337050061 CLOSING NUT M 26X1CLOSING NUT M 26X1
-
5750337057000 CONTROL LEVERCONTROL LEVER
-
5950337059000 CONTROL SHAFT M 6CONTROL SHAFT M 6
-
6152337061144 CONTROL SHAFT CPL.L/S 200CONTROL SHAFT CPL.L/S 200
-
6252337062144 CONTROL SHAFT CPL.R/S 200CONTROL SHAFT CPL.R/S 200
-
640015060123 HH COLLAR SCREW M 6X12HH COLLAR SCREW M 6X12
-
6650337066000 LEVER F. CONTROL SEGMENTLEVER F. CONTROL SEGMENT
-
6752337067000 CONTROL SHAFT SEGMENTCONTROL SHAFT SEGMENT
-
7050335054026 DRIVE WHEEL 26-TDRIVE WHEEL 26-T
-
7150335056000 BUSHING SUPPORT WATER PUMPBUSHING SUPPORT WATER PUMP
-
7250337072000 ROLLER GUIDE 5X6,1X8X4ROLLER GUIDE 5X6,1X8X4
-
730760082472 SHAFT SEAL RING 8X24X7 A DUOSHAFT SEAL RING 8X24X7 A DUO
-
740625060001 BALL BEARING 6000/C3BALL BEARING 6000/C3
-
750770049025 O-RING 49,00X2,50 NBRO-RING 49,00X2,50 NBR
-
7650335054050 WATER PUMP SHAFTWATER PUMP SHAFT
-
7854835005000 WATER PUMP WHEELWATER PUMP WHEEL
-
7950337079000 LOCK METAL SHEET 2MMLOCK METAL SHEET 2MM
