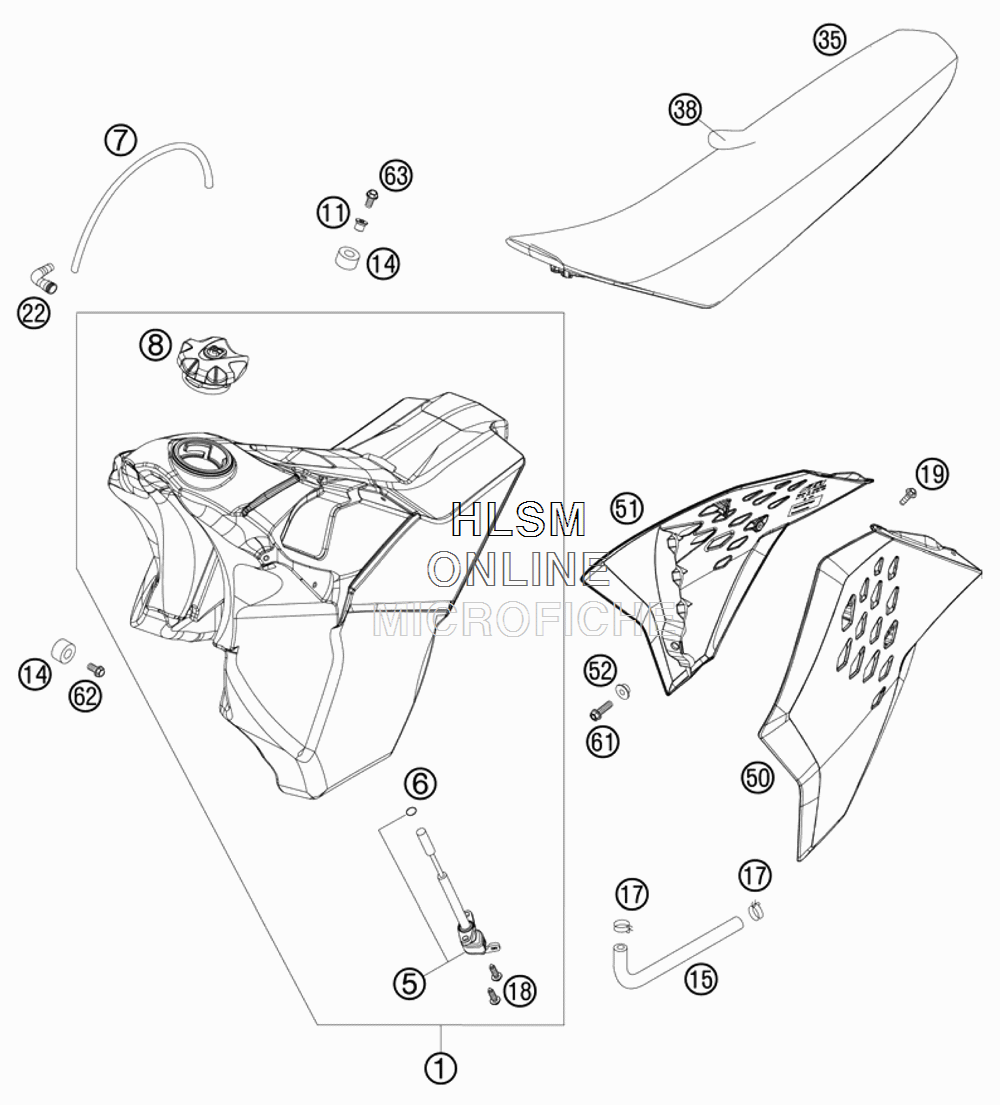

FUEL TANK SEAT SPOILER для Ktm 200 XC - 2008 года выпуска
-
№АртикулНазвание
-
15480721306630 FUEL TANK CPL. BL. 11L 2T XCFUEL TANK CPL. BL. 11L 2T XC
-
554807004000 GAS COCK ON/OFF/RESGAS COCK ON/OFF/RES
-
60770110021 O-RING 11X2 VITONO-RING 11X2 VITON
-
778007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
878007008044 TANK PLUG CPL. EXCTANK PLUG CPL. EXC
-
1177307026000 TANK BUSHINGTANK BUSHING
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1550307016000 FUEL PREFORMED HOSE SXFUEL PREFORMED HOSE SX
-
1758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
180017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
190017060204 EJOT PT SCREW K60X20 ALUEJOT PT SCREW K60X20 ALU
-
2251030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
3577307040000 SEAT SXSEAT SX
-
3877307040050 SEAT COVERSEAT COVER
-
507730805000030C SPOILER L/S BLACK XC;WITH DECALSPOILER L/S BLACK XC;WITH DECAL
-
517730805100030C SPOILER R/S BLACK XC;WITH DECALSPOILER R/S BLACK XC;WITH DECAL
-
5250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
610025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
620025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
630024060273 COLLAR SCREW M6X27COLLAR SCREW M6X27
