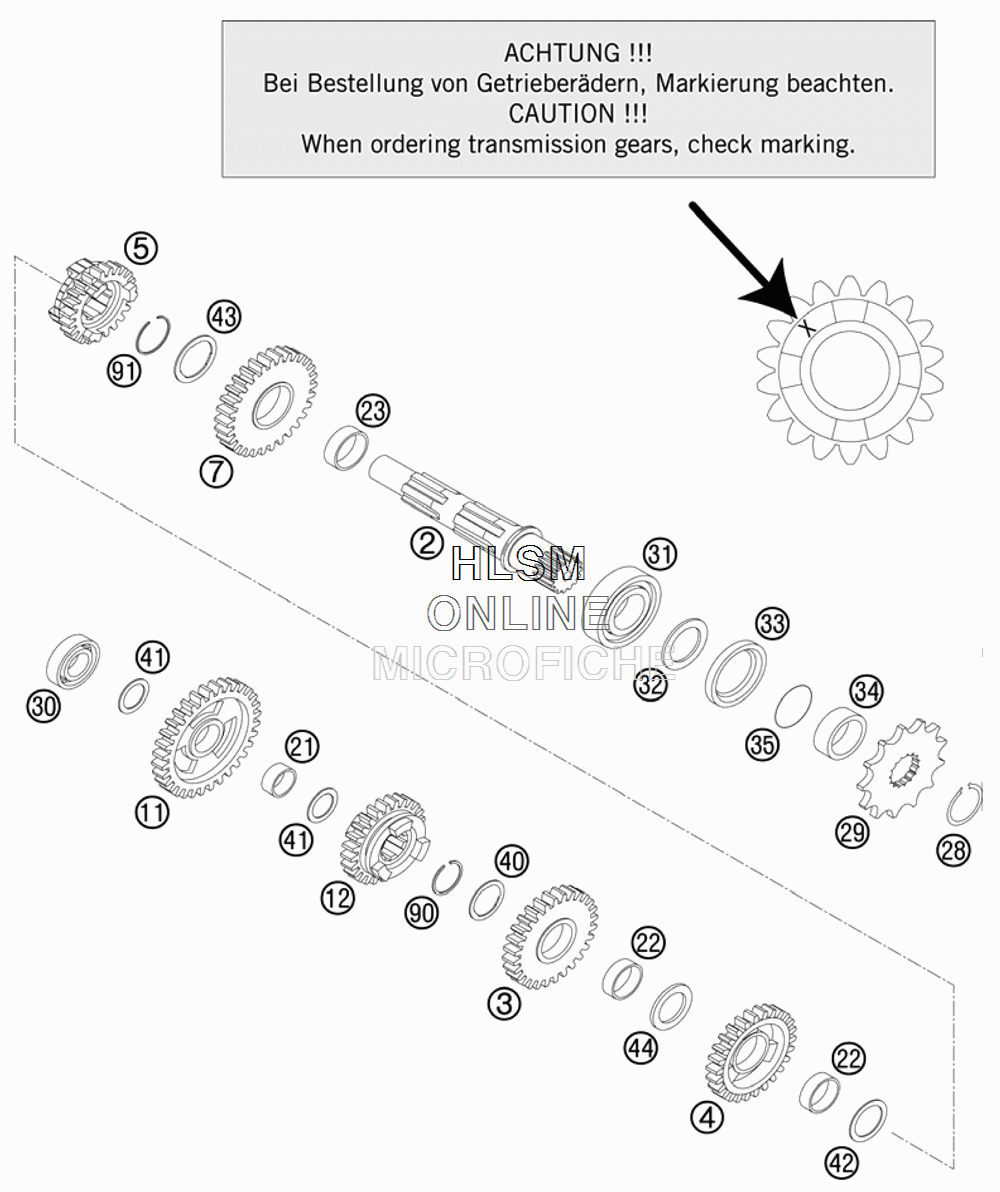

TRANSMISSION - COUNTERSHAFT для Ktm 200 XC - 2008 года выпуска
-
№АртикулНазвание
-
250333002000 COUNTER SHAFTCOUNTER SHAFT
-
350333003100 IDLE G.3RD G.28-T ''3S28H''IDLE G.3RD G.28-T ''3S28H''
-
450333004000 IDLE G.4TH G.26-T ''4S26''IDLE G.4TH G.26-T ''4S26''
-
550333005200 SLIDING G.6TH G.23-T ''6S23''SLIDING G.6TH G.23-T ''6S23''
-
750333006000 IDLER G. 2ND G. 30-T ''2S30''IDLER G. 2ND G. 30-T ''2S30''
-
1150333011000 IDLER G. 1ST G. 32-T ''1S32''IDLER G. 1ST G. 32-T ''1S32''
-
1250333012000 SLIDING G.5TH G.25-T ''5S25''SLIDING G.5TH G.25-T ''5S25''
-
2150333021000 IDLER GEAR BUSHING 17X20X9,7 BIDLER GEAR BUSHING 17X20X9,7 B
-
2250333022000 IDLER GEAR BUSHING 22X25X8,1 CIDLER GEAR BUSHING 22X25X8,1 C
-
2350333023000 IDLER GEAR BUSHING 25X28X9,7 DIDLER GEAR BUSHING 25X28X9,7 D
-
2852033096000 LOCK RING DIN0471-25X1,64SDLOCK RING DIN0471-25X1,64SD
-
2950033029013 SPROCKET 13-TSPROCKET 13-T
-
2950033029014 SPROCKET 14-TSPROCKET 14-T
-
2950033029015 SPROCKET 15-TSPROCKET 15-T
-
300625060031 BALL BEARING 6003 TN9 C4BALL BEARING 6003 TN9 C4
-
310625062058 BALL BEARING 6205 TN9 C3BALL BEARING 6205 TN9 C3
-
3256033020000 STOP RINGSTOP RING
-
330760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
-
3454633014100 SPACER BUSHING 12MMSPACER BUSHING 12MM
-
350770230020 O-RING 23,00X2,00 NBR70O-RING 23,00X2,00 NBR70
-
4050333040000 STOP DISC 22,2X27,8X1 ASTOP DISC 22,2X27,8X1 A
-
4150333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
4250333042000 STOP DISK 22,2X28X1 CSTOP DISK 22,2X28X1 C
-
4350333043000 STOP DISC 25,2X32X1STOP DISC 25,2X32X1
-
4450333044000 STOP DISC 22,2X30X2,5STOP DISC 22,2X30X2,5
-
9050133090000 LOCK RING 22X1,2LOCK RING 22X1,2
-
9152033090100 LOCK RING 25X1,2LOCK RING 25X1,2
