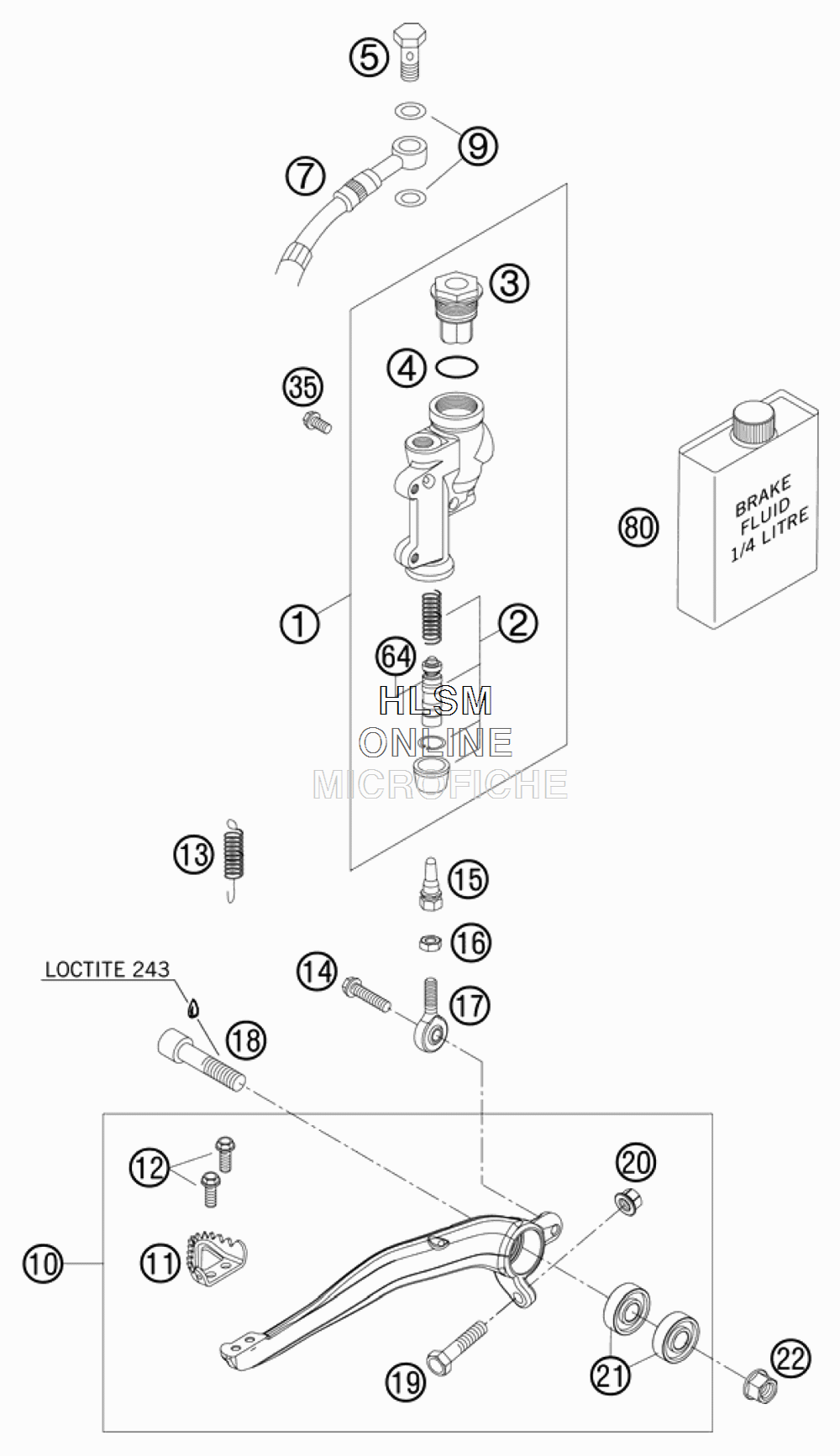

REAR BREAK CONTROL для Ktm 200 XC - 2008 года выпуска
-
№АртикулНазвание
-
154813060100 REAR BRAKE CYLINDER CPL.REAR BRAKE CYLINDER CPL.
-
254813061200 REPAIR KIT PISTON 13MMREPAIR KIT PISTON 13MM
-
354813062100 REAR BRAKE CYL. COVER CPL.REAR BRAKE CYL. COVER CPL.
-
454813063000 FOOT-BRAKE CYL. GASKET SXFOOT-BRAKE CYL. GASKET SX
-
554813020100 HOLLOW SCREW BLACK M10X1X19HOLLOW SCREW BLACK M10X1X19
-
754813070000 BRAKE HOSE REAR 655MMBRAKE HOSE REAR 655MM
-
90603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
1077313050044 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
1154813051000 STEP PLATE FOR BRAKE LEVERSTEP PLATE FOR BRAKE LEVER
-
120025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
1354603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
140025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1554813056000 PUSH RODPUSH ROD
-
160934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1754813055000 SWIVEL HEAD KA6SWIVEL HEAD KA6
-
180912100406 AH SCREW DIN6912 M10X40AH SCREW DIN6912 M10X40
-
1959001037000 SPECIAL SCREW M8X26SPECIAL SCREW M8X26
-
2046030045000 COLLAR NUT M8COLLAR NUT M8
-
210625060002 BALL BEARING SKF 6000-2RS1BALL BEARING SKF 6000-2RS1
-
2254630044000 COLLAR NUT M10COLLAR NUT M10
-
350025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
6454813064200 BELLOWS FOR REPAIR KITBELLOWS FOR REPAIR KIT
-
8000062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
