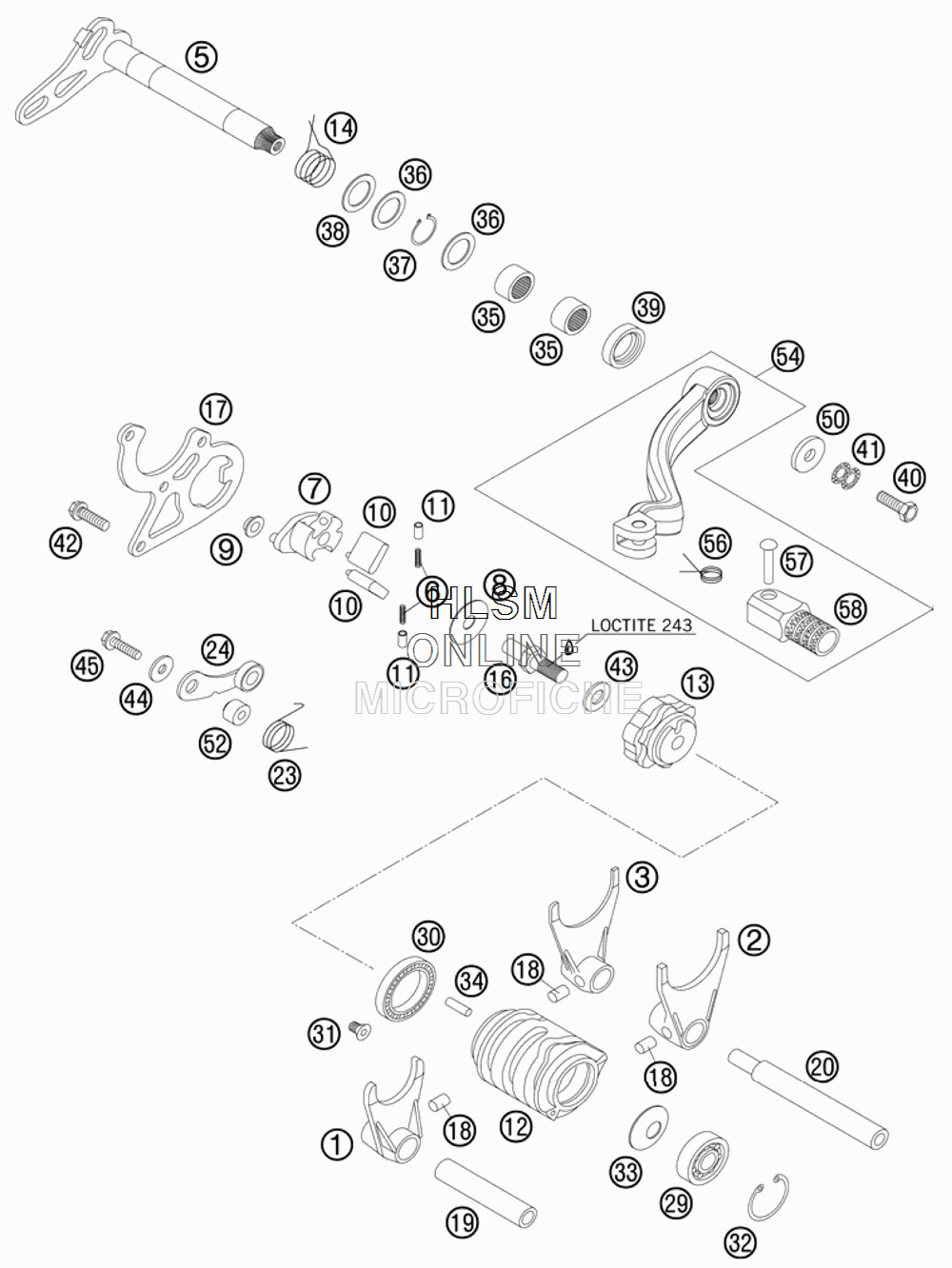

SHIFTING MECHANISM для Ktm 200 XC - 2008 года выпуска
-
№АртикулНазвание
-
150334001200 SHIFTING FORK 5TH/6TH GEARSHIFTING FORK 5TH/6TH GEAR
-
250334002200 SHIFTING FORK 2ND/4TH GEARSHIFTING FORK 2ND/4TH GEAR
-
350334003200 SHIFTING FORK 1ST/3RD GEARSHIFTING FORK 1ST/3RD GEAR
-
550334005000 SHIFTING SHAFTSHIFTING SHAFT
-
650334007052 SPRING FOR RATCHET 0,5X11,5SPRING FOR RATCHET 0,5X11,5
-
750334007000 RATCHET SUPPORTRATCHET SUPPORT
-
850334007054 STOP DISK 8,2X26X0,7STOP DISK 8,2X26X0,7
-
950334007053 BUSHING 6X8X12X4,5BUSHING 6X8X12X4,5
-
1050334007050 SHIFTING RATCHETSHIFTING RATCHET
-
1150334007051 PRESSURE END PAD 4,1X5,6X8,4PRESSURE END PAD 4,1X5,6X8,4
-
1250334012300 SHIFTING DRUMSHIFTING DRUM
-
1350334013000 LOCATING DRUMLOCATING DRUM
-
1450334014000 RETURN SPRING 3MMRETURN SPRING 3MM
-
1650334016000 SPECIAL SCREW M8X21,5SPECIAL SCREW M8X21,5
-
1750334017000 SHIFTING GATESHIFTING GATE
-
180402061000 NEEDLE ROLLER ZRB 6X10NEEDLE ROLLER ZRB 6X10
-
1950334019000 SHIFTING ROD DRIVE 11,8X67,5SHIFTING ROD DRIVE 11,8X67,5
-
2050334020000 SHIFT. ROD DRIVE END 11,8X94,5SHIFT. ROD DRIVE END 11,8X94,5
-
2350334023000 LOCATING LEVER SPRING 2,5MMLOCATING LEVER SPRING 2,5MM
-
2450334024144 LOCATING LEVER CPL.LOCATING LEVER CPL.
-
290625060006 BALL BEARING 6000 RS1 C3BALL BEARING 6000 RS1 C3
-
300625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
310991050102 FLAT H.SCEW DIN7991-M5X10FLAT H.SCEW DIN7991-M5X10
-
320472260120 LOCK RING DIN0472-26X1,2LOCK RING DIN0472-26X1,2
-
330093251209 SPRING WASHER 12,2X25X0,9SPRING WASHER 12,2X25X0,9
-
340402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
3554632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
3649033031000 STOP DISK 14,3X20X1STOP DISK 14,3X20X1
-
370471140100 LOCK WASHER DIN0471-14X1LOCK WASHER DIN0471-14X1
-
3849033031015 STOP DISK 14,2X22X1,5STOP DISK 14,2X22X1,5
-
390760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
400933060165 HH SCREW DIN0933-M 6X16HH SCREW DIN0933-M 6X16
-
4150233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
420015060163 HH COLLAR SCREW M 6X16HH COLLAR SCREW M 6X16
-
430125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
440349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
450015050203 HH COLLAR SCREW M 5X20HH COLLAR SCREW M 5X20
-
5050232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
5254634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
5454734031000 SHIFT LEVER CPL. 2-STROKESHIFT LEVER CPL. 2-STROKE
-
5654634032100 SHIFTING LEVER SPRING 250SHIFTING LEVER SPRING 250
-
5754634031050 BOLT 6X25 FOR SHIFT LEVERBOLT 6X25 FOR SHIFT LEVER
-
5854634131000 STEP PLATE FOR SHIFT LEVER 250STEP PLATE FOR SHIFT LEVER 250
