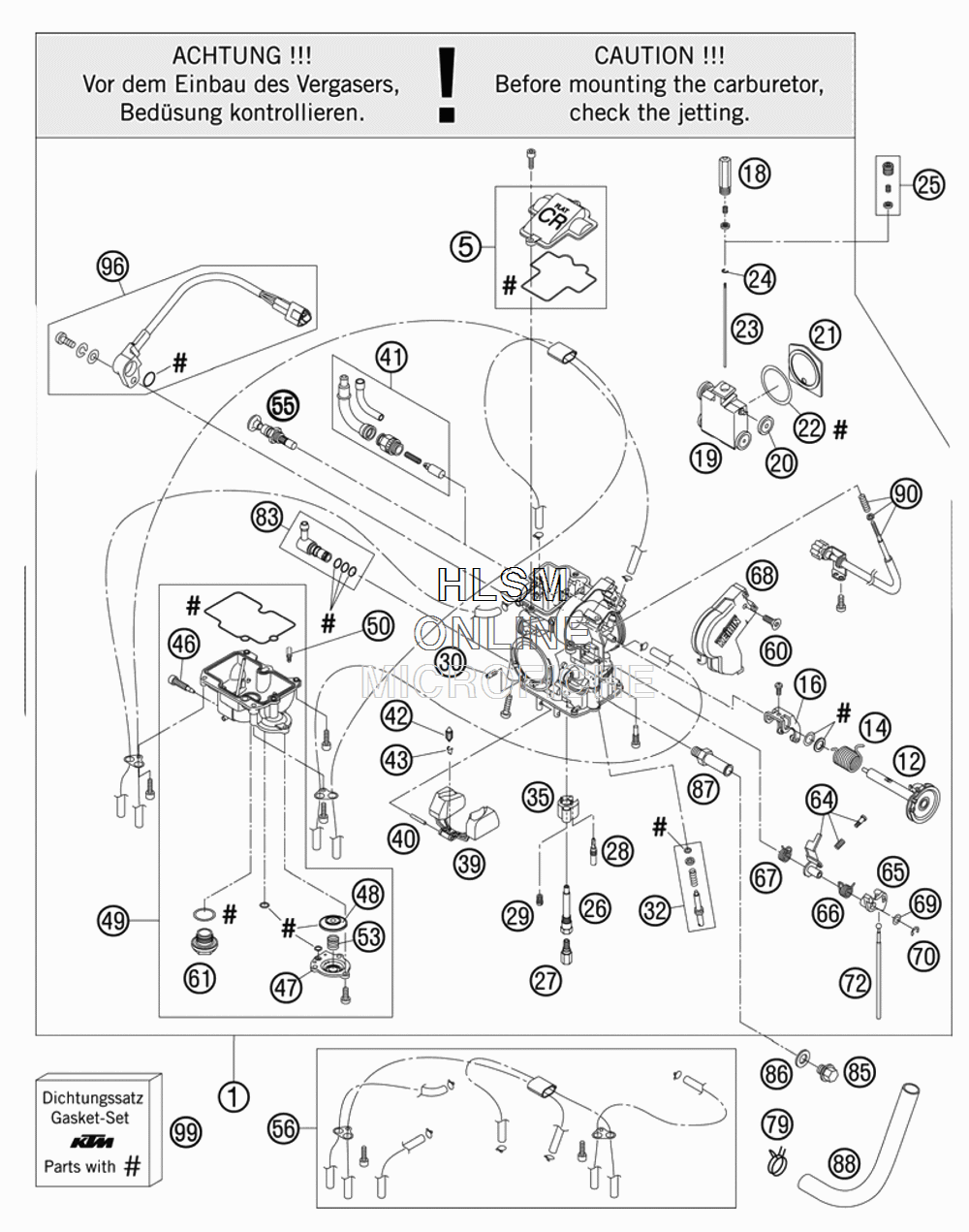

CARBURETOR для Ktm 250 XC-FW Champions Edition - 2010 года выпуска
-
№АртикулНазвание
-
177031001500 CARBURETOR FCR-MX 3900K,TPSCARBURETOR FCR-MX 3900K,TPS
-
557331027044 CARBURETOR COVER WITH GASKETCARBURETOR COVER WITH GASKET
-
1257331046100 THROTTLE SHAFT CPL.THROTTLE SHAFT CPL.
-
1457331046050 COIL SPRING THROTTLE SHAFTCOIL SPRING THROTTLE SHAFT
-
1676231035051 LINK ARM THROTTLE VALVE CPL.LINK ARM THROTTLE VALVE CPL.
-
1859031029010 SLIDE STOP 03SLIDE STOP 03
-
1957331035100 THROTTLE VALVE CPL. FCRMXTHROTTLE VALVE CPL. FCRMX
-
2059031035050 BUSHING THROTTLE VALVEBUSHING THROTTLE VALVE
-
2157331035153 GASKET PLATE THROTTLE VALVEGASKET PLATE THROTTLE VALVE
-
2259031035052 GASKET WASHER THROTTLE VALVEGASKET WASHER THROTTLE VALVE
-
2357331034100 JET NEEDLE KEIHIN OBEKPJET NEEDLE KEIHIN OBEKP
-
2357331034500 JET NEEDLE KEIHIN OBEKTJET NEEDLE KEIHIN OBEKT
-
2359031034100 JET NEEDLE KEIHIN OBETPJET NEEDLE KEIHIN OBETP
-
2359031034200 JET NEEDLE KEIHIN OBETNJET NEEDLE KEIHIN OBETN
-
2359031034300 JET NEEDLE KEIHIN OBETQJET NEEDLE KEIHIN OBETQ
-
2377031034000 JET NEEDLE KEIHIN OBDYSJET NEEDLE KEIHIN OBDYS
-
2459031029000 BAR CLIPBAR CLIP
-
2557331032000 NEEDLE SET SCREW CPL.NEEDLE SET SCREW CPL.
-
2659031121000 NEEDLE JET FCR-MXNEEDLE JET FCR-MX
-
2754531623160 MAIN JET 160 KEIHINMAIN JET 160 KEIHIN
-
2754531623162 MAIN JET 162 KEIHINMAIN JET 162 KEIHIN
-
2754531623165 MAIN JET 165 KEIHINMAIN JET 165 KEIHIN
-
2754531623168 MAIN JET 168 KEIHINMAIN JET 168 KEIHIN
-
2754531623170 MAIN JET 170 KEIHINMAIN JET 170 KEIHIN
-
2754531623172 MAIN JET 172 KEIHINMAIN JET 172 KEIHIN
-
2754531623175 MAIN JET 175 KEIHINMAIN JET 175 KEIHIN
-
2754531623178 MAIN JET 178 KEIHINMAIN JET 178 KEIHIN
-
2854531607038 IDLE JET 38 KEIHINIDLE JET 38 KEIHIN
-
2854531607040 IDLE JET 40 KEIHINIDLE JET 40 KEIHIN
-
2854531607042 IDLE JET 42 KEIHINIDLE JET 42 KEIHIN
-
2959031051065 STARTER JET 65STARTER JET 65
-
2959031051070 STARTER JET 70STARTER JET 70
-
2959031051075 STARTER JET 75STARTER JET 75
-
2959031051080 STARTER JET 80STARTER JET 80
-
2959031051085 STARTER JET 85STARTER JET 85
-
3057331107100 IDLE AIR JET 100 KEIHINIDLE AIR JET 100 KEIHIN
-
3259031017100 ADJUST SCREW CPL. FCR-MXADJUST SCREW CPL. FCR-MX
-
3557331085000 BUFFER PLATEBUFFER PLATE
-
3957331009000 FLOAT CPL.FLOAT CPL.
-
4057331008000 ARM PIN FLOATARM PIN FLOAT
-
4178031096044 STARTER VALVE CPL.STARTER VALVE CPL.
-
4254631220000 FLOAT NEEDLEFLOAT NEEDLE
-
4354531621000 CLAMPCLAMP
-
4676231155000 DRAIN SCREW + O-RINGDRAIN SCREW + O-RING
-
4757331060000 COVER ACCELERATOR PUMPCOVER ACCELERATOR PUMP
-
4857331057100 DIAPHRAGM ACCELERATOR PUMPDIAPHRAGM ACCELERATOR PUMP
-
4978031011000 FLOAT CHAMBER CPL.FLOAT CHAMBER CPL.
-
5054631085000 JET POWER JET CLOSED KEIHINJET POWER JET CLOSED KEIHIN
-
5054631085050 JET POWER JET 50 KEIHINJET POWER JET 50 KEIHIN
-
5054631085060 JET POWER JET 60 KEIHINJET POWER JET 60 KEIHIN
-
5054631085070 JET POWER JET 70 KEIHINJET POWER JET 70 KEIHIN
-
5359031059000 COIL SPRINGCOIL SPRING
-
5577031048000 STARTER VALVE SHORT CPL.STARTER VALVE SHORT CPL.
-
5657331098000 BREATH.HOSE FCR-MX KEIHIN CPL.BREATH.HOSE FCR-MX KEIHIN CPL.
-
60965050103 FLAT HEAD SCREW DIN0965-M 5X10FLAT HEAD SCREW DIN0965-M 5X10
-
6154531699000 PLUG M 18X1PLUG M 18X1
-
6457331062000 INTERMEDIATE LEVER CPL.INTERMEDIATE LEVER CPL.
-
6557331056000 LINK LEVERLINK LEVER
-
66SXS08250030 SXS ACCELERATION PUMP SPRINGSXS ACCELERATION PUMP SPRING
-
6757331159000 SPRING INTERMEDIATE LEVERSPRING INTERMEDIATE LEVER
-
6857331038200 CARBURETOR COVERCARBURETOR COVER
-
6957331087000 WASHER LINK LEVERWASHER LINK LEVER
-
7057331084000 E-CLIPE-CLIP
-
7257331061000 ROD ACCELERATOR PUMPROD ACCELERATOR PUMP
-
7958431082100 YDNAC-CLAMP 10173 (16MM)YDNAC-CLAMP 10173 (16MM)
-
8359031013044 HOSE CONNECTOR CPL.HOSE CONNECTOR CPL.
-
85910100003 PLUG DIN0910-M 10X1PLUG DIN0910-M 10X1
-
86603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
8759031040300 HOSE CONNECTOR KEIHINHOSE CONNECTOR KEIHIN
-
8877031050000 ENGINE BREATHER TUBEENGINE BREATHER TUBE
-
9057331025000 STOP SCREW CPL. FCR-MXSTOP SCREW CPL. FCR-MX
-
9659031077200 TPS-SENSOR FCRMX 190MMTPS-SENSOR FCRMX 190MM
-
9957331099000 GASKET SET FCR-MX KEIHINGASKET SET FCR-MX KEIHIN
