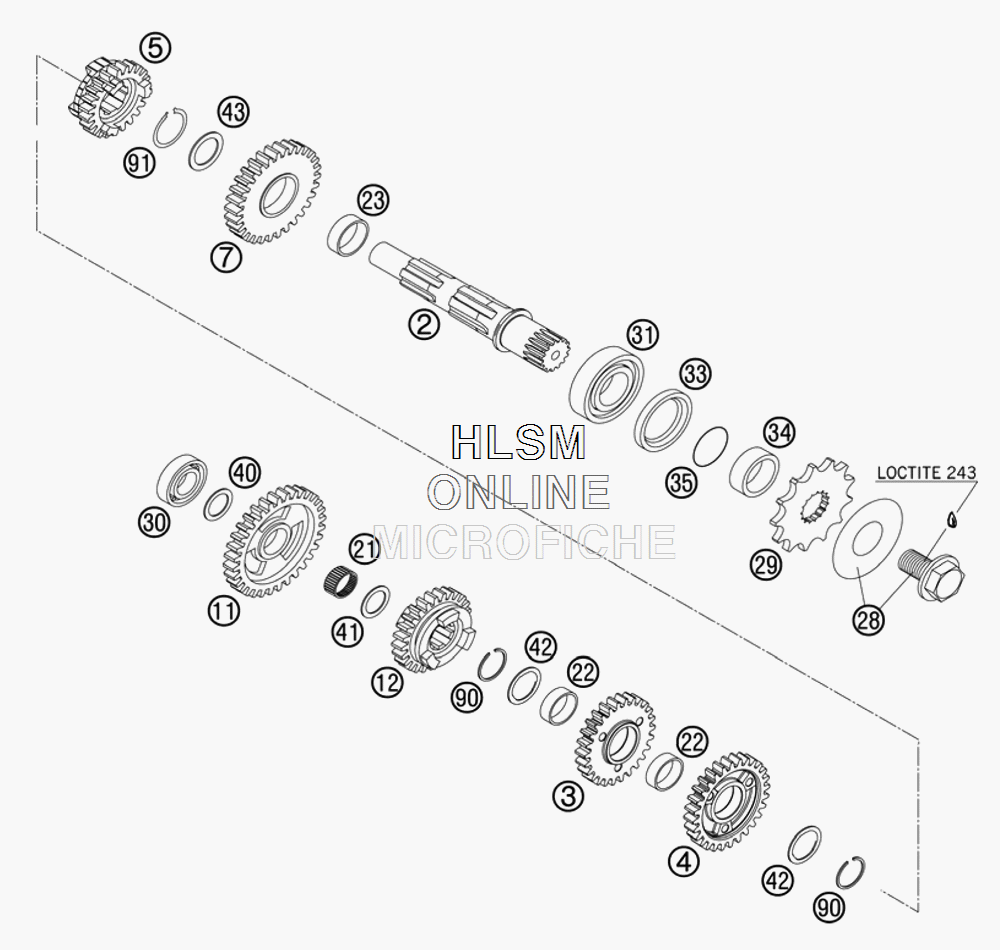

TRANSMISSION II - COUNTER SHAFT для Ktm 250 XC-FW Champions Edition - 2010 года выпуска
-
№АртикулНазвание
-
277033010000 COUNTER SHAFTCOUNTER SHAFT
-
377033114000 IDLER G. 4TH 6.28-T "4B28"IDLER G. 4TH 6.28-T "4B28"
-
477033113000 IDLER G. 3RD G.29-T "3B29"IDLER G. 3RD G.29-T "3B29"
-
577033116100 SLIDING G. 6TH 6.22-T "6B26"SLIDING G. 6TH 6.22-T "6B26"
-
777033112000 IDLER G. 2ND 6. 33-T "2B33"IDLER G. 2ND 6. 33-T "2B33"
-
1177033111000 IDLER G. 1ST G. 33-T "1B33"IDLER G. 1ST G. 33-T "1B33"
-
1277033115100 SLIDING G. 5TH G .23-T "5B23"SLIDING G. 5TH G .23-T "5B23"
-
2150033098000 NEEDLE BEARING K20X24X10NEEDLE BEARING K20X24X10
-
22405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
2350333023000 IDLER GEAR BUSHING 25X28X9,7 DIDLER GEAR BUSHING 25X28X9,7 D
-
2859033034044 SCREW 10.9+SPRING WASHERSCREW 10.9+SPRING WASHER
-
2950033029013 FRONT SPROCKET 13-TFRONT SPROCKET 13-T
-
2950033029014 FRONT SPROCKET 14-TFRONT SPROCKET 14-T
-
2950033029015 FRONT SPROCKET 15-TFRONT SPROCKET 15-T
-
30625060031 BALL BEARING 6003 TN9 C4BALL BEARING 6003 TN9 C4
-
31625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
33760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
-
3454633014100 SPACER BUSHING 12MMSPACER BUSHING 12MM
-
35770230020 O-RING 23,00X2,00 NBR70O-RING 23,00X2,00 NBR70
-
4056033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
4159033080000 SHIM 20X32X1SHIM 20X32X1
-
4250333043000 STOP DISC 25,2X32X1STOP DISC 25,2X32X1
-
43988253510 THRUST WASH. DIN0988-25X35X1,0THRUST WASH. DIN0988-25X35X1,0
-
9077033022000 AXIAL-CIRCLIP 25X1,65AXIAL-CIRCLIP 25X1,65
-
91471250120 CIRCLIP DIN0471-25X1,2CIRCLIP DIN0471-25X1,2
