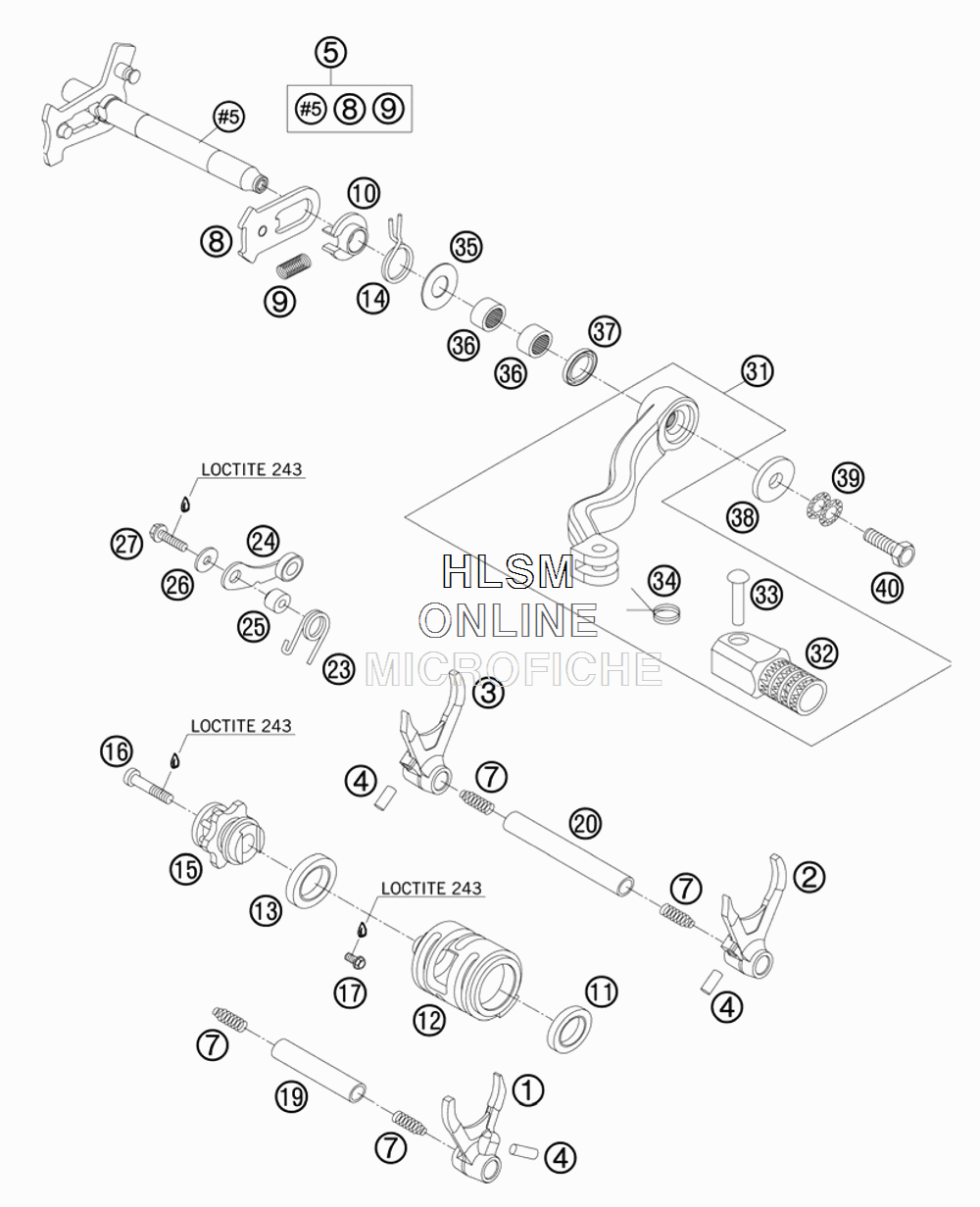

SHIFTING MECHANISM для Ktm 250 XC-FW Champions Edition - 2010 года выпуска
-
№АртикулНазвание
-
177034001000 SHIFTING FORK 5TH/6TH GEARSHIFTING FORK 5TH/6TH GEAR
-
277034002000 SHIFTING FORK 2ND/3RD GEARSHIFTING FORK 2ND/3RD GEAR
-
377034003000 SHIFTING FORK 1ST/4TH GEARSHIFTING FORK 1ST/4TH GEAR
-
4402061480 NEEDLE ROLLER DIN5402 6X14,8NEEDLE ROLLER DIN5402 6X14,8
-
577034005044 SHIFTING SHAFT CPL.SHIFTING SHAFT CPL.
-
758038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
854634008044 SLIDING PLATE CPL.SLIDING PLATE CPL.
-
956534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
1054634020000 SPRING GUIDESPRING GUIDE
-
11625069034 BALL BEARING 6903 C4BALL BEARING 6903 C4
-
1277034012000 SHIFT ROLLERSHIFT ROLLER
-
13625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
1454634014100 RETURN SPRING 2,2MMRETURN SPRING 2,2MM
-
1577034015144 SHIFTING SHAFT CPL.SHIFTING SHAFT CPL.
-
1612060303 AH SCREW DIN6912 M6X30 8.8AH SCREW DIN6912 M6X30 8.8
-
1725060086 HH COLLAR SCREW M6X8 TX30HH COLLAR SCREW M6X8 TX30
-
1954834019000 SHIFT. RAIL MAIN SHAFTSHIFT. RAIL MAIN SHAFT
-
2077034019000 SHIFTING MAIN L=93MMSHIFTING MAIN L=93MM
-
2377034023000 LOCKING LEVER SPRINGLOCKING LEVER SPRING
-
2477034024044 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
2554634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
26349000050 WASHER DIN7349-5X15X2WASHER DIN7349-5X15X2
-
2725050206 HH COLLAR SCREW M5X20 TX30HH COLLAR SCREW M5X20 TX30
-
31*54734031000 SHIFT LEVER CPL. 2-STROKESHIFT LEVER CPL. 2-STROKE
-
3254634131000 STEP PLATE FOR SHIFT LEVERSTEP PLATE FOR SHIFT LEVER
-
3354634031050 BOLT 6X25 FOR SHIFT LEVERBOLT 6X25 FOR SHIFT LEVER
-
3454634032100 SHIFTING LEVER SPRINGSHIFTING LEVER SPRING
-
3554634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
3654632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
37760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
3850232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
3950233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
4059009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
