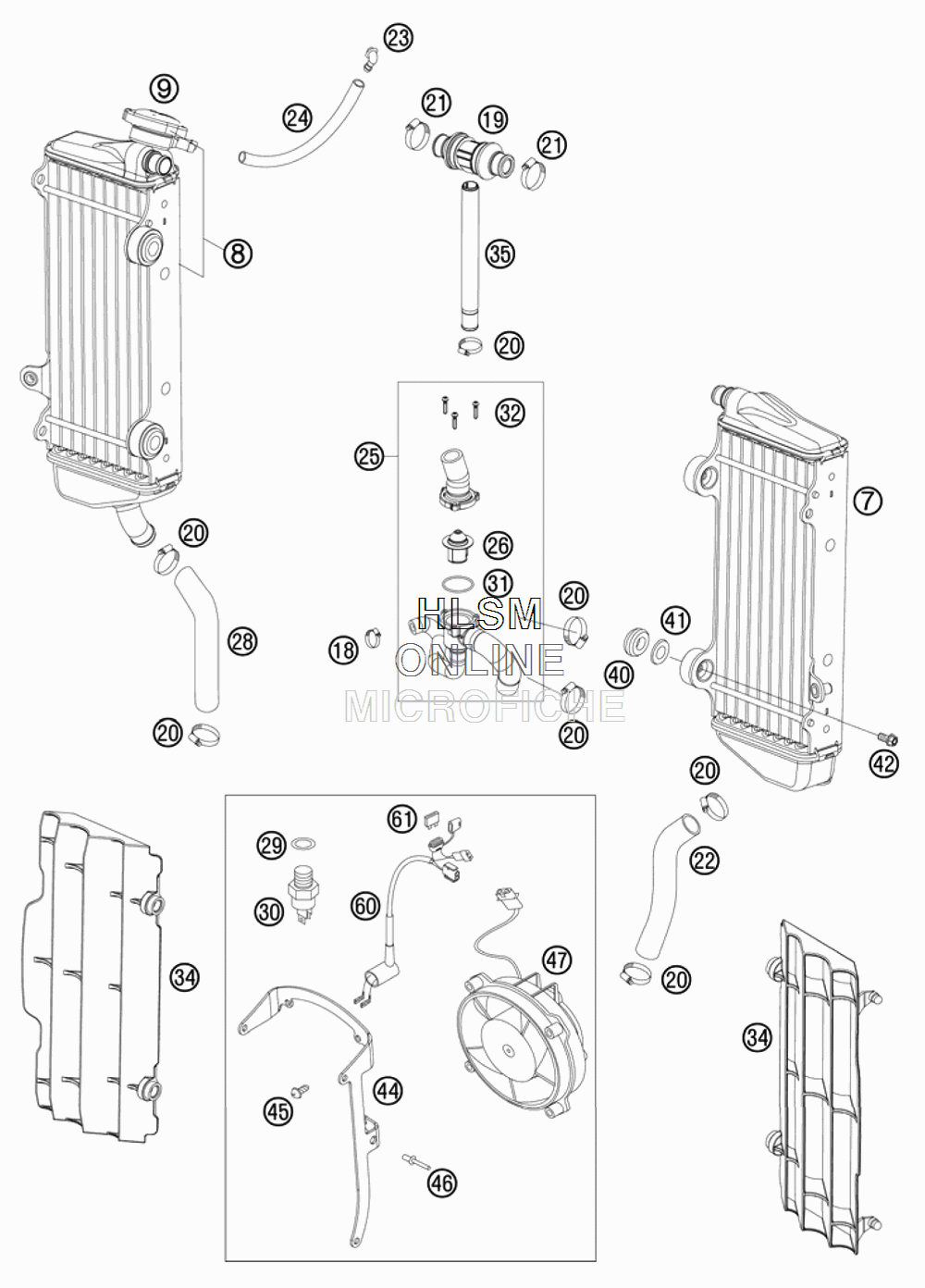

COOLING SYSTEM для Ktm 250 XC-FW Champions Edition - 2010 года выпуска
-
№АртикулНазвание
-
777035007100 RADIATOR L/S 250 SX-FRADIATOR L/S 250 SX-F
-
878035008000 RADIATOR R/S "45556"RADIATOR R/S "45556"
-
977335016000 RADIATOR CAP SMALL 1,8 BARRADIATOR CAP SMALL 1,8 BAR
-
1858335099000 HOSE CLAMP GEMI 10-16HOSE CLAMP GEMI 10-16
-
1977335026000 T-CONNECTOR CPL.T-CONNECTOR CPL.
-
2010001020000 HOSE CLAMP GEMI 16-27HOSE CLAMP GEMI 16-27
-
2142013037300 HOSE CLAMP NORMA 12/22HOSE CLAMP NORMA 12/22
-
2277035025000 RADIATOR HOSE L/S 250SXFRADIATOR HOSE L/S 250SXF
-
2350303089000 ANGEL PIECEANGEL PIECE
-
2431007107001 PVC-HOSE 6X9 MM PER METERPVC-HOSE 6X9 MM PER METER
-
2577035026033 THERMOSTAT CPL. 75°CTHERMOSTAT CPL. 75°C
-
2659435017000 THERMOSTAT 70 DEGREETHERMOSTAT 70 DEGREE
-
2877035027100 RADIATOR HOSE R/SRADIATOR HOSE R/S
-
29603142015 ALU SEALRING DIN7603-14X20X1,5ALU SEALRING DIN7603-14X20X1,5
-
3078035045000 THERMOSWITCH 95-100 DGTHERMOSWITCH 95-100 DG
-
31770320020 O-RING 32,00X2,00O-RING 32,00X2,00
-
3216040183 SCREW FOR PLASTIC D=4X18SCREW FOR PLASTIC D=4X18
-
347733503400030 RADIATOR PROTECTION BLACKRADIATOR PROTECTION BLACK
-
3577335073000 HOSE CONNECTOR 4 STROKEHOSE CONNECTOR 4 STROKE
-
4041001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
4177335001000 WASHER FOR RADIATORWASHER FOR RADIATOR
-
4223060123 COLLAR SCREW M6X12 TXCOLLAR SCREW M6X12 TX
-
4478035043000 FAN SUPPORT EXCFAN SUPPORT EXC
-
4581500181 SCREW FOR PLASTIC D=5X18SCREW FOR PLASTIC D=5X18
-
4611400800 RIVET 4,0X 8 ALURIVET 4,0X 8 ALU
-
4758435041000 FAN CPL. 12V LC4FAN CPL. 12V LC4
-
6059011079000 FAN WIRING HARNESSFAN WIRING HARNESS
-
6158011109105 FUSE 5 AFUSE 5 A
