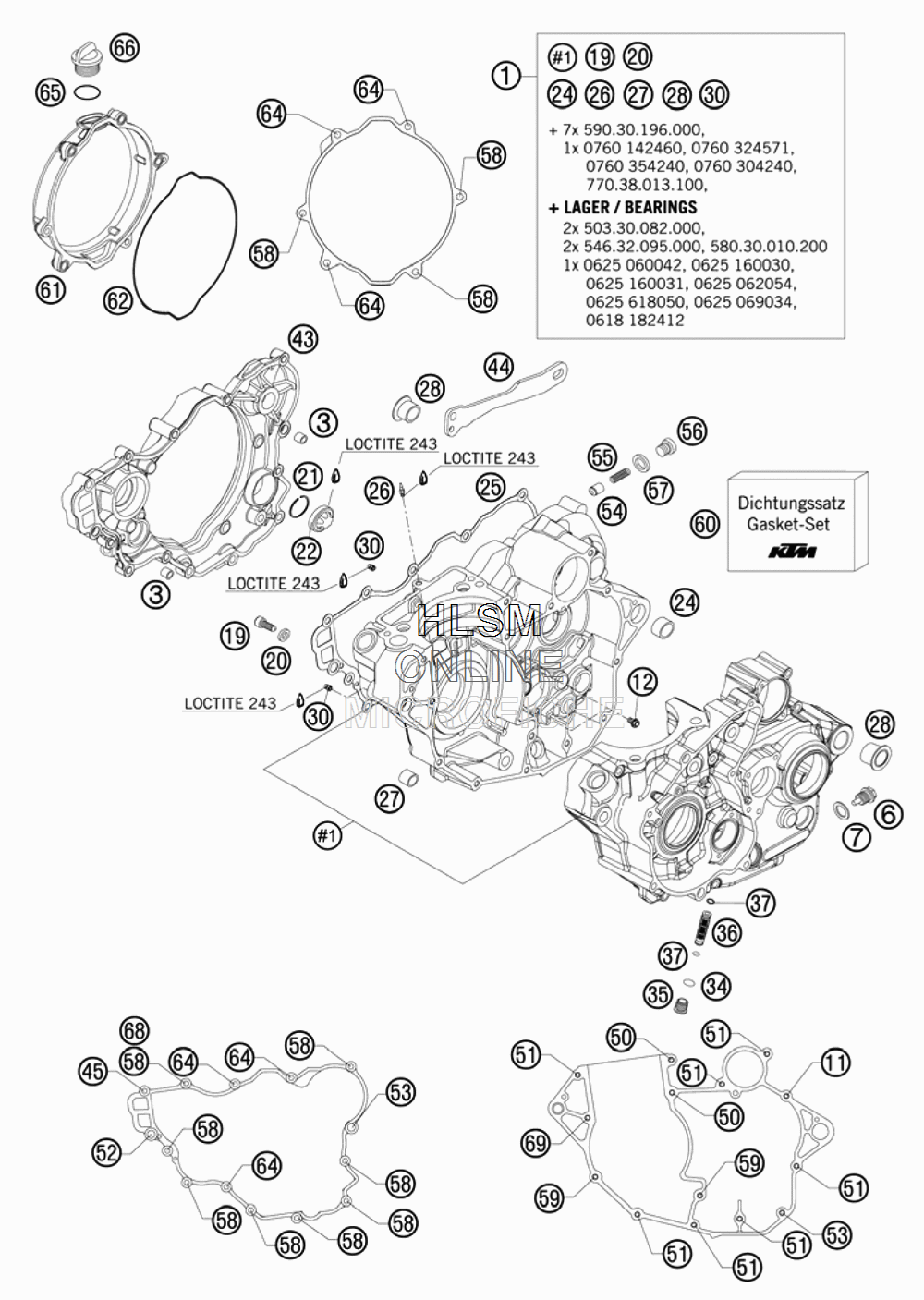

ENGINE CASE для Ktm 250 XC-FW Champions Edition - 2010 года выпуска
-
№АртикулНазвание
-
177030100144 ENGINE CASE CPL. EXC-F/XC-FENGINE CASE CPL. EXC-F/XC-F
-
349030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
658030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
1125060456 HH COLLAR SCREW M6X45 TX30HH COLLAR SCREW M6X45 TX30
-
1225060086 HH COLLAR SCREW M6X8 TX30HH COLLAR SCREW M6X8 TX30
-
1958030080000 LOCATING SCREW M8 L=23LOCATING SCREW M8 L=23
-
2058030081000 CU-SEAL RING 8 X 14 X 3CU-SEAL RING 8 X 14 X 3
-
2161030019050 CIRCLIP OIL LEVEL GLASSCIRCLIP OIL LEVEL GLASS
-
2259030019000 OIL LEVEL GLASS G 1777 YOIL LEVEL GLASS G 1777 Y
-
2459030024000 DOWEL 17 X 19 X 12DOWEL 17 X 19 X 12
-
2577030025100 GASKET FOR CLUTCH COVERGASKET FOR CLUTCH COVER
-
2660030064070 OIL JET 70 M6X0,75 WS8OIL JET 70 M6X0,75 WS8
-
2754630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2875030010000 CASE BUSHCASE BUSH
-
3077030058150 JET 44-031/150JET 44-031/150
-
34770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
3577038017000 SCREW PLUGSCREW PLUG
-
3659038015100 OIL SCREEN 11,8X44,5MMOIL SCREEN 11,8X44,5MM
-
37770090015 O-RING 9X1,5 NBRO-RING 9X1,5 NBR
-
437703000124415 CLUTCH COVER CPL.CLUTCH COVER CPL.
-
4477030047100 CHAIN DAMPERSHEET EXC-F 07CHAIN DAMPERSHEET EXC-F 07
-
4525060356 HH COLLAR SCREW M6X35 TX30HH COLLAR SCREW M6X35 TX30
-
5025060656 HH COLLAR SCREW M6X65 TX30HH COLLAR SCREW M6X65 TX30
-
5125060506 HH COLLAR SCREW M6X50 TX30HH COLLAR SCREW M6X50 TX30
-
5225060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
5325060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
5458038028000 VALVE PISTON D=10MMVALVE PISTON D=10MM
-
5558038023300 PRESSURE SPRING L=25MM D=1MMPRESSURE SPRING L=25MM D=1MM
-
56908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
5758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
5825060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
5925060956 HH COLLAR SCREW M6X95 TX30HH COLLAR SCREW M6X95 TX30
-
6077030099000 GASKET SETGASKET SET
-
61*7703002630015 CLUTCH COVER OUTSIDECLUTCH COVER OUTSIDE
-
6277030027000 MOLDED RINGMOLDED RING
-
6425060556 HH COLLAR SCREW M6X55 TX30HH COLLAR SCREW M6X55 TX30
-
65770191015 O-RING 19,00X3,00 NBRO-RING 19,00X3,00 NBR
-
6658030020000 PLUG M 24X3PLUG M 24X3
-
68603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
6925060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
