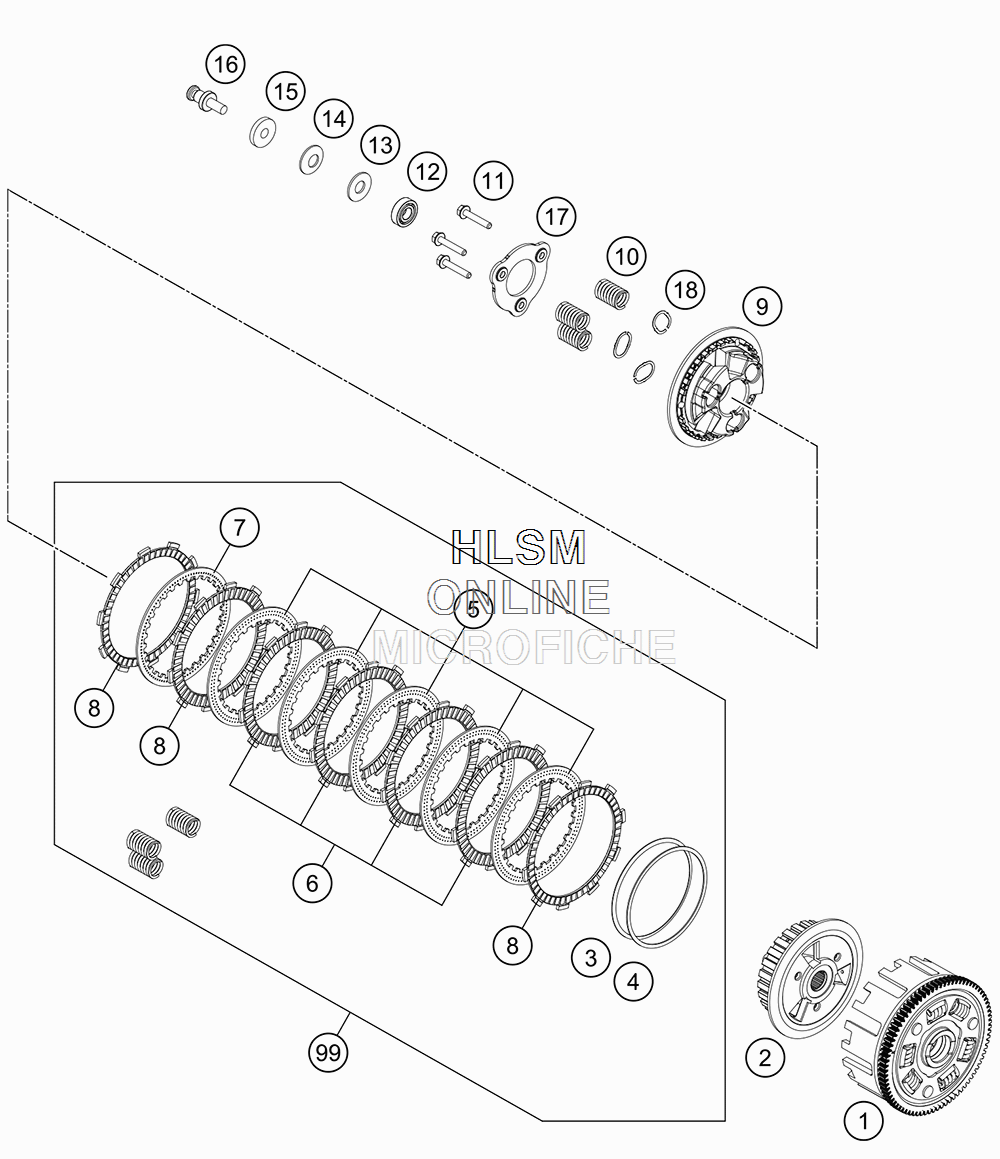

CLUTCH для Ktm 390 DUKE WHITE - 2017 года выпуска
-
№АртикулНазвание
-
190232101044 CLUTCH CAGE CPL.CLUTCH CAGE CPL.
-
290232102000 INNER CLUTCH HUBINNER CLUTCH HUB
-
390232134000 JUDDER SPRINGJUDDER SPRING
-
490232135000 SEAT JUDDER SPRINGSEAT JUDDER SPRING
-
590232010100 INTERMEDI. DISC AINTERMEDI. DISC A
-
690232011000 LINING DISCLINING DISC
-
790232110000 INTERMEDI. DISC BINTERMEDI. DISC B
-
890232211000 LINING DISC TURNED OFFLINING DISC TURNED OFF
-
990232103000 PRESSURE PLATEPRESSURE PLATE
-
1090232105000 CLUTCH SPRINGCLUTCH SPRING
-
1190232101101 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
12J625069020 BALL BEARING 6902 15X28X7BALL BEARING 6902 15X28X7
-
1390232017000 SHIMSHIM
-
1490236015001 SPECIAL WASHERSPECIAL WASHER
-
1590232019000 NUT F. CLUTCHNUT F. CLUTCH
-
1690232048004 PULL RODPULL ROD
-
1790232006000 STOPPER PLATESTOPPER PLATE
-
1890232004000 SPRING SEATSPRING SEAT
-
9990232111010 CLUTCH KITCLUTCH KIT
