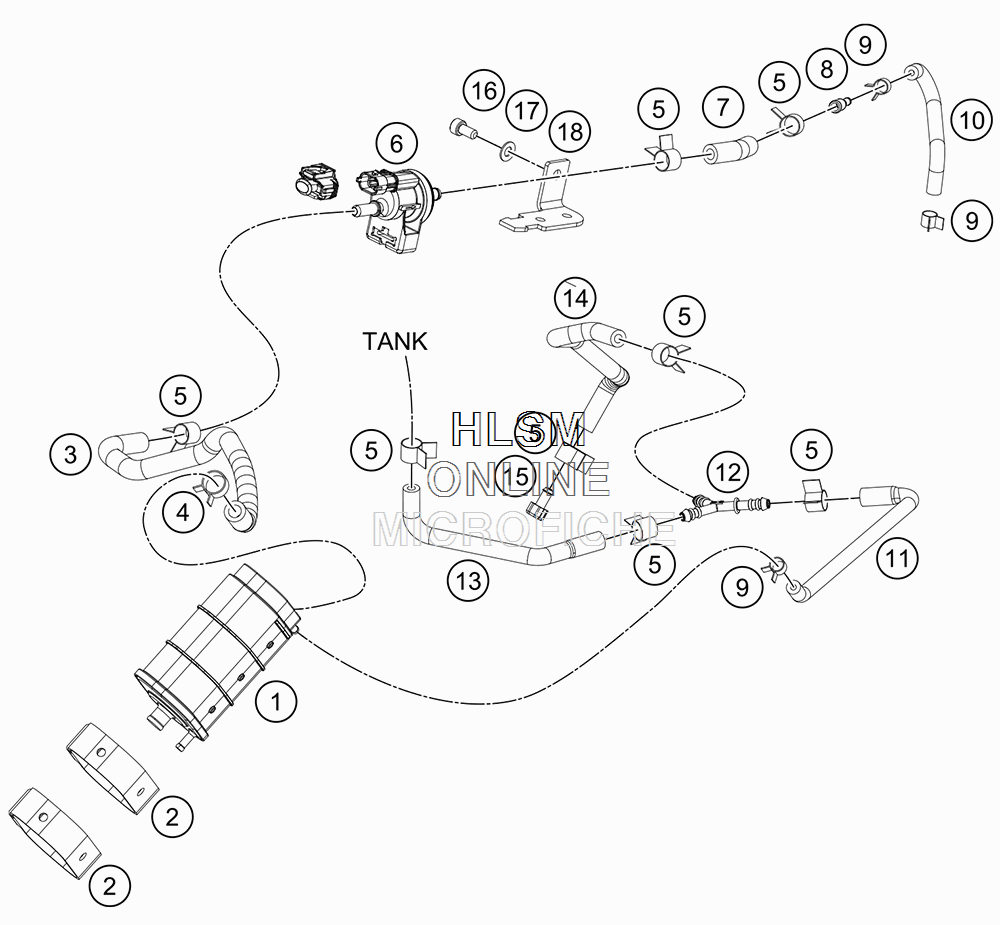

EVAPORATIVE CANISTER для Ktm 390 DUKE WHITE - 2017 года выпуска
-
№АртикулНазвание
-
193015001000 ACTIVATED CARBON FILTERACTIVATED CARBON FILTER
-
293015003000 RUBBER BANDRUBBER BAND
-
393015020000 HOSEHOSE
-
490607017001 SPRING BAND CLAMP 15X10SPRING BAND CLAMP 15X10
-
590607017003 SPRING BAND CLAMP D13SPRING BAND CLAMP D13
-
690607030000 PURGE VALVEPURGE VALVE
-
793015021000 PRE-FORMED HOSEPRE-FORMED HOSE
-
890207016004 CONNECTOR TUBE EVAPCONNECTOR TUBE EVAP
-
990607017002 CLAMP D9CLAMP D9
-
1093015022000 PRE-FORMED HOSEPRE-FORMED HOSE
-
1193015017000 Y CONNECTIONY CONNECTION
-
1290507015000 CONNECTOR Y SHAPECONNECTOR Y SHAPE
-
1393015026000 PRE-FORMED HOSEPRE-FORMED HOSE
-
1490515023000 TUBE CONNECTOR TO PLUGTUBE CONNECTOR TO PLUG
-
1590515011000 PLUG FUEL DRAINPLUG FUEL DRAIN
-
16J912060123 HEXAGON SOCKET SCREW M6X12HEXAGON SOCKET SCREW M6X12
-
17J125060006 WASHER M6WASHER M6
-
1893015032000 FITTING PANELFITTING PANEL
