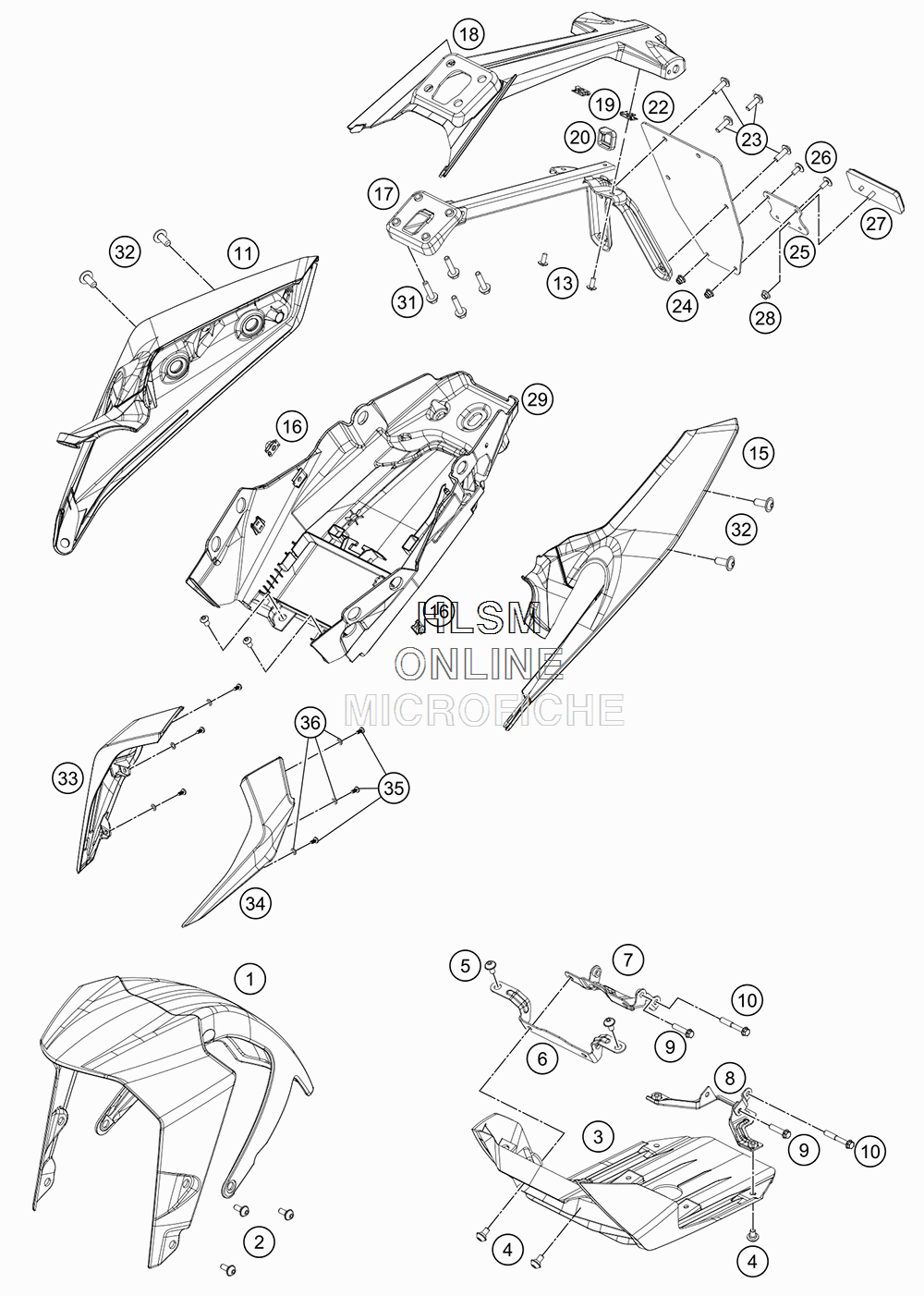

MASK- FENDERS для Ktm 390 DUKE WHITE - 2017 года выпуска
-
№АртикулНазвание
-
19300801003328 FRONT FENDER CPL. WHITEFRONT FENDER CPL. WHITE
-
293008040000 SCREW M6X1X13SCREW M6X1X13
-
393308020000 UNDER-ENGINE FAIRINGUNDER-ENGINE FAIRING
-
493008020060 SCREW M6X1X9SCREW M6X1X9
-
590508006001 SOCKET HEAD BOLT M6X12SOCKET HEAD BOLT M6X12
-
693008021000 RETAINING BRACKETRETAINING BRACKET
-
793008021020 RETAINING BRACKETRETAINING BRACKET
-
893008021120 BRACKET BELLY PAN REARBRACKET BELLY PAN REAR
-
9J025060144 HEXAGON SCREW M6X14HEXAGON SCREW M6X14
-
10J025060359 HEXAGON SCREW M6X35HEXAGON SCREW M6X35
-
119300804210028 ASSLYSEAT COWL RIGHTASSLYSEAT COWL RIGHT
-
13J031050123 LENS HEAD SCREW M5X12LENS HEAD SCREW M5X12
-
159300804110028 ASSLY SEAT COWL RIGHTASSLY SEAT COWL RIGHT
-
1690108050001 CLIP NUT M5CLIP NUT M5
-
1793008015000 LICENSE PLATE HOLDER SUPPORTLICENSE PLATE HOLDER SUPPORT
-
1893008015050 LICENSE PLATE HOLDER SUPPORT COVERLICENSE PLATE HOLDER SUPPORT COVER
-
1993008083010 CLIP NUT M5CLIP NUT M5
-
2093008015010 PROTECTION RUBBERPROTECTION RUBBER
-
2290808016000 REAR FENDER EXT.REAR FENDER EXT.
-
2390508006003 AH SCREW M6X1X20AH SCREW M6X1X20
-
2490102031010 HEX NUT M5 AF8HEX NUT M5 AF8
-
2590514044000 REFLECTOR MOUNTINGREFLECTOR MOUNTING
-
26J005050123 FLAT HEAD SCREW M6X12 PHFLAT HEAD SCREW M6X12 PH
-
2790514045000 REFLECTORREFLECTOR
-
2890204060001 HH COLLAR NUTHH COLLAR NUT
-
2993008019000 TAIL END LOWER PARTTAIL END LOWER PART
-
31J926060001 HEXAGON NUT M6HEXAGON NUT M6
-
3290508008001 AH SCREW M8X20AH SCREW M8X20
-
339300800100030 SIDE MASK RIGHT LED BLACKSIDE MASK RIGHT LED BLACK
-
349300802400030 SIDE MASK LEFT LED BLACKSIDE MASK LEFT LED BLACK
-
35J981030101 LENS HEAD SCREW M3,5X10LENS HEAD SCREW M3,5X10
-
36J125040003 WASHER M4WASHER M4
