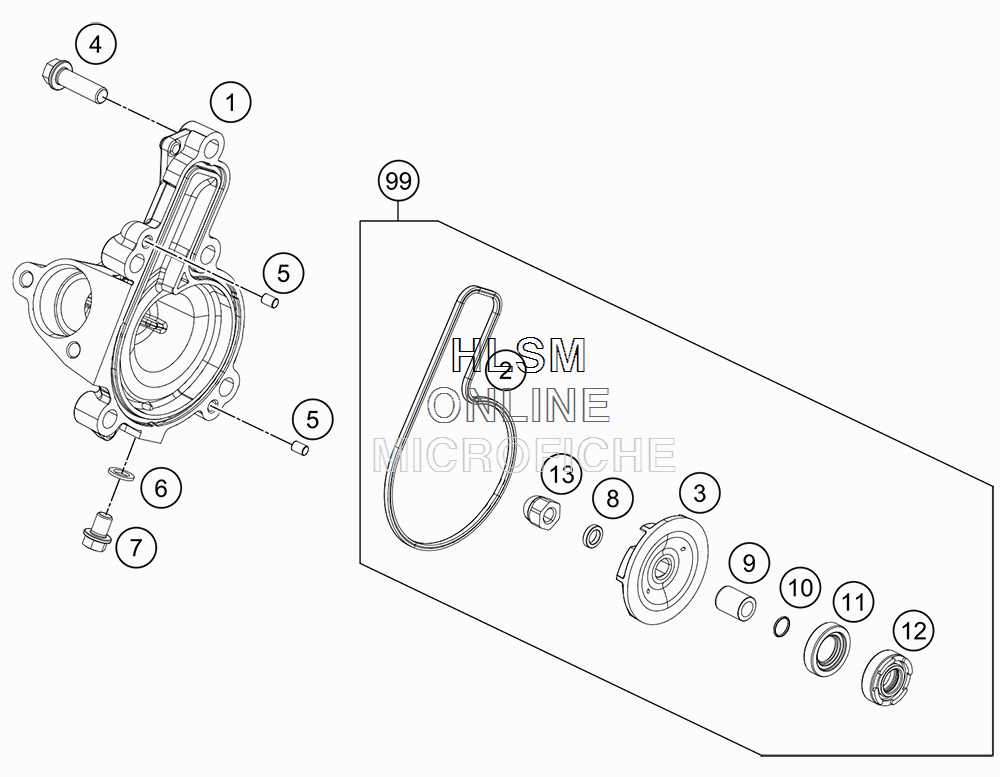

WATER PUMP для Ktm 390 DUKE WHITE - 2017 года выпуска
-
№АртикулНазвание
-
190135052000 WATERPUMP COVERWATERPUMP COVER
-
290135053000 WATER PUMP COVER GASKETWATER PUMP COVER GASKET
-
390135055000 WATER PUMP ROTORWATER PUMP ROTOR
-
4J025060206 HH COLLAR SCREW M6X20 SW10HH COLLAR SCREW M6X20 SW10
-
590134013000 PARALLEL PINPARALLEL PIN
-
6J603061001 COPPER GASKETCOPPER GASKET
-
790110057000 BOLT M6X10BOLT M6X10
-
890130055006 SPACER SHIMSPACER SHIM
-
890130055304 RIFLERIFLE
-
10J770875008 O-RING 8,75X0,8O-RING 8,75X0,8
-
11J760122455 SHAFT SEALING RING 12X24X5,5SHAFT SEALING RING 12X24X5,5
-
120760122406 OIL SEAL 12X24X6OIL SEAL 12X24X6
-
1390135058000 DOME NUT WAPU-WHEELDOME NUT WAPU-WHEEL
-
9990135055210 WATER PUMP REP . KITWATER PUMP REP . KIT
