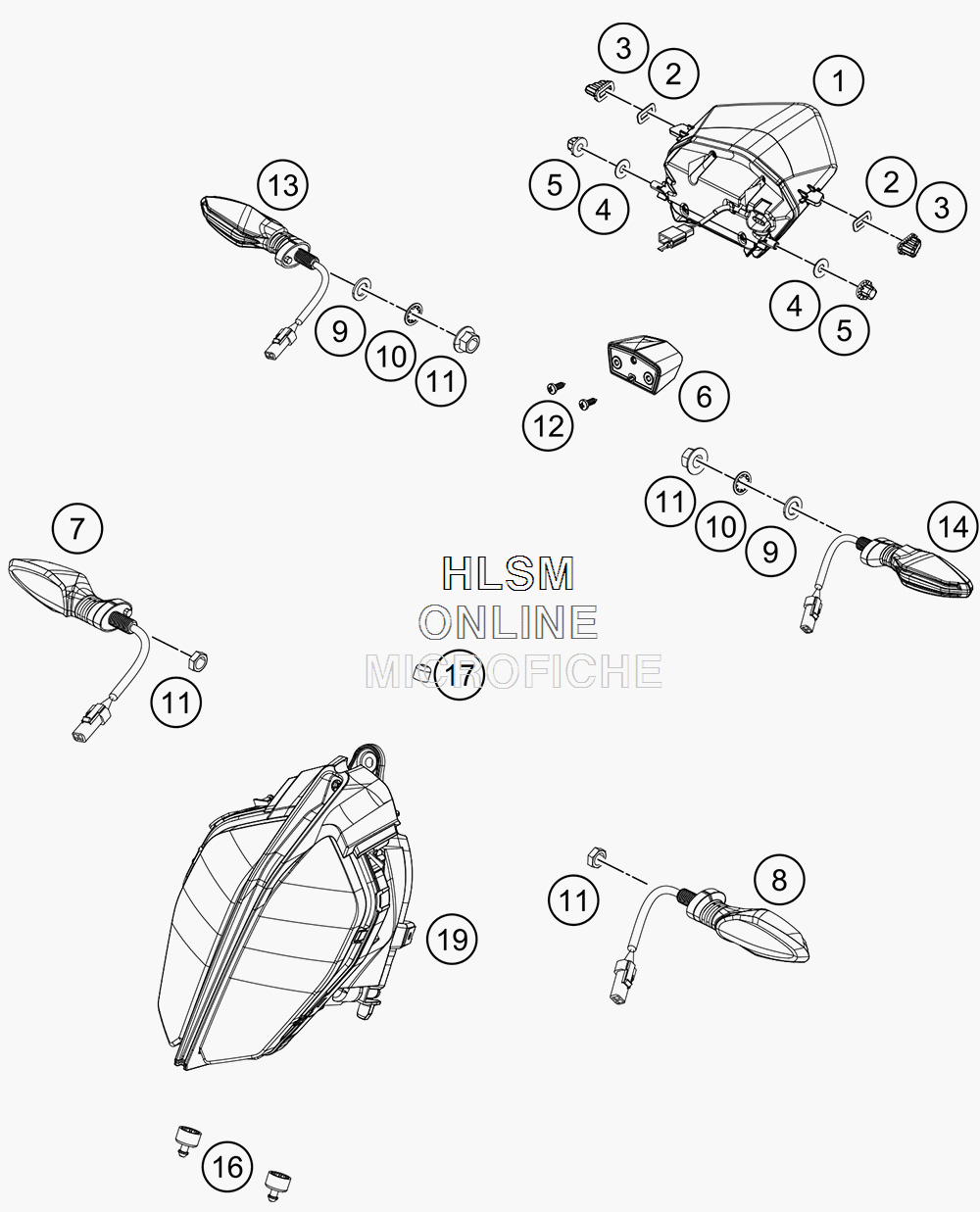

LIGHTING SYSTEM для Ktm 390 DUKE WHITE - 2017 года выпуска
-
№АртикулНазвание
-
193014040100 LAMP TAILLAMP TAIL
-
293014040040 WASHERWASHER
-
393014040020 RUBBER BUSHINGRUBBER BUSHING
-
493014040030 WASHERWASHER
-
593014040010 RUBBER BUSHINGRUBBER BUSHING
-
690114047000 LICENSE PLATE ILLUMINATIONLICENSE PLATE ILLUMINATION
-
793014026000 INDICATOR FRONT RIGHTINDICATOR FRONT RIGHT
-
893014025000 INDICATOR FRONT LEFTINDICATOR FRONT LEFT
-
9J125100003 WASHER PLAIN 10,5WASHER PLAIN 10,5
-
10J797100003 TOOTHED WASHER M10TOOTHED WASHER M10
-
11J934100003 SK NUT M10SK NUT M10
-
12J981420133 SHEET MET.SCR. DIN 7981 4,2X13SHEET MET.SCR. DIN 7981 4,2X13
-
1390514036100 FLASHER REAR R/SFLASHER REAR R/S
-
1490514035100 FLASHER REAR L/SFLASHER REAR L/S
-
1693014015000 RUBBER BUSHINGRUBBER BUSHING
-
1793014014000 RUBBER BUSHINGRUBBER BUSHING
-
1993014001044 LED HEAD LAMP ASSLY DUKE MY17LED HEAD LAMP ASSLY DUKE MY17
