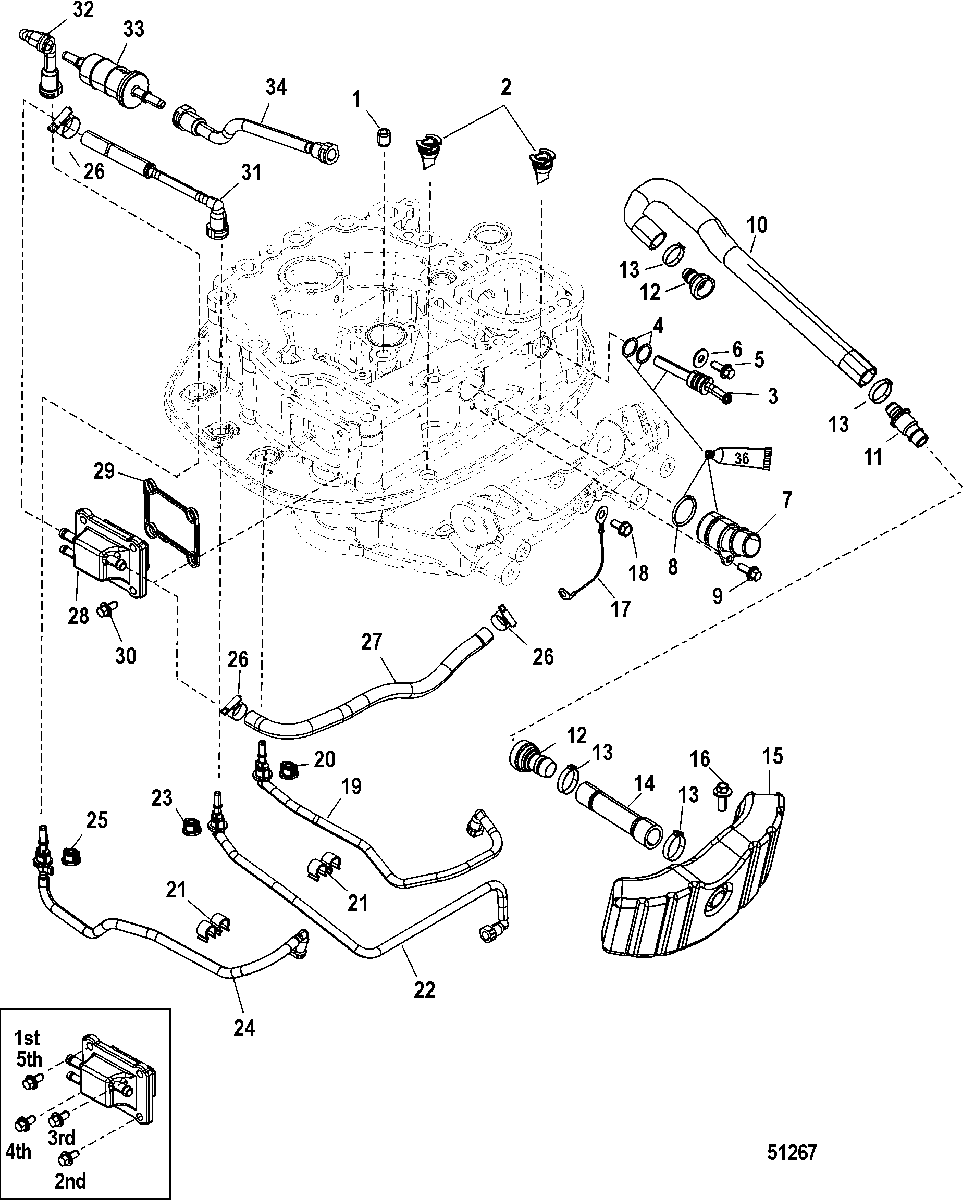

Adaptor Plate Hose Routings, CCT для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0P520553 THRU 2B144122
-
№АртикулНазвание
-
117-884474001 PIN, Dowel (12 mm)PIN, Dowel (12 mm)
-
2888819002 DRAIN, CowlDRAIN, Cowl
-
322-888461A01 FITTING KITFITTING KIT
-
425-892446 O-RING, (14 X 1.78 MM)O-RING, (14 X 1.78 MM)
-
510-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
612-4002316 WASHERWASHER
-
722-889792A01 FITTING KIT, Idle ExhaustFITTING KIT, Idle Exhaust
-
825-889828 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
910-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
1032-8M0074946 HOSE, Idle ReliefHOSE, Idle Relief
-
1122-8M0074533 FITTING, 7/8 Quick disconnectFITTING, 7/8 Quick disconnect
-
1222-889846 FITTINGFITTING
-
1354-8M6001924 CLAMPCLAMP
-
1432-888981001 HOSE, Idle ExhaustHOSE, Idle Exhaust
-
15892384T PLENUM, Exhaust, Remotely LocatedPLENUM, Exhaust, Remotely Located
-
1610-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1788238A21 CABLE ASSEMBLYCABLE ASSEMBLY
-
1810-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
1932-8M0087120 HOSE, Manifold Reference-LowerHOSE, Manifold Reference-Lower
-
2025-884546 GROMMETGROMMET
-
21888523001 CLIPCLIP
-
2232-8M0087106 HOSE, Water In-LowerHOSE, Water In-Lower
-
2325-884546 GROMMETGROMMET
-
2432-8M0087116 HOSE, Fuel Supply Module-OutHOSE, Fuel Supply Module-Out
-
2525-884546 GROMMETGROMMET
-
2654-815504104 CLAMP, Worm GearCLAMP, Worm Gear
-
2732-8M0108349 TUBING, (.312) (70.00 Inches Bulk), Cut to 21 InchesTUBING, (.312) (70.00 Inches Bulk), Cut to 21 Inches
-
28892562T01 HOUSING, ManifoldHOUSING, Manifold
-
29892117 SEALSEAL
-
3010-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
3132-887756 HOSE, Water In-UpperHOSE, Water In-Upper
-
3232-8M0087104 HOSE, Hi-Pressure FilterHOSE, Hi-Pressure Filter
-
3335-879885Q FILTER, FuelFILTER, Fuel
-
3432-8M0087122 HOSE, Hi-Pressure Filter To Fuel RailHOSE, Hi-Pressure Filter To Fuel Rail
-
-27-880552A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-895247A07 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
