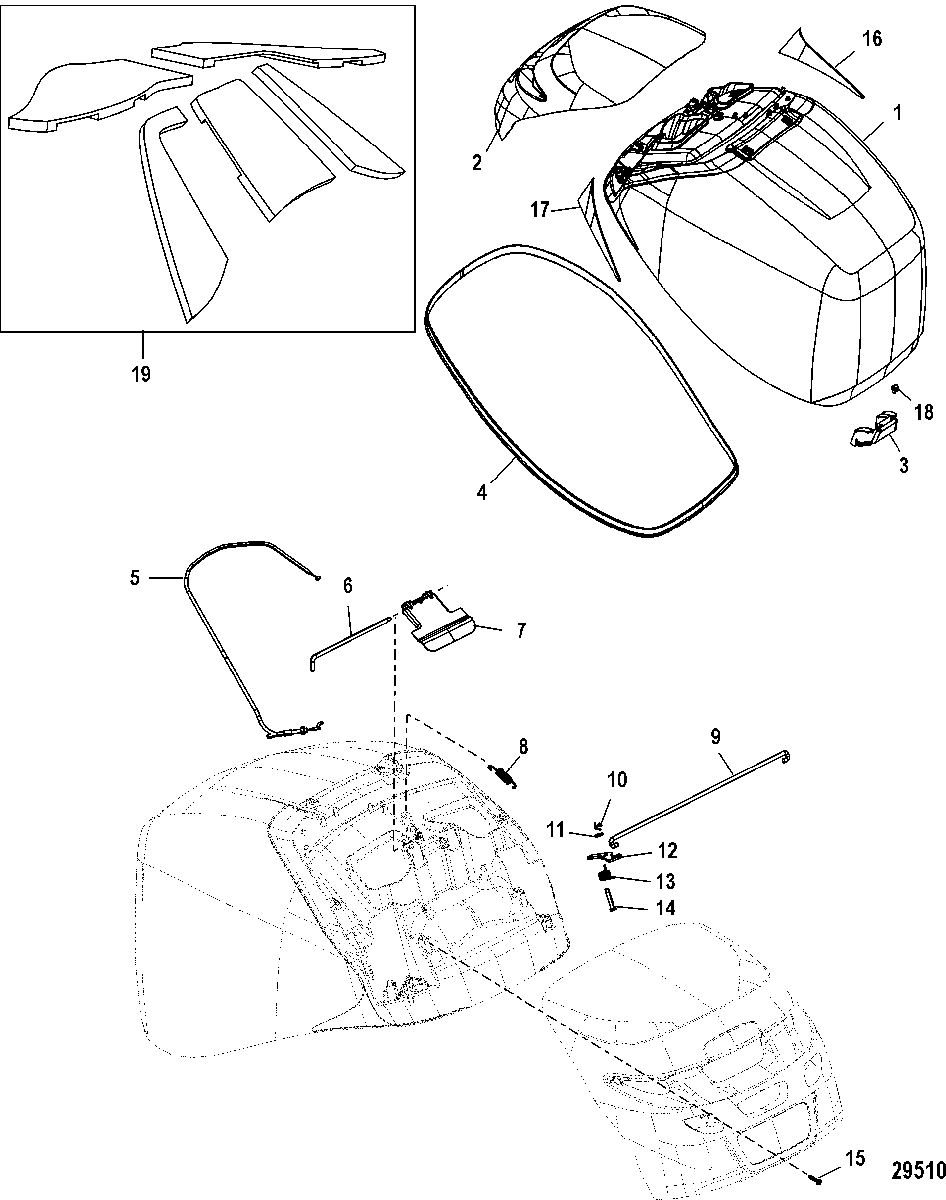

Top Cowl для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0P520553 THRU 2B144122
-
№АртикулНазвание
-
1100-8M0063711 TOP COWL ASSEMBLY, Mercury, BlackTOP COWL ASSEMBLY, Mercury, Black
-
1100-8M0090472 TOP COWL ASSEMBLY, Mercury, Cool WhiteTOP COWL ASSEMBLY, Mercury, Cool White
-
1100-8M0090473 TOP COWL ASSEMBLY, Mercury, Warm WhiteTOP COWL ASSEMBLY, Mercury, Warm White
-
1100-8M0050000 TOP COWL ASSEMBLY, MarinerTOP COWL ASSEMBLY, Mariner
-
1100-8M0113902 TOP COWL ASSEMBLY, Mercury, Black, Without decalsTOP COWL ASSEMBLY, Mercury, Black, Without decals
-
1100-8M0113909 TOP COWL ASSEMBLY, Mariner, Without decalsTOP COWL ASSEMBLY, Mariner, Without decals
-
1100-8M0113903 TOP COWL ASSEMBLY, Cold Fusion, Non-DecaledTOP COWL ASSEMBLY, Cold Fusion, Non-Decaled
-
1100-8M0113904 TOP COWL ASSEMBLY, Warm Fusion, Non-DecaledTOP COWL ASSEMBLY, Warm Fusion, Non-Decaled
-
2885354T01 CAP, Air Dam, Mercury, BlackCAP, Air Dam, Mercury, Black
-
28M0090474 CAP, Air Dam, Cold FusionCAP, Air Dam, Cold Fusion
-
28M0090475 CAP, Air Dam, Warm FusionCAP, Air Dam, Warm Fusion
-
2895838T01 CAP, Air Dam - MarinerCAP, Air Dam - Mariner
-
3888971 FRONT LATCH RECEIVERFRONT LATCH RECEIVER
-
48M0111178 SEALSEAL
-
58M0127199 CABLECABLE
-
617-888959 PIN, HingePIN, Hinge
-
7888956 LATCH, Hand LeverLATCH, Hand Lever
-
824-895373 SPRINGSPRING
-
9888955 LINK, Latch ConnectingLINK, Latch Connecting
-
1018-26953 COTTER PINCOTTER PIN
-
1112-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
12888952 LINKAGE ARMLINKAGE ARM
-
1324-888953 SPRINGSPRING
-
1417-822417 PINPIN
-
1510-888950020 SCREW, (M4 x 20 mm) (M4 x 1.75)SCREW, (M4 x 20 mm) (M4 x 1.75)
-
168M0033614 APPLIQUE, Port (Mercury)(Black)APPLIQUE, Port (Mercury)(Black)
-
168M0088807 APPLIQUE, Port, Cold FusionAPPLIQUE, Port, Cold Fusion
-
168M0088808 APPLIQUE, Port, Warm FusionAPPLIQUE, Port, Warm Fusion
-
168M0033604 APPLIQUE, Port (Mariner)APPLIQUE, Port (Mariner)
-
178M0033615 APPLIQUE, Starboard (Mercury)(Black)APPLIQUE, Starboard (Mercury)(Black)
-
178M0088809 APPLIQUE, Starboard, Cold FusionAPPLIQUE, Starboard, Cold Fusion
-
178M0088810 APPLIQUE, Starboard, Warm FusionAPPLIQUE, Starboard, Warm Fusion
-
178M0033603 APPLIQUE, Starboard (Mariner)APPLIQUE, Starboard (Mariner)
-
1810-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
198M4501639 SOUND BLANKET KITSOUND BLANKET KIT
-
-37-8M0070755 DECAL SET, (Generic)(Mercury)
SN# 2B034180 & BelowDECAL SET, (Generic)(Mercury)
SN# 2B034180 & Below -
-37-8M0091493 DECAL SET, (Generic)(Mercury)
SN# 2B034181 & UpDECAL SET, (Generic)(Mercury)
SN# 2B034181 & Up -
-37-892870A02 DECAL SET, MarinerDECAL SET, Mariner
-
-37-8M0024870 DECAL, (Mercury Verado)
Air DamDECAL, (Mercury Verado)
Air Dam -
-37-8M0034099 DECAL, (Mercury 200)DECAL, (Mercury 200)
-
-37-8M0113297 DECAL, (Mercury 225)DECAL, (Mercury 225)
-
-37-8M0034101 DECAL, (Mercury 250)
SN# 1B701706 & BelowDECAL, (Mercury 250)
SN# 1B701706 & Below -
-37-8M0034101 DECAL, (Mercury 250)
SN# 1B701707 & UpDECAL, (Mercury 250)
SN# 1B701707 & Up -
-37-8M0113299 DECAL, (Mercury 275)DECAL, (Mercury 275)
-
-37-8M0113300 DECAL, (Merucry 300)
SN# 1B700024 & BelowDECAL, (Merucry 300)
SN# 1B700024 & Below -
-37-8M0113300 DECAL, (Mercury 300)
SN# 1B700025 & UpDECAL, (Mercury 300)
SN# 1B700025 & Up -
-37-8M0025965 DECAL, (Mariner Verado)
Air DamDECAL, (Mariner Verado)
Air Dam -
-37-899324003 DECAL, (Mariner 200)DECAL, (Mariner 200)
-
-37-899324004 DECAL, (Mariner 225)DECAL, (Mariner 225)
-
-37-899324005 DECAL, (Mariner 250)DECAL, (Mariner 250)
-
-37-899324006 DECAL, (Mariner 275)DECAL, (Mariner 275)
-
-37-8M0025964 DECAL, (Mariner 300)DECAL, (Mariner 300)
