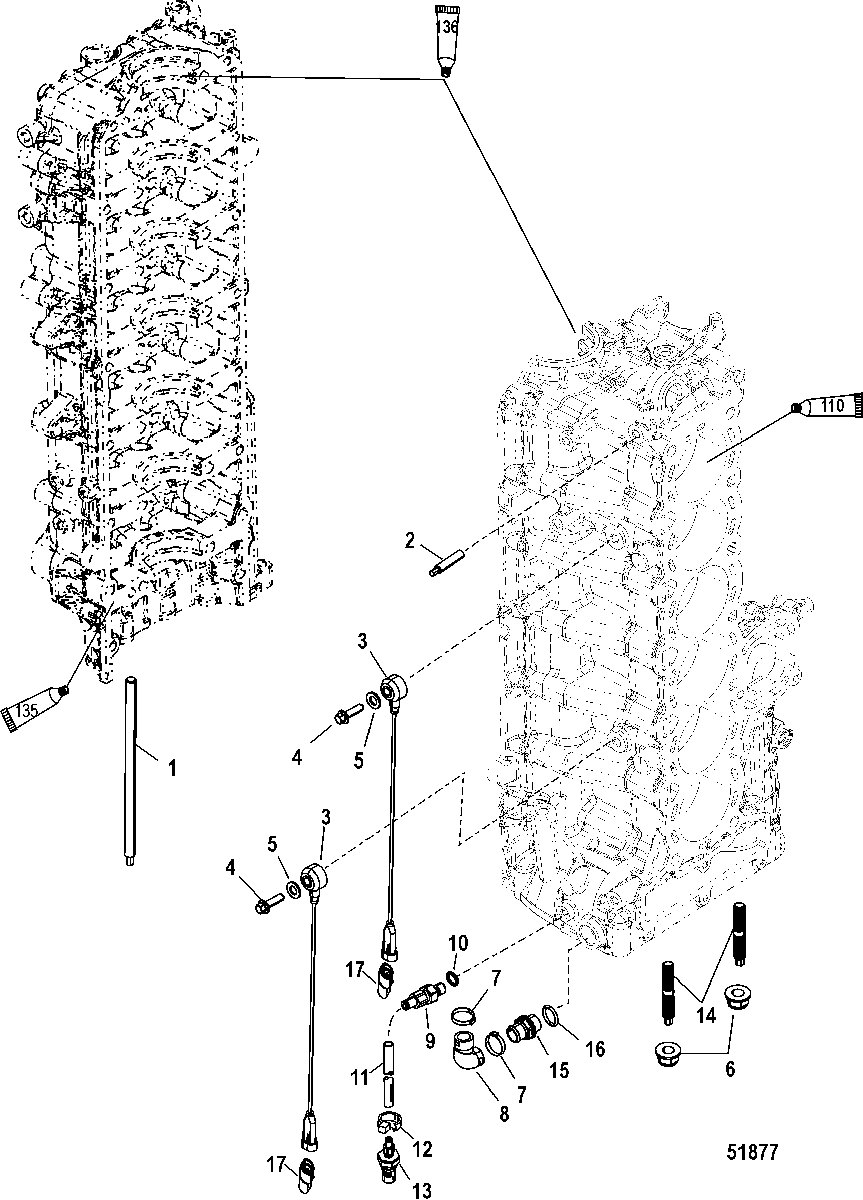

Port Cylinder Block Components для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0P520553 THRU 2B144122
-
№АртикулНазвание
-
116-8M0022158 STUD, (M10 x 205)STUD, (M10 x 205)
-
216-8M0022162 STUDSTUD
-
38M6003194 SENSOR ASSEMBLY, KnockSENSOR ASSEMBLY, Knock
-
410-8M0103830 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
512-4002319 WASHERWASHER
-
611-826365 NUT, (M8)NUT, (M8)
-
754-888988008 CLAMP, (34.6 mm)CLAMP, (34.6 mm)
-
832-885544002 HOSE
SN# 1B831008 & Below, 1B870113 THRU 1B870380HOSE
SN# 1B831008 & Below, 1B870113 THRU 1B870380 -
832-8M0043736 HOSE
SN# 1B831009 thru 1B870112, 1B870381 & UpHOSE
SN# 1B831009 thru 1B870112, 1B870381 & Up -
922-896094A01 FITTING ASSEMBLYFITTING ASSEMBLY
-
1025-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
1132-85978571 TUBING, (52.00 Inches Bulk), To Water Pressure Sensor - Cut to 21.5 InchesTUBING, (52.00 Inches Bulk), To Water Pressure Sensor - Cut to 21.5 Inches
-
1254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
13881879T26 SENSOR, Pressure, WaterSENSOR, Pressure, Water
-
1416-8M0000274 STUD, (M8 x 49)STUD, (M8 x 49)
-
1522-885517A05 FITTING ASSEMBLYFITTING ASSEMBLY
-
1625-892077 O-RINGO-RING
-
17893388A02 CAP, Resistor - 2 Pin, 20K OhmCAP, Resistor - 2 Pin, 20K Ohm
-
-61-895247A07 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
