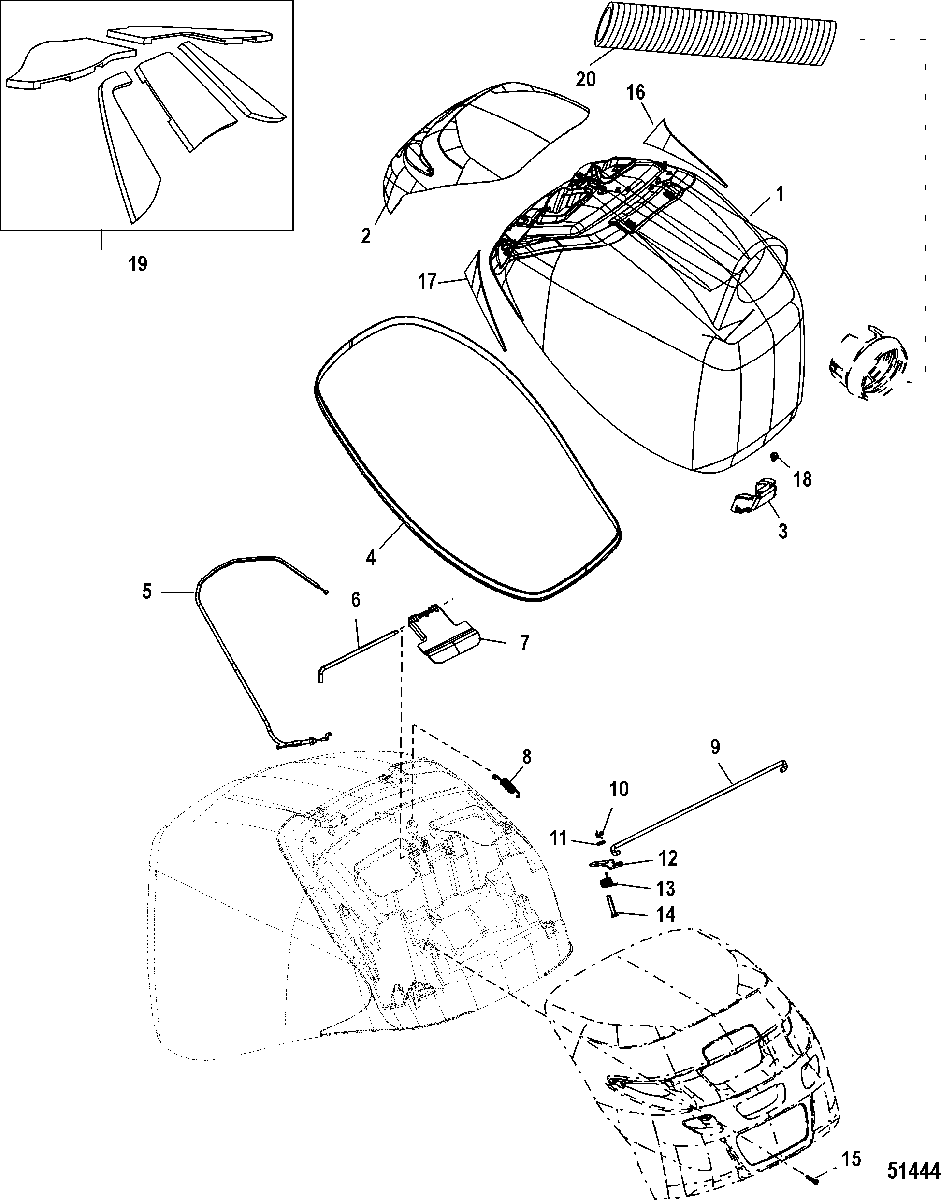

Top Cowl, CCT для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0P520553 THRU 2B144122
-
№АртикулНазвание
-
1100-8M0074520 TOP COWL ASSEMBLY, CCTTOP COWL ASSEMBLY, CCT
-
2NSS NOT SOLD SEPARATE, Air Dam CapNOT SOLD SEPARATE, Air Dam Cap
-
3888971 FRONT LATCH RECEIVERFRONT LATCH RECEIVER
-
4NSS NOT SOLD SEPARATE, SealNOT SOLD SEPARATE, Seal
-
58M0127199 CABLECABLE
-
617-888959 PIN, HingePIN, Hinge
-
7888956 LATCH, Hand LeverLATCH, Hand Lever
-
824-895373 SPRINGSPRING
-
9888955 LINK, Latch ConnectingLINK, Latch Connecting
-
1018-26953 COTTER PINCOTTER PIN
-
1112-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
12888952 LINKAGE ARMLINKAGE ARM
-
1324-888953 SPRINGSPRING
-
1417-822417 PINPIN
-
15NSS NOT SOLD SEPARATE (#8-15 x 1.25)NOT SOLD SEPARATE (#8-15 x 1.25)
-
168M0033614 APPLIQUE, Port (Mercury)(Black)APPLIQUE, Port (Mercury)(Black)
-
178M0033615 APPLIQUE, Starboard (Mercury)(Black)APPLIQUE, Starboard (Mercury)(Black)
-
1810-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
198M4501639 SOUND BLANKET KIT, Cut to fitSOUND BLANKET KIT, Cut to fit
-
2027-8M0072385 GASKETGASKET
-
218M0064952 ADAPTOR, RiggingADAPTOR, Rigging
-
2232-8M0068924 HOSE, 4 InchHOSE, 4 Inch
-
-37-8M0024870 DECAL, (Mercury Verado)DECAL, (Mercury Verado)
-
-37-8M0043703 M-ICON, 66 mm, BlackM-ICON, 66 mm, Black
-
-NSS NOT SOLD SEPARATE, Generic Decal SetNOT SOLD SEPARATE, Generic Decal Set
