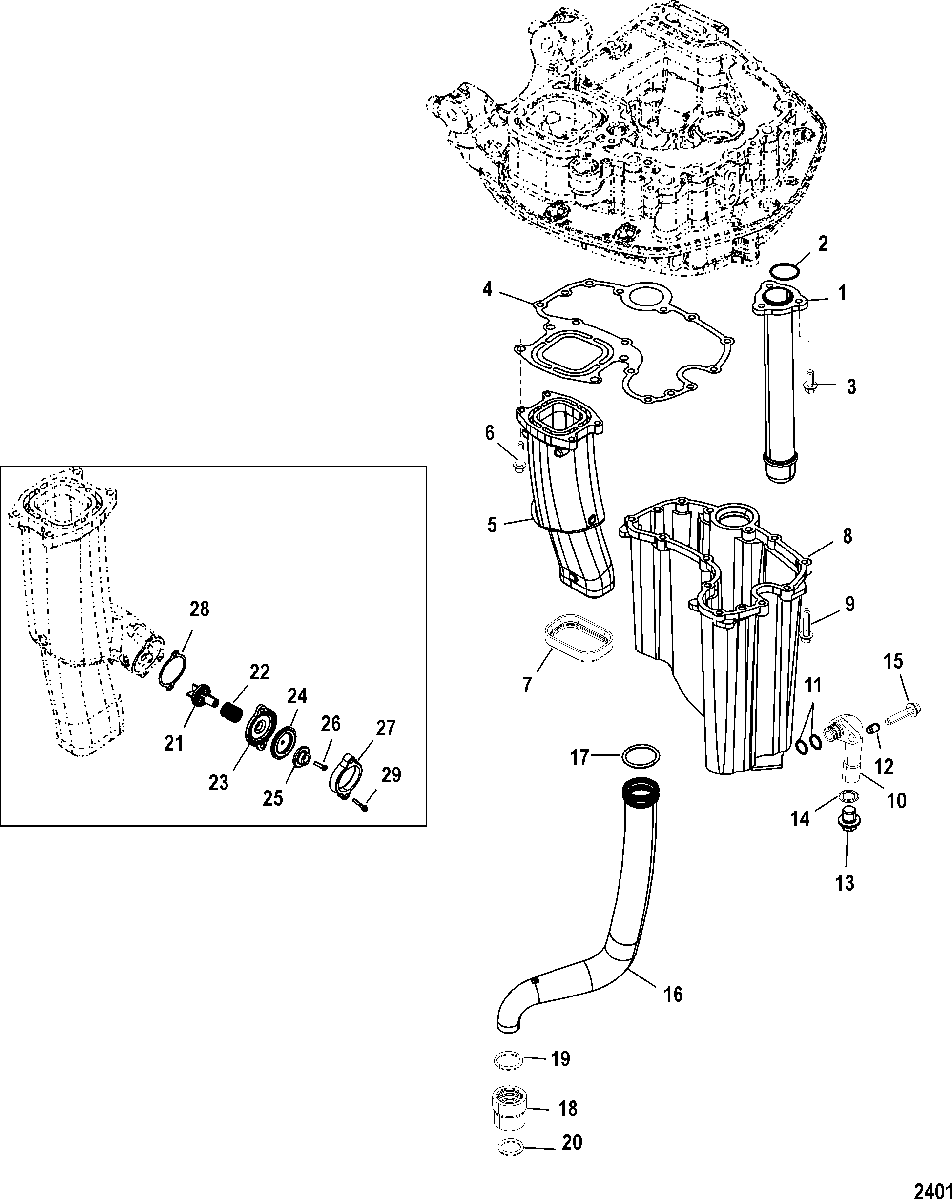

Adaptor Plate-Lower для Mariner - 200 VERADO (4-STROKE)(6 CYL.) 0P520553 THRU 2B144122
-
№АртикулНазвание
-
1887623T03 PICKUP ASSEMBLY, OilPICKUP ASSEMBLY, Oil
-
225-8M0092943 O-RING, (1.239 x .070)O-RING, (1.239 x .070)
-
310-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
427-889618001 GASKET, Oil SumpGASKET, Oil Sump
-
5880626T01 TUBE ASSEMBLY, Exhaust
SN# 2B022644 & BelowTUBE ASSEMBLY, Exhaust
SN# 2B022644 & Below -
58M0080961 TUBE ASSEMBLY, Exhaust
SN# 2B022645 & UpTUBE ASSEMBLY, Exhaust
SN# 2B022645 & Up -
610-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
726-880629 SEAL, Exhaust TubeSEAL, Exhaust Tube
-
8880639T SUMP ASSEMBLY, OilSUMP ASSEMBLY, Oil
-
910-8M0103808 SCREW, (M6 x 30 MM) Stainless SteelSCREW, (M6 x 30 MM) Stainless Steel
-
10887753A02 TUBE ASSEMBLY, Oil Drain
(Long)TUBE ASSEMBLY, Oil Drain
(Long) -
108M0082193 TUBE ASSEMBLY, Oil Drain
(X-Long/XX-Long)TUBE ASSEMBLY, Oil Drain
(X-Long/XX-Long) -
1125-892446 O-RING, (14 X 1.78 MM)O-RING, (14 X 1.78 MM)
-
1217-892228 PIN, DowelPIN, Dowel
-
13888592005 PLUG ASSEMBLY, Oil DrainPLUG ASSEMBLY, Oil Drain
-
1426-888593 SEAL, Drain PlugSEAL, Drain Plug
-
1510-8M0103808 SCREW, (M6 x 30 MM) Stainless SteelSCREW, (M6 x 30 MM) Stainless Steel
-
1632-885541A01 TUBE ASSEMBLY, Water (20.00 Inch)
(Long)TUBE ASSEMBLY, Water (20.00 Inch)
(Long) -
1632-885541A02 TUBE ASSEMBLY, Water (25.00 Inch)
(X-Long)TUBE ASSEMBLY, Water (25.00 Inch)
(X-Long) -
1632-885541A03 TUBE ASSEMBLY, Water (30.00 Inch)
(XX-Long)TUBE ASSEMBLY, Water (30.00 Inch)
(XX-Long) -
1725-892445 O-RINGO-RING
-
1822-887987A1 COUPLINGCOUPLING
-
1925-90196 O-RING, (.921 x .139)O-RING, (.921 x .139)
-
2025-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
218M0114707 POPPET ASSEMBLYPOPPET ASSEMBLY
-
2224-64878 SPRING, (Black)SPRING, (Black)
-
23893385001 RETAINERRETAINER
-
24648771 DIAPHRAGMDIAPHRAGM
-
25889706 WASHERWASHER
-
2610-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
27893384001 COVER, PoppetCOVER, Poppet
-
2827-889561 GASKET, PoppetGASKET, Poppet
-
2910-88552535 SCREW, (M6 x 35 MM) Stainless SteelSCREW, (M6 x 35 MM) Stainless Steel
-
-27-880552A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-895247A07 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
