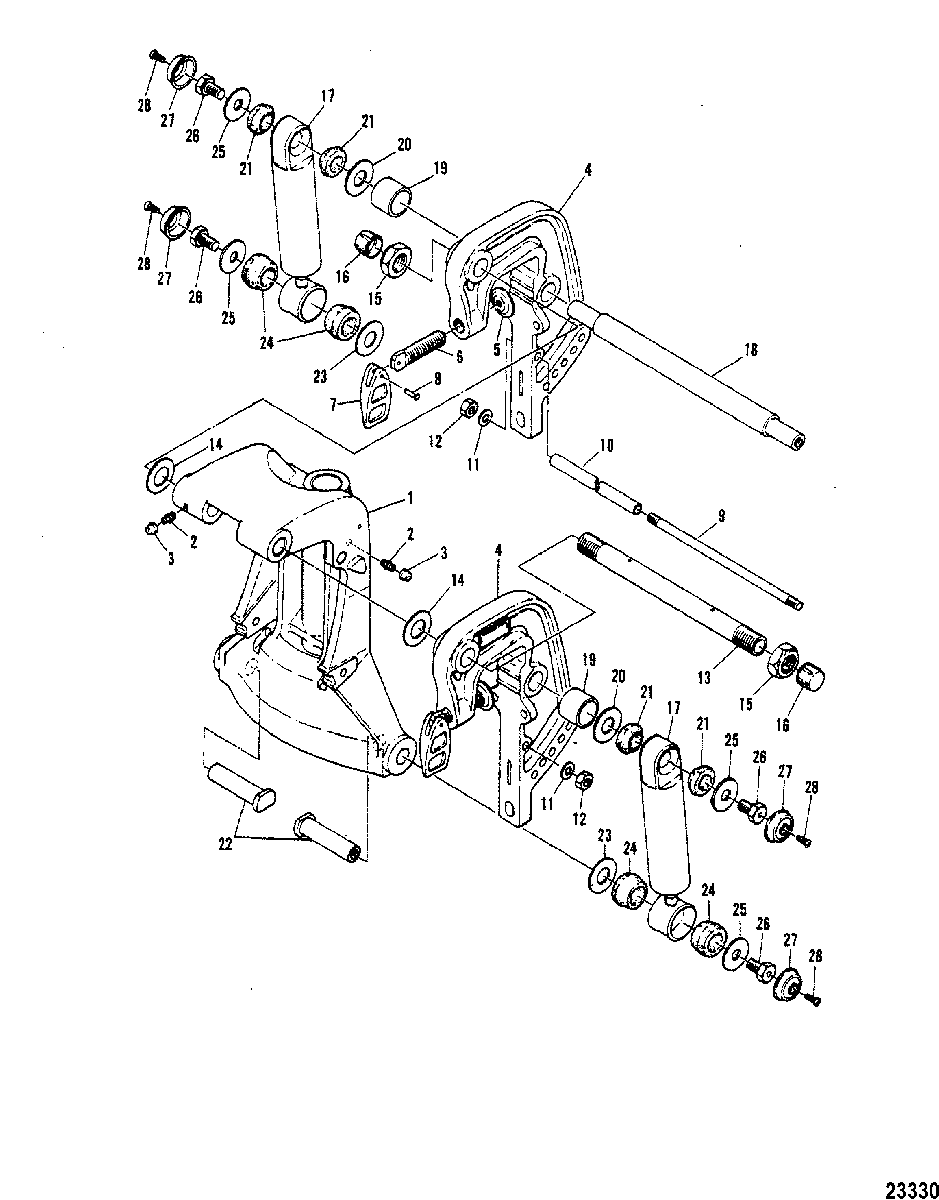

CLAMP AND SWIVEL BRACKET для Mariner - 60 (2 CYL.) E-675-00101 THRU E-675-001170
-
№АртикулНазвание
-
11485-6840M SWIVEL BRACKET (SHORT SHAFT)SWIVEL BRACKET (SHORT SHAFT)
-
11485-6841M SWIVEL BRACKET (LONG SHAFT)SWIVEL BRACKET (LONG SHAFT)
-
222-82369M FITTING, GREASEFITTING, GREASE
-
381439M CAP, GREASE FITTINGCAP, GREASE FITTING
-
41484-6839M CLAMP BRACKETCLAMP BRACKET
-
512-80638M PAD, TRANSOM CLAMP SCREWPAD, TRANSOM CLAMP SCREW
-
610-92649M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
711868M HANDLE, TRANSOM CLAMP SCREWHANDLE, TRANSOM CLAMP SCREW
-
817-81889M PINPIN
-
916-81383M STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1023-81981M SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
1112-82220M WASHERWASHER
-
1211-82395M NUTNUT
-
1310-41312M STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
1412-81836M WASHERWASHER
-
1511-879172252 NUTNUT
-
16811914M CAP, CLAMP BRACKET STUDCAP, CLAMP BRACKET STUD
-
1755-92650M SHOCK ABSORBERSHOCK ABSORBER
-
1817-81386M PIN, UPPER SHOCK MOUNTPIN, UPPER SHOCK MOUNT
-
1923-82120M SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
2012-81830M WASHERWASHER
-
2123-81939M BUSHINGBUSHING
-
2217-81384M PIN, LOWER SHOCK MOUNTPIN, LOWER SHOCK MOUNT
-
2312-81859M WASHERWASHER
-
2423-81938M BUSHINGBUSHING
-
2512-81812M WASHERWASHER
-
2610-81718M BOLTBOLT
-
2792651M COVER, SHOCK MOUNTCOVER, SHOCK MOUNT
-
2810-95467M SCREWSCREW
