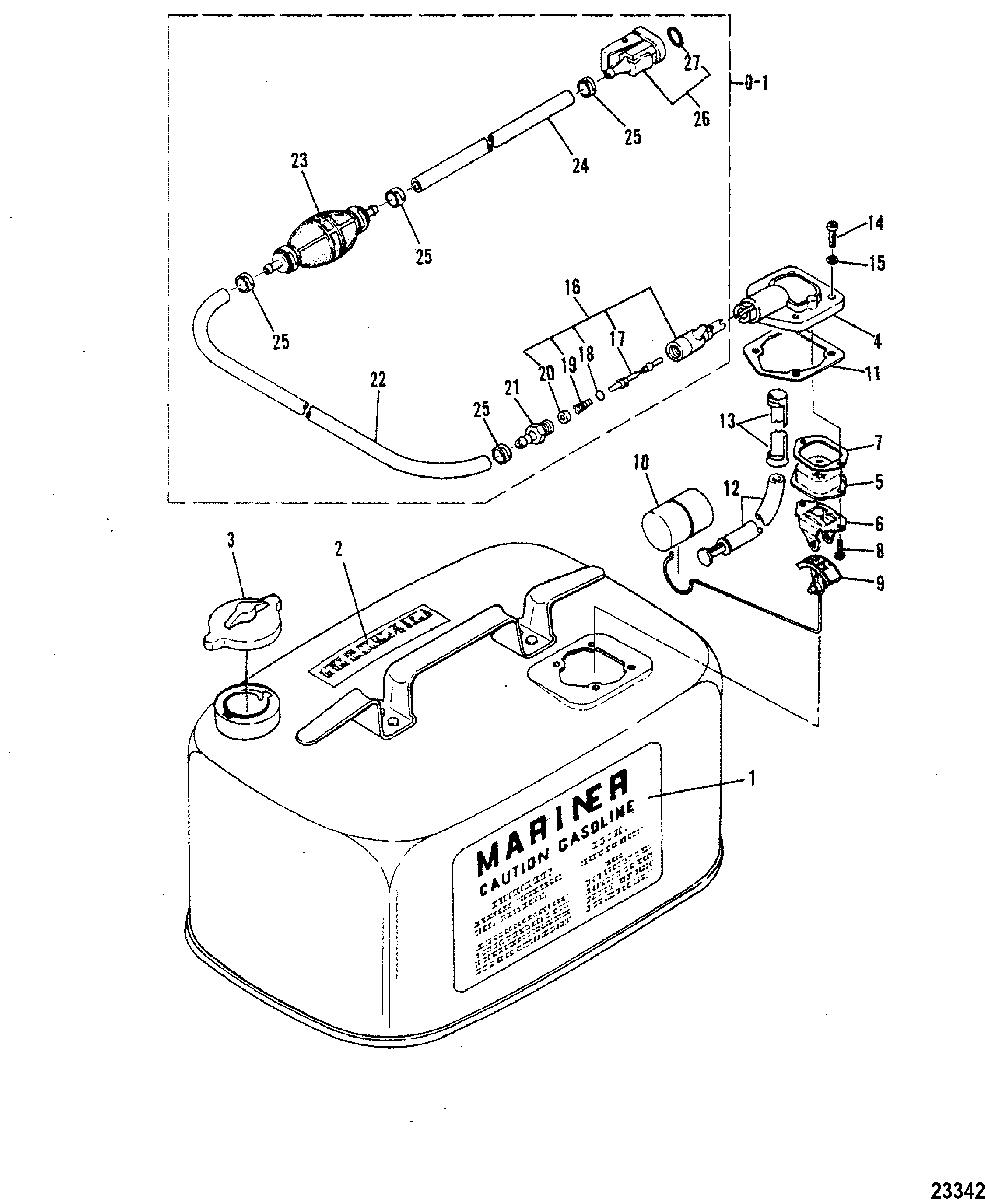

FUEL TANK(S-675-00451/L-675-32876 & UP) для Mariner - 60 (2 CYL.) E-675-00101 THRU E-675-001170
-
№АртикулНазвание
-
0-11651-8612M GEAR HOUSING ASSEMBLY (SHORT SHAFT)GEAR HOUSING ASSEMBLY (SHORT SHAFT)
-
0-11651-8613M GEAR HOUSING ASSEMBLY (LONG SHAFT)GEAR HOUSING ASSEMBLY (LONG SHAFT)
-
11651-7971M GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
281449M GUIDE, SEALGUIDE, SEAL
-
322-81924M PLUGPLUG
-
427-81987 GASKETGASKET
-
581445M COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
625-82281M O-RING, COVER TO GEAR HOUSINGO-RING, COVER TO GEAR HOUSING
-
726-82257M SEAL, Oil, GEAR HOUSING COVERSEAL, Oil, GEAR HOUSING COVER
-
810-826957M BOLTBOLT
-
912-82214M WASHERWASHER
-
1081408M ROD, SHIFT - LOWERROD, SHIFT - LOWER
-
1153-82334M RING, SnapRING, Snap
-
1281409M CAM, SHIFTCAM, SHIFT
-
1345-81451M DRIVESHAFT (SHORT SHAFT)DRIVESHAFT (SHORT SHAFT)
-
1345-81452M DRIVESHAFT (LONG SHAFT)DRIVESHAFT (LONG SHAFT)
-
1428-81912M KEY, DRIVESHAFT TO IMPELLERKEY, DRIVESHAFT TO IMPELLER
-
1531-82319T BEARING, DRIVESHAFTBEARING, DRIVESHAFT
-
1615-81467M SHIM, DRIVESHAFT BEARING (.05MM)SHIM, DRIVESHAFT BEARING (.05MM)
-
1615-81468M SHIM, DRIVESHAFT BEARING (.08MM)SHIM, DRIVESHAFT BEARING (.08MM)
-
1615-19148002 SHIM, DRIVESHAFT BEARING (.12MM)SHIM, DRIVESHAFT BEARING (.12MM)
-
1615-19148004 SHIM, DRIVESHAFT BEARING (.30MM)SHIM, DRIVESHAFT BEARING (.30MM)
-
1615-19153M SHIM, DRIVESHAFT BEARING (.50MM)SHIM, DRIVESHAFT BEARING (.50MM)
-
1723-81453M SLEEVE, DRIVESHAFTSLEEVE, DRIVESHAFT
-
1831-82316T BEARING, NEEDLE- DRIVESHAFTBEARING, NEEDLE- DRIVESHAFT
-
1912-81455M BEARING, DRIVESHAFTBEARING, DRIVESHAFT
-
2011-81772M NUT, DRIVESHAFTNUT, DRIVESHAFT
-
2143-82991M GEAR SETGEAR SET
-
2243-84208M GEAR, PINIONGEAR, PINION
-
2343-84206M GEAR, FORWARDGEAR, FORWARD
-
2443-84207M GEAR, REVERSEGEAR, REVERSE
-
2515-81456M SHIM, FORWARD GEAR ADJUST (.05MM)SHIM, FORWARD GEAR ADJUST (.05MM)
-
2515-81457M SHIM, FORWARD GEAR ADJUST (.08MM)SHIM, FORWARD GEAR ADJUST (.08MM)
-
2515-19148003 SHIM, FORWARD GEAR ADJUST (.12MM)SHIM, FORWARD GEAR ADJUST (.12MM)
-
2515-19158M SHIM, FORWARD GEAR ADJUST (.30MM)SHIM, FORWARD GEAR ADJUST (.30MM)
-
2515-81460M SHIM, FORWARD GEAR ADJUST (.50MM)SHIM, FORWARD GEAR ADJUST (.50MM)
-
2631-82320T BEARING, FORWARD GEARBEARING, FORWARD GEAR
-
2752-81473T CLUTCHCLUTCH
-
2817-81903M PIN, CLUTCHPIN, CLUTCH
-
2981474M RING, CROSS PINRING, CROSS PIN
-
3092643M PLUNGER, SHIFTPLUNGER, SHIFT
-
3181475M SLIDE, SHIFTSLIDE, SHIFT
-
3224-82091M SPRING, SHIFTSPRING, SHIFT
-
3344-92644M SHAFT, PROPELLERSHAFT, PROPELLER
-
3412-81837M WASHER, REVERSE GEARWASHER, REVERSE GEAR
-
3515-81462M SHIM, REVERSE GEAR ADJ (.05MM)SHIM, REVERSE GEAR ADJ (.05MM)
-
3515-81463M SHIM, REVERSE GEAR ADJ (.08MM)SHIM, REVERSE GEAR ADJ (.08MM)
-
3515-19163002 SHIM, REVERSE GEAR ADJ (.12MM)SHIM, REVERSE GEAR ADJ (.12MM)
-
3515-19163001 SHIM, REVERSE GEAR ADJ (.30MM)SHIM, REVERSE GEAR ADJ (.30MM)
-
3515-19165M SHIM, REVERSE GEAR ADJ (.50MM)SHIM, REVERSE GEAR ADJ (.50MM)
-
3612-81461M WASHER, REVERSE GEARWASHER, REVERSE GEAR
-
3730-82296T BEARING, REVERSE GEARBEARING, REVERSE GEAR
-
3825-82289M O-RING, BEARING HOUSINGO-RING, BEARING HOUSING
-
3981446M CARRIER, BearingCARRIER, Bearing
-
4028-81916M KEYKEY
-
4131-82317M BEARING, NEEDLE - PROPELLER SHAFTBEARING, NEEDLE - PROPELLER SHAFT
-
4226-854017 SEAL, Oil, PROPELLER SHAFTSEAL, Oil, PROPELLER SHAFT
-
4314-81877M WASHER, CLAWWASHER, CLAW
-
4411-8M0059031 NUTNUT
-
4546-81416M BODY, WATER PUMPBODY, WATER PUMP
-
4681419M INSERT, CARTRIDGEINSERT, CARTRIDGE
-
4747-97108M IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
4827-81417 GASKET, WATER PUMPGASKET, WATER PUMP
-
4981420M OUTER PLATE, CARTRIDGEOUTER PLATE, CARTRIDGE
-
5027-81421M GASKET, CARTRIDGE OUTER PLATEGASKET, CARTRIDGE OUTER PLATE
-
5146-81422M BASE, WATER PUMPBASE, WATER PUMP
-
5227-81418M GASKETGASKET
-
5325-82275M O-RINGO-RING
-
5426-82234M SEAL, Oil, WATER PUMPSEAL, Oil, WATER PUMP
-
5517-82354M PIN, DOWELPIN, DOWEL
-
5610-84057M BOLTBOLT
-
5710-85277614 BOLTBOLT
-
5812-82217M WASHERWASHER
-
5926-81426M SEAL, WATER TUBE - UPPERSEAL, WATER TUBE - UPPER
-
6081448M SEAL, RUBBERSEAL, RUBBER
-
6119166M COVER, WATER INLET - PORTCOVER, WATER INLET - PORT
-
6219167M COVER, WATER INLET - STARBOARDCOVER, WATER INLET - STARBOARD
-
6310-82484M SCREWSCREW
-
6411-8528165 NUTNUT
-
6517-82364M PIN, DowelPIN, Dowel
-
6610-91636M BOLTBOLT
-
6713-82218M LOCKWASHERLOCKWASHER
-
6810-43103M BOLTBOLT
-
6913-82215M LOCKWASHERLOCKWASHER
-
7083859T TRIM TABTRIM TAB
-
7110-82801M BOLTBOLT
-
7298937M GUIDE, REVERSE RODGUIDE, REVERSE ROD
-
7381410M CAM, REVERSE RODCAM, REVERSE ROD
-
7473345A1 THRUST WASHERTHRUST WASHER
-
75859935 NUT, PROPELLERNUT, PROPELLER
-
7618-95295 PIN, COTTERPIN, COTTER
-
7712-81852M WASHER, WATER TUBEWASHER, WATER TUBE
-
7832-81424M TUBE, WATER (SHORT SHAFT)TUBE, WATER (SHORT SHAFT)
-
7832-81425M TUBE, WATER (LONG SHAFT)TUBE, WATER (LONG SHAFT)
-
7925-81989M O-RING, WATER TUBEO-RING, WATER TUBE
-
8081428M SET PLATE, WATER TUBESET PLATE, WATER TUBE
-
8110-91772M BOLTBOLT
-
8213-82212M LOCKWASHERLOCKWASHER
-
8326-81427M SEAL, WATER TUBE - LOWERSEAL, WATER TUBE - LOWER
-
8422-8M0121335 PLUG, FLUSH (OPT)PLUG, FLUSH (OPT)
-
-27-84179M GASKET SETGASKET SET
-
-84188T REPAIR KITREPAIR KIT
-
137-82984M DECAL, SIDEDECAL, SIDE
-
237-82962M DECAL, TOPDECAL, TOP
-
327-83627M GASKETGASKET
-
483618M METER ASSEMBLY, FuelMETER ASSEMBLY, Fuel
-
580269M LENS, INDICATORLENS, INDICATOR
-
680268M BRACKET, INDICATORBRACKET, INDICATOR
-
727-17540M GASKETGASKET
-
810-83523M SCREWSCREW
-
981318M INDICATOR, FUEL LEVELINDICATOR, FUEL LEVEL
-
1081319M FLOAT, INDICATORFLOAT, INDICATOR
-
1127-81320M GASKET, HOUSING TO TANKGASKET, HOUSING TO TANK
-
1232-94727M HOSE, PICKUPHOSE, PICKUP
-
1354-83764M CLAMP, PICKUP HOSECLAMP, PICKUP HOSE
-
1410-83356M SCREW, HOUSING ATTACHINGSCREW, HOUSING ATTACHING
-
1512-95501M WASHER, HOUSING SCREWWASHER, HOUSING SCREW
-
0-132-877681Q8 LINE ASSEMBLY, FuelLINE ASSEMBLY, Fuel
-
1630185Q3 BAYONET BODY ASSEMBLYBAYONET BODY ASSEMBLY
-
1730185Q3 STEM, BAYONET BODYSTEM, BAYONET BODY
-
1825-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
1924-30189 SPRING, BAYONET BODY STEMSPRING, BAYONET BODY STEM
-
2030188 WASHER, CAPWASHER, CAP
-
2122-63187 FITTING, Barb (.250-18), FUEL LINEFITTING, Barb (.250-18), FUEL LINE
-
2232-94727M HOSE, CONNECTOR HOUSING TO BULBHOSE, CONNECTOR HOUSING TO BULB
-
2389396Q01 PRIMER BULB, PRIMERPRIMER BULB, PRIMER
-
2432-94727M HOSE, BULB TO CONNECTORHOSE, BULB TO CONNECTOR
-
2554-16725M CLAMP, HOSECLAMP, HOSE
-
2622-14213Q HOUSING ASSEMBLY, ENGINE ENDHOUSING ASSEMBLY, ENGINE END
-
2725-82789M O-RINGO-RING
