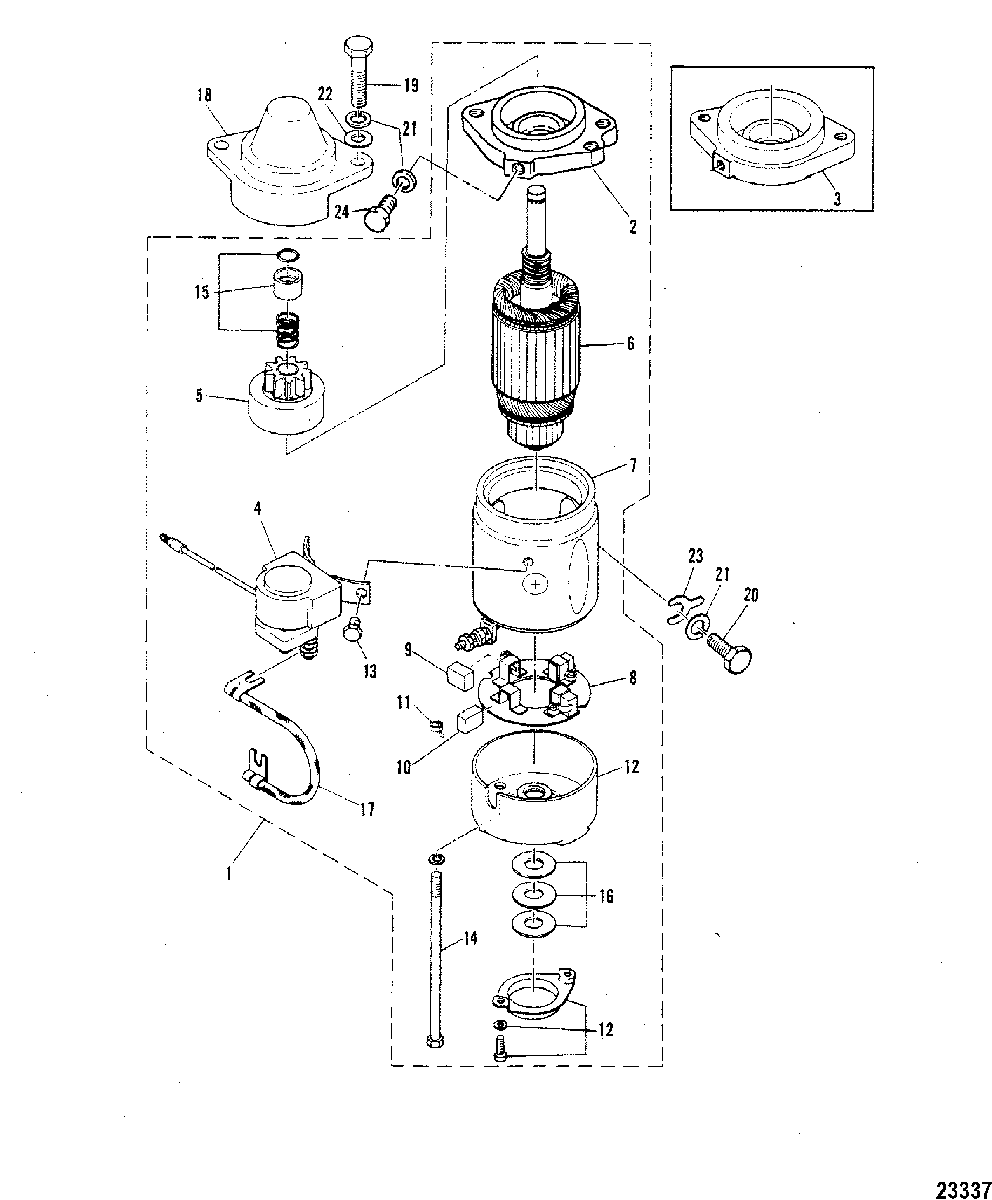

ELECTRIC STARTER MOTOR для Mariner - 60 (2 CYL.) E-675-00101 THRU E-675-001170
-
№АртикулНазвание
-
150-97072T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
283654M BRACKET, Front
SN# S-675-00526/L-675-33576 & UpBRACKET, Front
SN# S-675-00526/L-675-33576 & Up -
383654M BRACKET, Front
SN# S-675-00525/L-675-33575 & BelowBRACKET, Front
SN# S-675-00525/L-675-33575 & Below -
489-81513M SWITCHSWITCH
-
581504T GEARGEAR
-
683651M ARMATURE
SN# S-675-00525/L-675-33575 & BelowARMATURE
SN# S-675-00525/L-675-33575 & Below -
683651M ARMATURE
SN# S-675-00526/L-675-33576 & UpARMATURE
SN# S-675-00526/L-675-33576 & Up -
781493M STATORSTATOR
-
881507M HOLDER, BrushHOLDER, Brush
-
981494M BRUSH (+)BRUSH (+)
-
1081495M BRUSH (-)BRUSH (-)
-
1124-81496M SPRING, BRUSHSPRING, BRUSH
-
1281499M REAR COVERREAR COVER
-
1310-84088M BOLTBOLT
-
1410-81500M BOLTBOLT
-
1592671M RING, STOPRING, STOP
-
1612-83652M WASHER KIT
SN# S-675-00526/L-675-33576 & UpWASHER KIT
SN# S-675-00526/L-675-33576 & Up -
1612-81491M WASHER KIT
SN# S-675-00525/L-675-33575 & BelowWASHER KIT
SN# S-675-00525/L-675-33575 & Below -
1781497M WIRE, LEADWIRE, LEAD
-
1881508M COVERCOVER
-
1910-84236M BOLTBOLT
-
2010-84342M BOLTBOLT
-
2113-82215M WASHERWASHER
-
2212-82217M WASHERWASHER
-
2381485M TERMINALTERMINAL
-
2410-82437M BOLTBOLT
