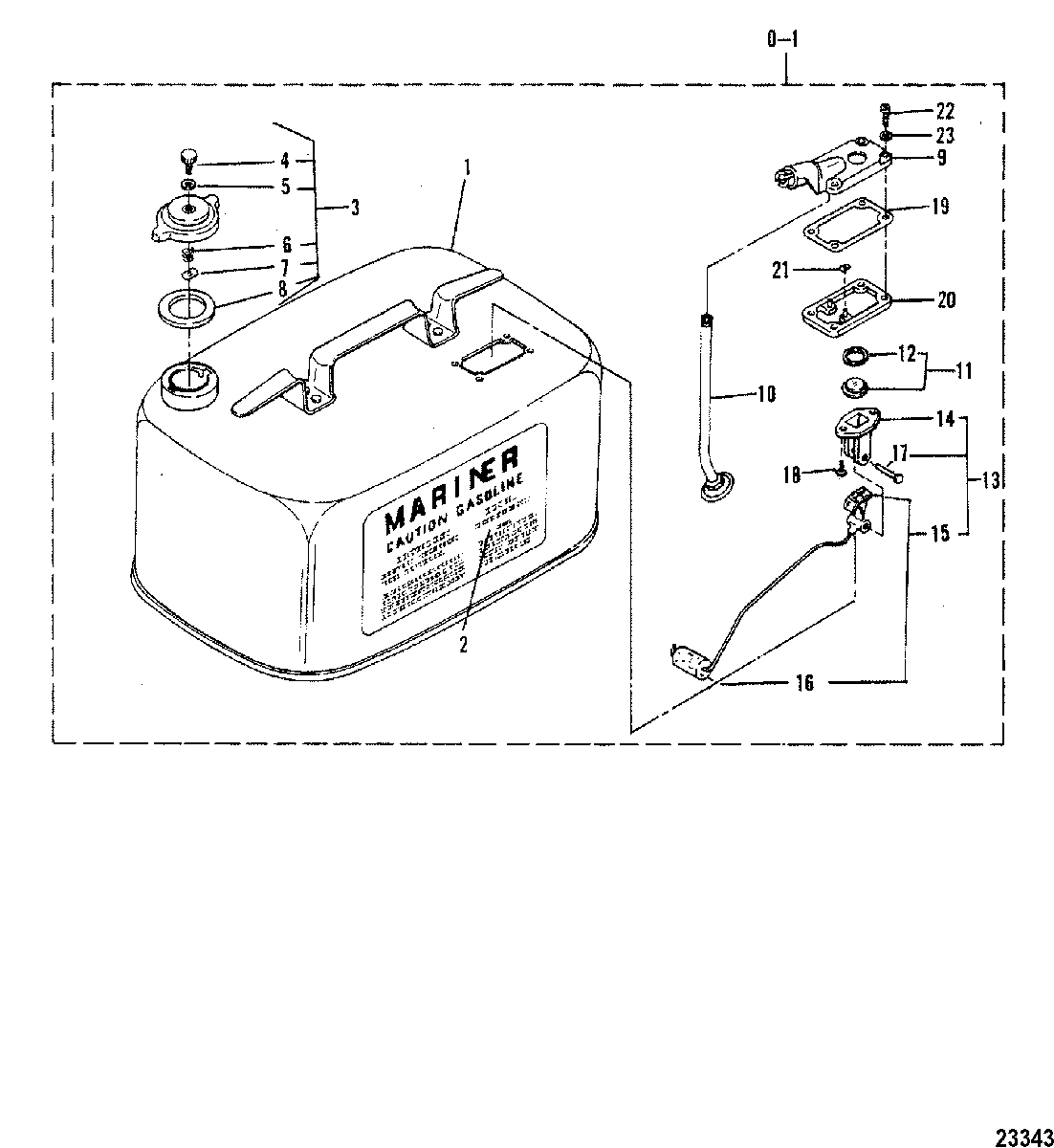

FUEL TANK(22.7 LITRE)(6 GALLON) для Mariner - 60 (2 CYL.) E-675-00101 THRU E-675-001170
-
№АртикулНазвание
-
0-11259-812410A1 TANK ASSEMBLY, Fuel - Complete
SN# S-675-00101/L-675-30101 THRU S-675-00450/L-675-32876TANK ASSEMBLY, Fuel - Complete
SN# S-675-00101/L-675-30101 THRU S-675-00450/L-675-32876 -
11259-812410A1 TANK, FuelTANK, Fuel
-
237-13921 DECALDECAL
-
336-18962M CAP ASSEMBLY, FillerCAP ASSEMBLY, Filler
-
410-25575 SCREW, VENT-FILLER CAPSCREW, VENT-FILLER CAP
-
512-49221 WASHER, (.187 x .500 x .062) Neoprene, VENT SCREWWASHER, (.187 x .500 x .062) Neoprene, VENT SCREW
-
624-22227 SPRING, TENSION-VENT SCREWSPRING, TENSION-VENT SCREW
-
711-28587 NUT, SPEED-SPRING RETAINERNUT, SPEED-SPRING RETAINER
-
827-41065 GASKET, FILLER CAP TO FUEL TANKGASKET, FILLER CAP TO FUEL TANK
-
0-264841A1 CONNECTOR/GAUGE ASSEMBLY, COMPLETECONNECTOR/GAUGE ASSEMBLY, COMPLETE
-
917792A1 COVER, FUEL TANKCOVER, FUEL TANK
-
1032-75239 TUBETUBE
-
1198542A1 LENS ASSEMBLY, FUEL GAUGELENS ASSEMBLY, FUEL GAUGE
-
1298542A1 GASKET, FUEL GAUGE LENSGASKET, FUEL GAUGE LENS
-
1328897A2 GAUGE ASSEMBLY, Fuel, COMPLETEGAUGE ASSEMBLY, Fuel, COMPLETE
-
1420430 RETAINER, FUEL GAUGERETAINER, FUEL GAUGE
-
1528897A1 INDICATOR AND FLOAT ASSEMBLYINDICATOR AND FLOAT ASSEMBLY
-
1699274 FLOAT, FUEL GAUGEFLOAT, FUEL GAUGE
-
1717-20426 RIVET, INDICATOR TO RETAINERRIVET, INDICATOR TO RETAINER
-
1810-62568 SCREW, (#10-16 x .375), RETAINER TO FUEL TANK COVERSCREW, (#10-16 x .375), RETAINER TO FUEL TANK COVER
-
1927-28862 GASKET, COVER ASEMBLY TO FRAMEGASKET, COVER ASEMBLY TO FRAME
-
2028860 FRAME, RETAINING-FUEL TANK COVERFRAME, RETAINING-FUEL TANK COVER
-
2111-28903 NUT, RETAINING FRAME TO FUEL TANKNUT, RETAINING FRAME TO FUEL TANK
-
2210-20411 SCREW, (.190-24 x .62), FUEL TANK COVER TO FUEL TANKSCREW, (.190-24 x .62), FUEL TANK COVER TO FUEL TANK
-
2312-29070 WASHER, FUEL TANK COVER FASTENING SCREWWASHER, FUEL TANK COVER FASTENING SCREW
