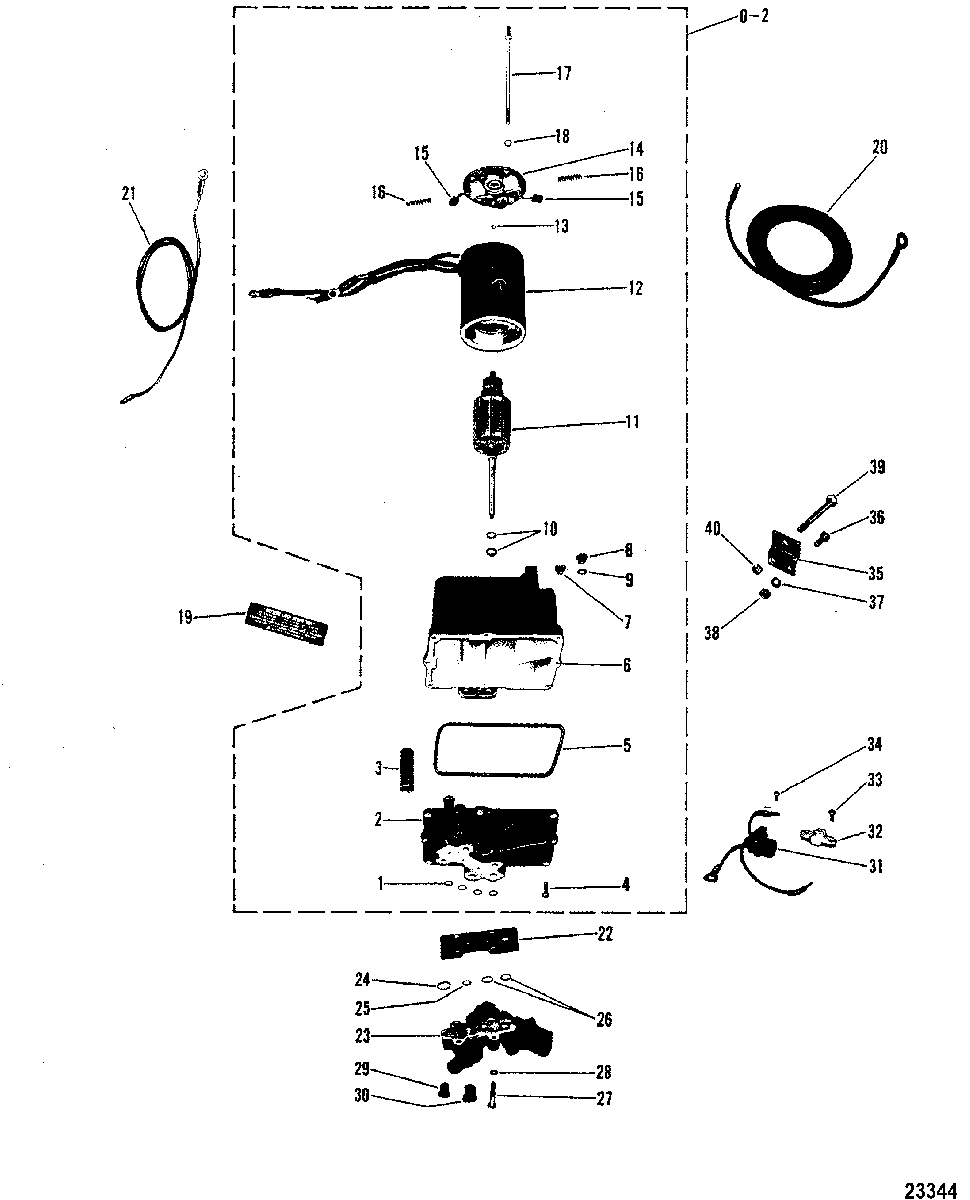

POWER TRIM(OPTIONAL) для Mariner - 60 (2 CYL.) E-675-00101 THRU E-675-001170
-
№АртикулНазвание
-
0-176509A24 POWER TRIM KITPOWER TRIM KIT
-
0-292975A32 PUMP ASSEMBLY, HydraulicPUMP ASSEMBLY, Hydraulic
-
125-48171 O-RING, PUMP BASEO-RING, PUMP BASE
-
2392-7734 VALVE BODY AND GEAR ASSEMBLYVALVE BODY AND GEAR ASSEMBLY
-
3392-2618 CAN, VALVE BODYCAN, VALVE BODY
-
410-20411 SCREW, (.190-24 x .62), VALVE TO RESERVOIRSCREW, (.190-24 x .62), VALVE TO RESERVOIR
-
5392-7735 SEAL, VALVE TO RESERVOIRSEAL, VALVE TO RESERVOIR
-
6392-2939 RESERVOIR ASSEMBLYRESERVOIR ASSEMBLY
-
710-62269 SCREW, VENTSCREW, VENT
-
810-79953Q04 SCREW, (.375-16), FILLSCREW, (.375-16), FILL
-
912-191833 WASHER, FILL SCREWWASHER, FILL SCREW
-
10392-2623 WASHER, ARMATUREWASHER, ARMATURE
-
11392-2943 ARMATUREARMATURE
-
12392-2942 FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
13392-2944 BALL, END PLATEBALL, END PLATE
-
14392-2940 PLATE ASSEMBLYPLATE ASSEMBLY
-
15392-8989 BRUSH SETBRUSH SET
-
16392-2529 SPRING SETSPRING SET
-
17392-2938 BOLT SETBOLT SET
-
1813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1937-55901 DECAL, INSTRUCTIONDECAL, INSTRUCTION
-
2032979 LEAD, Battery (+)LEAD, Battery (+)
-
2132988 LEAD, Battery (-)LEAD, Battery (-)
-
2245336 PLATE, MANIFOLDPLATE, MANIFOLD
-
2345197A2 VALVE ASSEMBLY, ControlVALVE ASSEMBLY, Control
-
-25-48171 O-RINGO-RING
-
2425-45254 O-RING, VALVE TO MANIFOLDO-RING, VALVE TO MANIFOLD
-
2525-48171 O-RING, VALVE TO MANIFOLDO-RING, VALVE TO MANIFOLD
-
2625-45253 O-RING, VALVE TO MANIFOLDO-RING, VALVE TO MANIFOLD
-
2710-56500 SCREW, (.250-28 x 1.250), VALVE ATTACHINGSCREW, (.250-28 x 1.250), VALVE ATTACHING
-
2813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2922-38609 PLUG, VALVE (3/8 INCH)PLUG, VALVE (3/8 INCH)
-
3022-46008 PLUG, VALVE (1/2 INCH)PLUG, VALVE (1/2 INCH)
-
3184-74023A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
3245559 TERMINAL BLOCK, PUMPTERMINAL BLOCK, PUMP
-
3310-35519 SCREW, (#10-16 x .500), BLOCK TO PUMPSCREW, (#10-16 x .500), BLOCK TO PUMP
-
3410-62568 SCREW, (#10-16 x .375), HARNESS TO BLOCKSCREW, (#10-16 x .375), HARNESS TO BLOCK
-
3545377T BRACKET, PUMP MOUNTINGBRACKET, PUMP MOUNTING
-
3610-35386 SCREW, (.312-18 x 1.00), BRACKET TO PUMPSCREW, (.312-18 x 1.00), BRACKET TO PUMP
-
3713-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
3811-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
3910-68298 BOLT, (.375-16 x 3.250), PUMP TO BOATBOLT, (.375-16 x 3.250), PUMP TO BOAT
-
4011-82670912 NUT, (.375-16)NUT, (.375-16)
