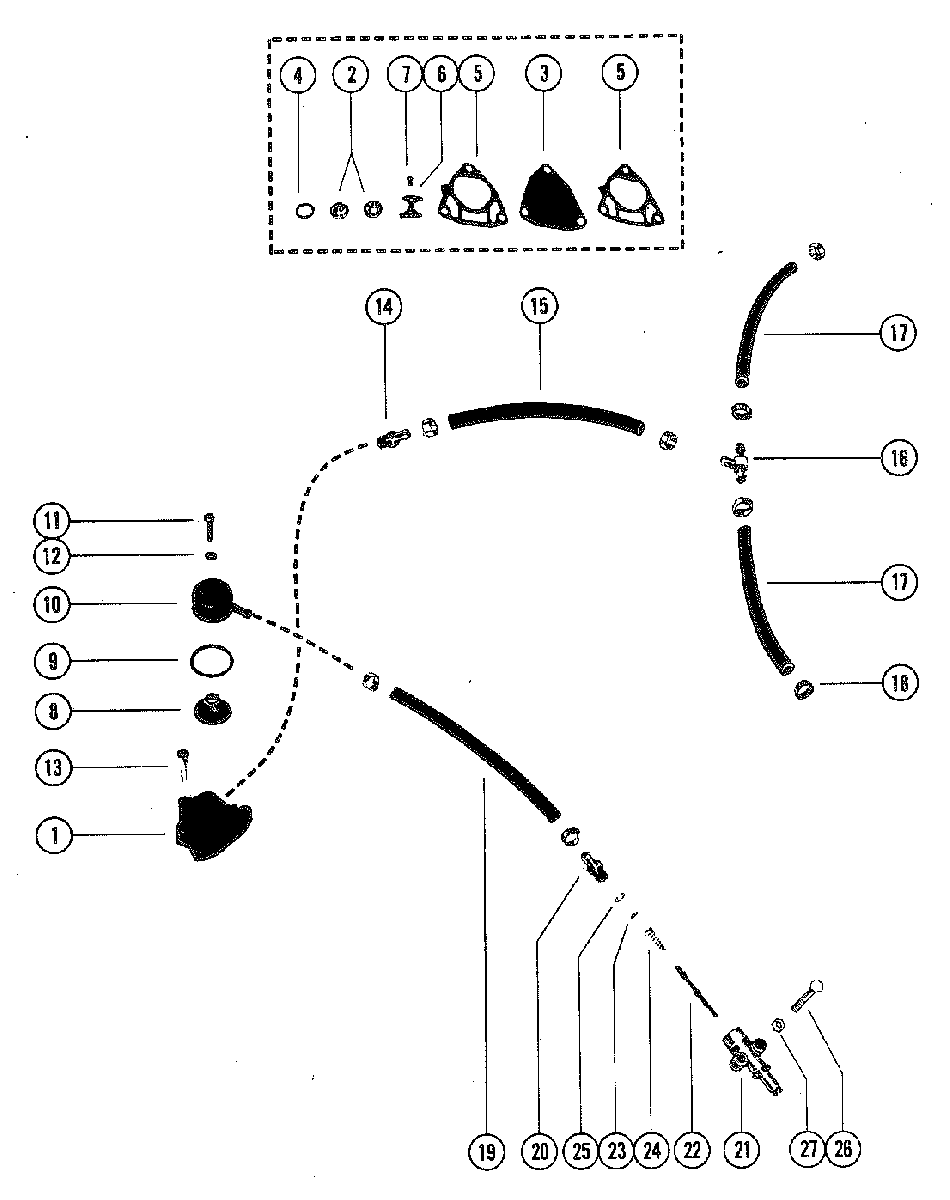

FUEL PUMP AND FUEL LINES для Mariner - 80 8066915 AND UP
-
№АртикулНазвание
-
173434A5 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
221-8M0084276 CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
355278A5 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
490-8M0143356 GASKET, CHECK VALVEGASKET, CHECK VALVE
-
590-8M0143356 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
623004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
710-43725 SCREW, CHECK VALVE TO FUEL PUMP (1/4")SCREW, CHECK VALVE TO FUEL PUMP (1/4")
-
835-73532 FUEL FILTERFUEL FILTER
-
925-35480 "O" RING, COVER TO FUEL PUMP"O" RING, COVER TO FUEL PUMP
-
1035-14805A2 COVER, FUEL PUMPCOVER, FUEL PUMP
-
1110-37370 SCREW, COVER TO FUEL PUMP (5/8")SCREW, COVER TO FUEL PUMP (5/8")
-
1227-25848 GASKET, COVER SCREWGASKET, COVER SCREW
-
1310-70939 SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1-7/8")SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1-7/8")
-
1310-69067 SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1-3/8")SCREW, FUEL PUMP TO UPPER TRANSFER COVER (1-3/8")
-
1422-64705 FITTING, FUEL PUMP (OUTLET)FITTING, FUEL PUMP (OUTLET)
-
1532-8M0108355 FUEL LINE, TEE TO FUEL PUMP (11")FUEL LINE, TEE TO FUEL PUMP (11")
-
1622-73318 TEE, FUEL LINETEE, FUEL LINE
-
1732-8M0108355 FUEL LINE, CARBURETOR TO TEE TO CARBURETOR (3")FUEL LINE, CARBURETOR TO TEE TO CARBURETOR (3")
-
1854-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
1932-8M0108355 FUEL LINE, ADAPTOR TO FUEL PUMP (15")FUEL LINE, ADAPTOR TO FUEL PUMP (15")
-
2022-63187 FITTING, FUEL LINE TO ADAPTORFITTING, FUEL LINE TO ADAPTOR
-
2122833 ADAPTOR, CHECK UNIT (FUEL LINE)
-IDENTIFIED BY 73419 CASTING ON REF. #21ADAPTOR, CHECK UNIT (FUEL LINE)
-IDENTIFIED BY 73419 CASTING ON REF. #21 -
2223069 STEM, CHECK UNIT ADAPTOR
-IDENTIFIED BY 73419 CASTING ON REF. #21STEM, CHECK UNIT ADAPTOR
-IDENTIFIED BY 73419 CASTING ON REF. #21 -
2325-16524 "O"RING, ADAPTOR STEM
-IDENTIFIED BY 73419 CASTING ON REF. #21"O"RING, ADAPTOR STEM
-IDENTIFIED BY 73419 CASTING ON REF. #21 -
2424-23067T SPRING, ADAPTOR STEM
-IDENTIFIED BY 73419 CASTING ON REF. #21SPRING, ADAPTOR STEM
-IDENTIFIED BY 73419 CASTING ON REF. #21 -
2130186 ADAPTOR, CHECK UNIT (FUEL LINE)
-IDENTIFIED BY 30186 CASTING ON REF. #21ADAPTOR, CHECK UNIT (FUEL LINE)
-IDENTIFIED BY 30186 CASTING ON REF. #21 -
2230185Q3 STEM, CHECK UNIT ADAPTOR
-IDENTIFIED BY 30186 CASTING ON REF. #21STEM, CHECK UNIT ADAPTOR
-IDENTIFIED BY 30186 CASTING ON REF. #21 -
2325-16524 "O"RING, ADAPTOR STEM
-IDENTIFIED BY 30186 CASTING ON REF. #21"O"RING, ADAPTOR STEM
-IDENTIFIED BY 30186 CASTING ON REF. #21 -
2424-30189 SPRING, ADAPTOR STEM
-IDENTIFIED BY 30186 CASTING ON REF. #21SPRING, ADAPTOR STEM
-IDENTIFIED BY 30186 CASTING ON REF. #21 -
2530188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2610-36154 SCREW, ADAPTOR TO BOTTOM COWL (1-3/8")SCREW, ADAPTOR TO BOTTOM COWL (1-3/8")
-
2711-36069 NUT, ADAPTOR SCREWNUT, ADAPTOR SCREW
