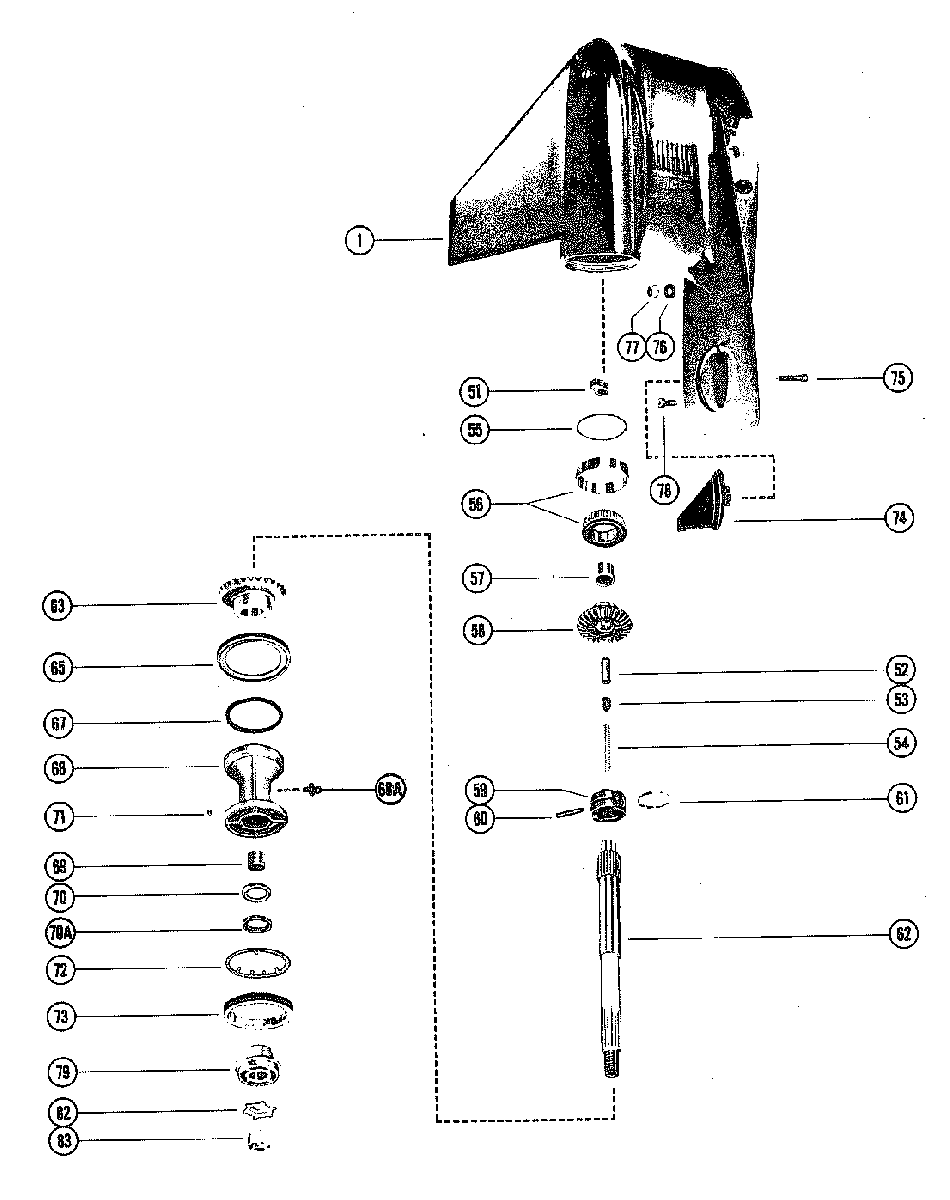

GEAR HOUSING (PROPELLER SHAFT) для Mariner - 80 8066915 AND UP
-
№АртикулНазвание
-
-1655-7333A41 GEAR HOUSING ASSEMBLY, COMPLETEGEAR HOUSING ASSEMBLY, COMPLETE
-
11655-7333A43 GEAR HOUSING ASS'Y - SEE PAGE 34 FOR BREAKDOWNGEAR HOUSING ASS'Y - SEE PAGE 34 FOR BREAKDOWN
-
51760394 SHIFT CAMSHIFT CAM
-
5230625 CAM FOLLOWERCAM FOLLOWER
-
5330624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5424-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5515-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10)
-
5631-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5731-30895T ROLLER BEARING, FORWARD GEARROLLER BEARING, FORWARD GEAR
-
5843-75314T2 FORWARD GEARFORWARD GEAR
-
5952-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6017-8M0100263 CROSS PIN, RATCHET TO PROPELLER SHAFTCROSS PIN, RATCHET TO PROPELLER SHAFT
-
6124-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6244-93003 PROPELLER SHAFTPROPELLER SHAFT
-
6343-77562T REVERSE GEARREVERSE GEAR
-
6512-76358 THRUST WASHER, BEARING CARRIER TO GEAR HOUSINGTHRUST WASHER, BEARING CARRIER TO GEAR HOUSING
-
6725-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6841529T2 BEARING CARRIER ASSEMBLY (W/O GREASE FITTING)BEARING CARRIER ASSEMBLY (W/O GREASE FITTING)
-
6841529T2 BEARING CARRIER ASSEMBLY W/GREASE FITTINGBEARING CARRIER ASSEMBLY W/GREASE FITTING
-
68A22-98727 GREASE FITTING W/GREASE FITTINGGREASE FITTING W/GREASE FITTING
-
6931-30956T ROLLER BEARING, BEARING CARRIERROLLER BEARING, BEARING CARRIER
-
7026-76868 OIL SEAL, BEARING CARRIER - INNEROIL SEAL, BEARING CARRIER - INNER
-
70A26-70081 OIL SEAL, BEARING CARRIER - OUTEROIL SEAL, BEARING CARRIER - OUTER
-
7128-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7214-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
7352699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7497-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
7510-66024 SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")
-
7612-45176 WASHER, DRIVE SHAFT HOUSING STUDSWASHER, DRIVE SHAFT HOUSING STUDS
-
7711-34933 NUT, DRIVE SHAFT HOUSING STUDSNUT, DRIVE SHAFT HOUSING STUDS
-
7810-65210 SCREW, GEAR HOUSING (1")SCREW, GEAR HOUSING (1")
-
7913191Q01 THRUST HUBTHRUST HUB
-
8214-816629Q TAB WASHER, PROPELLER N UTTAB WASHER, PROPELLER N UT
-
8311-52707Q1 PROPELLER NUTPROPELLER NUT
