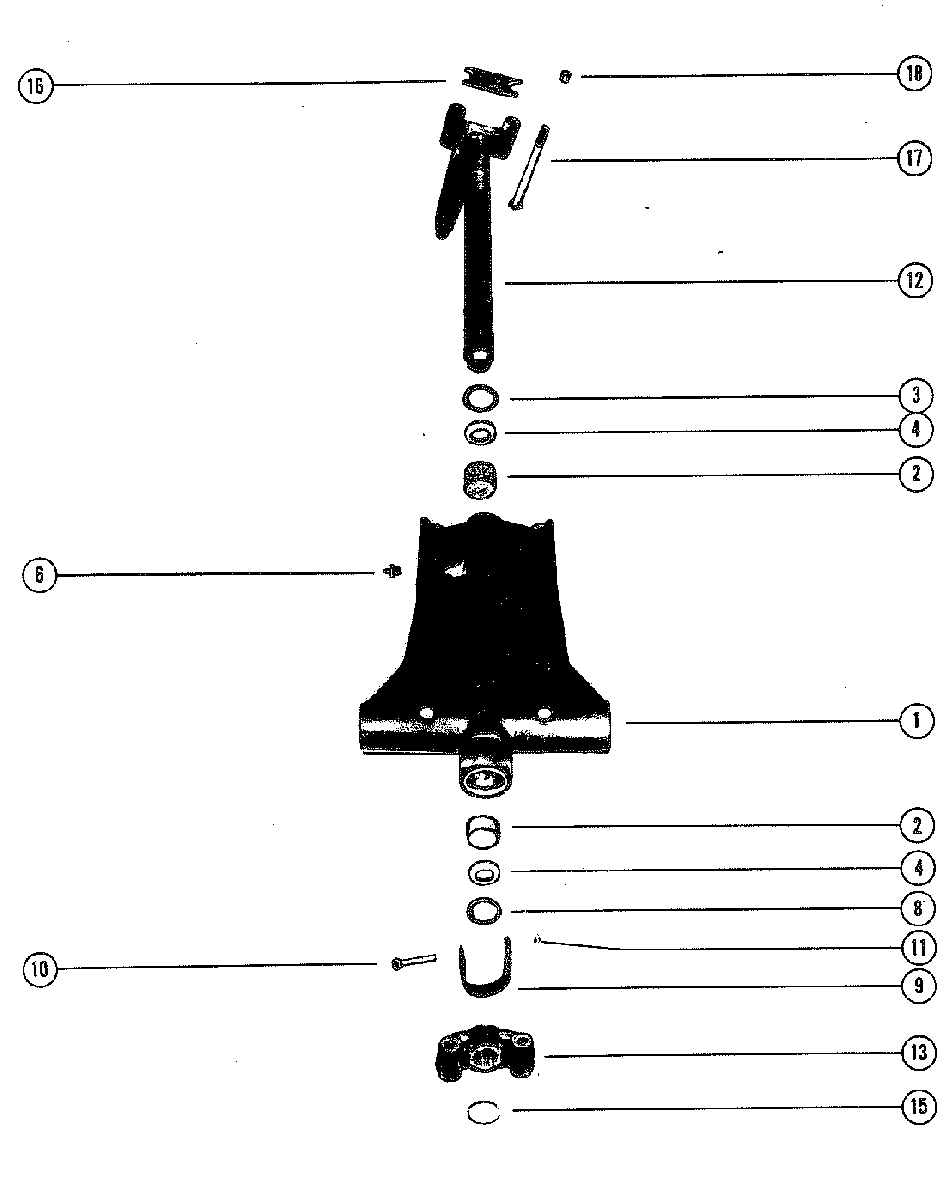

SWIVEL BRACKET ASSEMBLY для Mariner - 80 8066915 AND UP
-
№АртикулНазвание
-
11482-7670A5 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
223-69341 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
312-69342 WASHER, SWIVEL PIN - UPPERWASHER, SWIVEL PIN - UPPER
-
426-37448 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
622-74036 GREASE FITTINGGREASE FITTING
-
813-88507 WAVE WASHER, SWIVEL PIN (LOWER)WAVE WASHER, SWIVEL PIN (LOWER)
-
928205T STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKETSTRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET
-
1010-28200 SCREW, STRAP STOP TO HOUSING (3-7/8")SCREW, STRAP STOP TO HOUSING (3-7/8")
-
1111-25269 NUT, STRAP STOP FASTENING SCREWNUT, STRAP STOP FASTENING SCREW
-
1217-73593A2 SWIVEL PIN ASSEMBLYSWIVEL PIN ASSEMBLY
-
1373984T YOKE, BOTTOMYOKE, BOTTOM
-
1553-73591 SNAP RING, YOKE ATTACHINGSNAP RING, YOKE ATTACHING
-
1628203 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
1710-49554 BOLT, STEERING ARM TO UPPER MOUNT (5-7/8")BOLT, STEERING ARM TO UPPER MOUNT (5-7/8")
-
1811-34933 NUT, STEERING ARM BOLT FASTENINGNUT, STEERING ARM BOLT FASTENING
