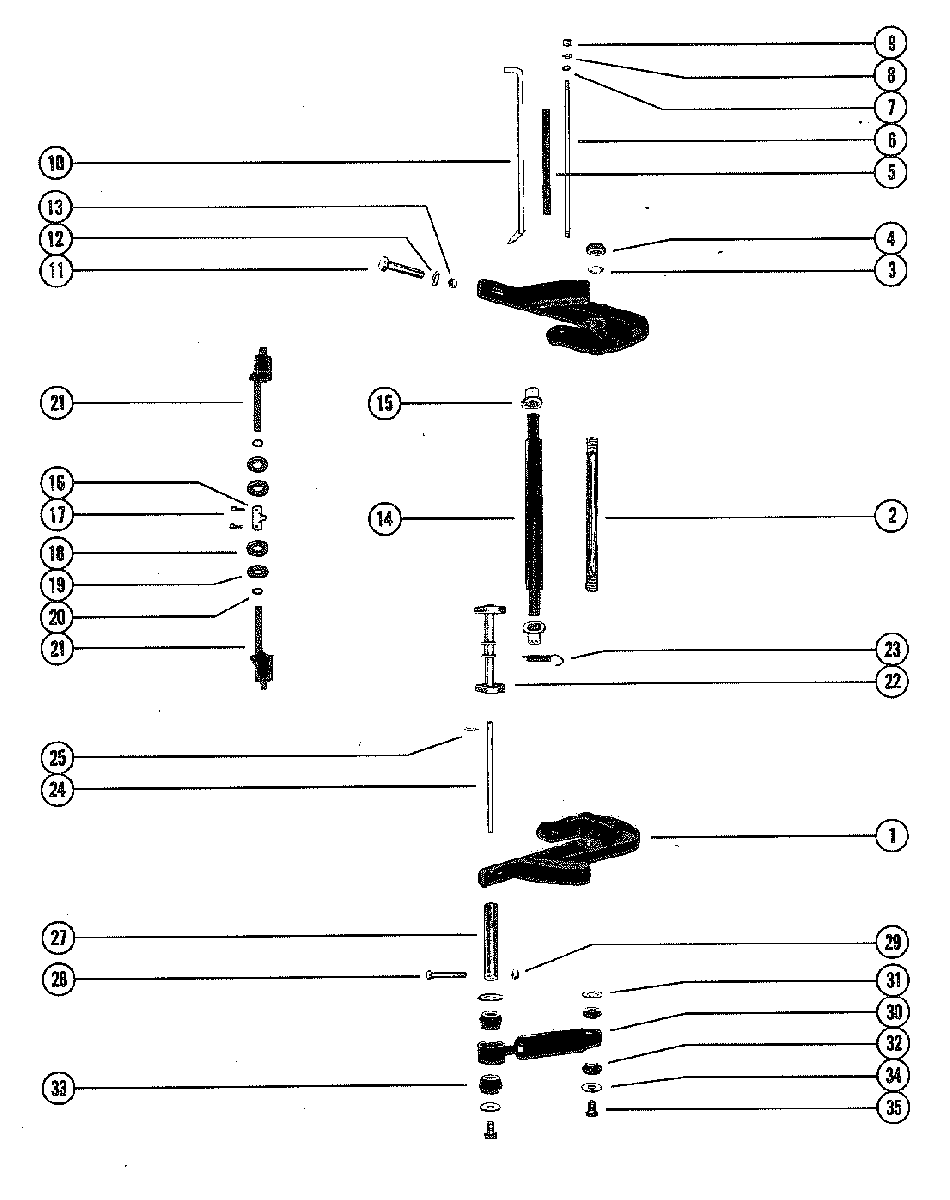

TRANSOM BRACKET для Mariner - 80 8066915 AND UP
-
№АртикулНазвание
-
11496-8822A1 TRANSOM BRACKETTRANSOM BRACKET
-
289099 TILT TUBETILT TUBE
-
313-89297 WAVE WASHER, TILT TUBEWAVE WASHER, TILT TUBE
-
411-858869 NUT, TILT TUBENUT, TILT TUBE
-
523-87642 SPACER, TRANSOM BRACKET STUDSPACER, TRANSOM BRACKET STUD
-
616-87643 STUD, TRANSOM BRACKET - NOT USED WITH POWER TRIMSTUD, TRANSOM BRACKET - NOT USED WITH POWER TRIM
-
712-36001 WASHER, TRANSOM BRACKET STUDWASHER, TRANSOM BRACKET STUD
-
813-26993 LOCKWASHER, TRANSOM BRACKET STUDLOCKWASHER, TRANSOM BRACKET STUD
-
911-28770 NUT, TRANSOM BRACKET STUDNUT, TRANSOM BRACKET STUD
-
1017-8M0026068 TILT PIN ASS'Y-NOT USED WITH POWER TRIMTILT PIN ASS'Y-NOT USED WITH POWER TRIM
-
1110-89673 BOLT, TRANSOM BRACKET TO TRANSOM (5")BOLT, TRANSOM BRACKET TO TRANSOM (5")
-
1212-46765 WASHER, TRANSOM BRACKET BOLTWASHER, TRANSOM BRACKET BOLT
-
1311-82671112 NUT, TRANSOM BRACKET BOLTNUT, TRANSOM BRACKET BOLT
-
1110-677552 BOLT, TRANSOM BRACKET TO TRANSOM (6")BOLT, TRANSOM BRACKET TO TRANSOM (6")
-
1212-28421 WASHER, TRANSOM BRACKET BOLTWASHER, TRANSOM BRACKET BOLT
-
1311-91962 NUT, TRANSOM BRACKET BOLTNUT, TRANSOM BRACKET BOLT
-
1489116 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
1523-89117 BUSHING, UPPER SHOCK MOUNTING PINBUSHING, UPPER SHOCK MOUNTING PIN
-
1679659 COUPLING, TILT LOCKCOUPLING, TILT LOCK
-
1718-47959 COTTER PIN, TILT LOCKCOTTER PIN, TILT LOCK
-
1826-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK)OIL SEAL, SWIVEL BRACKET (TILT LOCK)
-
1912-76388 WASHER, TILT LOCKWASHER, TILT LOCK
-
2025-627021 "O" RING, TILT LOCK"O" RING, TILT LOCK
-
2189105 TILT LOCKTILT LOCK
-
2287431 REVERSE LOCK ASS'Y NOT USED WITH POWER TRIM
UNITED STATES 5824917 AND BELOW
AUSTRALIA 8067014 AND BELOW
CANADA 7177747 AND BELOWREVERSE LOCK ASS'Y NOT USED WITH POWER TRIM
UNITED STATES 5824917 AND BELOW
AUSTRALIA 8067014 AND BELOW
CANADA 7177747 AND BELOW -
2324-78203A2 SPRING ASSEMBLY NOT USED WITH POWER TRIM
UNITED STATES 5824917 AND BELOW
AUSTRALIA 8067014 AND BELOW
CANADA 7177747 AND BELOWSPRING ASSEMBLY NOT USED WITH POWER TRIM
UNITED STATES 5824917 AND BELOW
AUSTRALIA 8067014 AND BELOW
CANADA 7177747 AND BELOW -
2214664A3 REVERSE LOCK ASS'Y NOT USED WITH POWER TRIM
UNITED STATES 5824918 AND UP
CANADA 7177748 AND UPREVERSE LOCK ASS'Y NOT USED WITH POWER TRIM
UNITED STATES 5824918 AND UP
CANADA 7177748 AND UP -
2324-78203A2 SPRING ASSEMBLY NOT USED WITH POWER TRIM
UNITED STATES 5824918 AND UP
CANADA 7177748 AND UPSPRING ASSEMBLY NOT USED WITH POWER TRIM
UNITED STATES 5824918 AND UP
CANADA 7177748 AND UP -
2456349 SHAFT, REVERSE LOCK PIVOT NOT USED WITH POWER TRIMSHAFT, REVERSE LOCK PIVOT NOT USED WITH POWER TRIM
-
2518-45882 COTTER PIN, LOCK TO SHAFT NOT USED WITH POWER TRIMCOTTER PIN, LOCK TO SHAFT NOT USED WITH POWER TRIM
-
2755-28414 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
2810-21937 SCREW, LOWER SHOCK PIN (2")SCREW, LOWER SHOCK PIN (2")
-
2911-20184 NUT, LOWER SHOCK PIN SCREWNUT, LOWER SHOCK PIN SCREW
-
3055-58780A4 SHOCK ABSORBER NOT USED WITH POWER TRIMSHOCK ABSORBER NOT USED WITH POWER TRIM
-
3112-28196 WASHER, UPPER BUSHING RETAINER (INNER)
NOT USED WITH POWER TRIMWASHER, UPPER BUSHING RETAINER (INNER)
NOT USED WITH POWER TRIM -
3223-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
NOT USED WITH POWER TRIMBUSHING, RUBBER - SHOCK ABSORBER (UPPER)
NOT USED WITH POWER TRIM -
3323-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
NOT USED WITH POWER TRIMBUSHING, RUBBER - SHOCK ABSORBER (LOWER)
NOT USED WITH POWER TRIM -
3412-69374 WASHER, UPPER/LOWER SHOCK PIN (LOWER)
NOT USED WITH POWER TRIMWASHER, UPPER/LOWER SHOCK PIN (LOWER)
NOT USED WITH POWER TRIM -
3510-69375 SCREW, UPPER AND LOWER SHOCK PIN
NOT USED WITH POWER TRIMSCREW, UPPER AND LOWER SHOCK PIN
NOT USED WITH POWER TRIM
