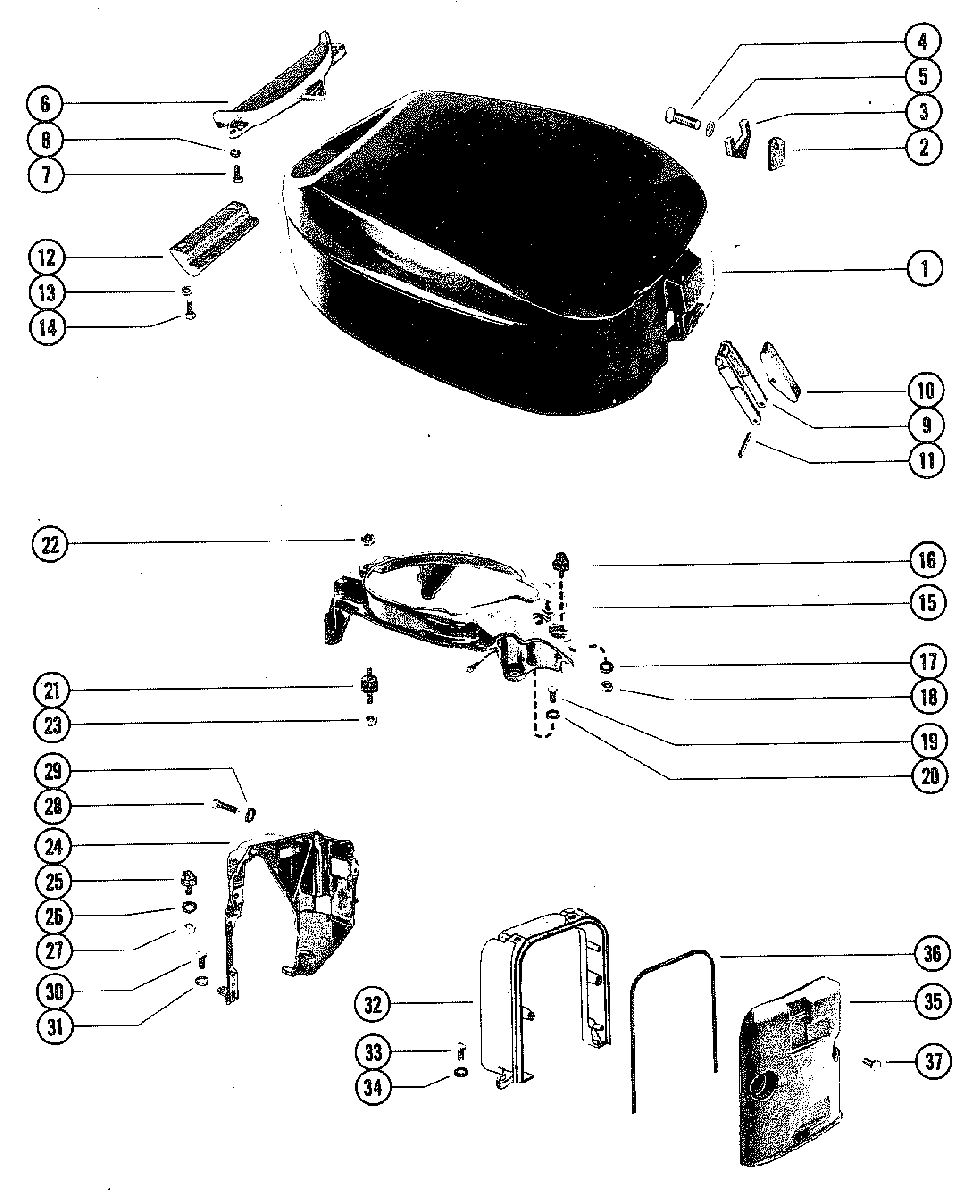

TOP COWL AND SUPPORT BRACKETS для Mariner - 80 8066915 AND UP
-
№АртикулНазвание
-
12162-6392T6 COWL, TOP (WITHOUT DECALS)COWL, TOP (WITHOUT DECALS)
-
276440 RETAINER, TOP COWLRETAINER, TOP COWL
-
376505 PAD, BUMPER-TOP COWL RETAINERPAD, BUMPER-TOP COWL RETAINER
-
410-25299 SCREW, RETAINER TO TOP COWLSCREW, RETAINER TO TOP COWL
-
513-39107 LOCKWASHER, RETAINER SCREWLOCKWASHER, RETAINER SCREW
-
676433 SHIELD, TOP COWL-REARSHIELD, TOP COWL-REAR
-
710-37370 SCREW, SHIELD TO TOP COWL (5/8")SCREW, SHIELD TO TOP COWL (5/8")
-
813-37371 LOCKWASHER, SHIELD SCREWLOCKWASHER, SHIELD SCREW
-
952739 HINGE, COWL LATCH-TOP COWLHINGE, COWL LATCH-TOP COWL
-
1094918F1 LEVER, COWL LATCH HINGELEVER, COWL LATCH HINGE
-
1117-58998 PIN, COWL LATCH LEVER TO HINGEPIN, COWL LATCH LEVER TO HINGE
-
1255455 HOOK, TOP COWL LATCH REARHOOK, TOP COWL LATCH REAR
-
1313-26992 LOCKWASHER, REAR HOOK SCREWLOCKWASHER, REAR HOOK SCREW
-
1410-22956 SCREW, REAR HOOK TO TOP COWL (7/8")SCREW, REAR HOOK TO TOP COWL (7/8")
-
1573401T FRAME, SUPPORT-TOP COWLFRAME, SUPPORT-TOP COWL
-
1637640 MOUNT, RUBBER-SUPPORT FRAMEMOUNT, RUBBER-SUPPORT FRAME
-
1713-26993 LOCKWEASHER, RUBBER MOUNTLOCKWEASHER, RUBBER MOUNT
-
1811-28770 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
1910-37562 SCREW, SUPPORT FRAME TO FRONT FRAME (1")SCREW, SUPPORT FRAME TO FRONT FRAME (1")
-
2013-26993 LOCKWASHER, SUPPORT FRAME SCREWLOCKWASHER, SUPPORT FRAME SCREW
-
2190435 MOUNT, RUBBER- TOP COWL FRAMEMOUNT, RUBBER- TOP COWL FRAME
-
2211-35888 NUT, RUBBER MOUNT (UPPER)NUT, RUBBER MOUNT (UPPER)
-
2311-20184 NUT, RUBBER MOUNT (LOWER)NUT, RUBBER MOUNT (LOWER)
-
2452468 BRACKET, TOP COWL SUPPORT-REARBRACKET, TOP COWL SUPPORT-REAR
-
2531014 MOUNT, RUBBER-REAR SUPPORT BRACKETMOUNT, RUBBER-REAR SUPPORT BRACKET
-
2613-26992 LOCKWASHER, RUBBER MOUNTLOCKWASHER, RUBBER MOUNT
-
2711-29598 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
2810-37562 SCREW, REAR BRACKET TO FRAME (1")SCREW, REAR BRACKET TO FRAME (1")
-
2913-26993 LOCKWASHER, REAR BRACKET SCREWLOCKWASHER, REAR BRACKET SCREW
-
3010-37562 SCREW, REAR BRACKET TO BOTTOM COWL (1")SCREW, REAR BRACKET TO BOTTOM COWL (1")
-
3113-26993 LOCKWASHER, REAR BRACKET SCREWLOCKWASHER, REAR BRACKET SCREW
-
3299649T FRAME, FRONT SUPPORTFRAME, FRONT SUPPORT
-
3310-37562 SCREW, SILENCER COVERSCREW, SILENCER COVER
-
3413-26993 LOCKWASHER, FRAME SCREWLOCKWASHER, FRAME SCREW
-
3589590 COVER, SILENCERCOVER, SILENCER
-
3627-76168A2 GASKET, SILENCER COVERGASKET, SILENCER COVER
-
3710-28638 SCREW, COVER TO FRONT SUPPORT FRAME (3/4")SCREW, COVER TO FRONT SUPPORT FRAME (3/4")
