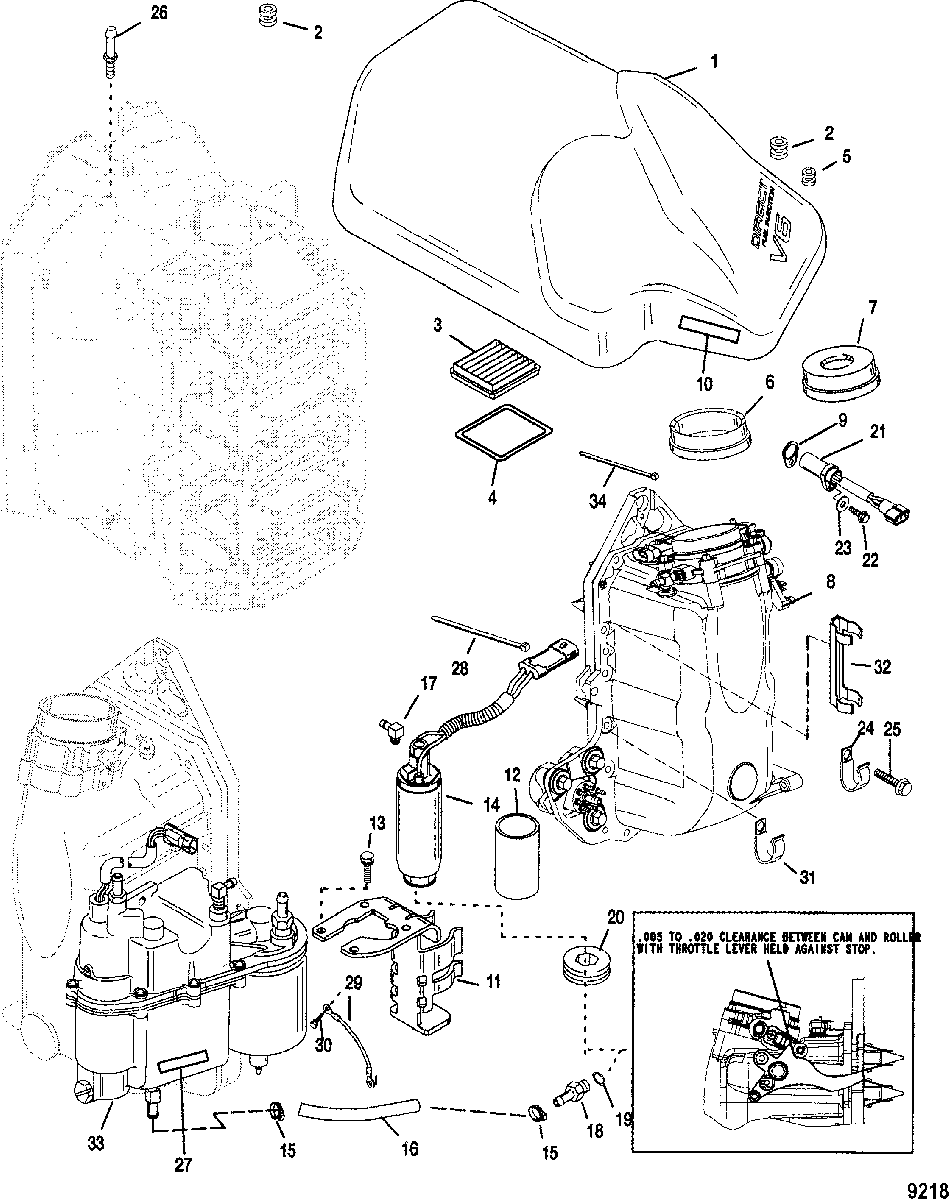

Air Handler для Mariner - V-150 DFI (2.5L) 0G960500 THRU 0T178499
-
№АртикулНазвание
-
1827325T9 COVER ASSEMBLYCOVER ASSEMBLY
-
225-821555001 GROMMETGROMMET
-
335-853333T FILTERFILTER
-
4853352 COVERCOVER
-
525-857101 GROMMETGROMMET
-
625-855613 GROMMET
(150/115/TRACKER)GROMMET
(150/115/TRACKER) -
725-8556131 GROMMET
(135)GROMMET
(135) -
8855633T21 AIR HANDLER ASSEMBLY
(135/150)AIR HANDLER ASSEMBLY
(135/150) -
8858703T3 AIR HANDLER ASSEMBLY
(115)AIR HANDLER ASSEMBLY
(115) -
915-856139 SHIMSHIM
-
915-8561391 SHIM (.010 THICK)SHIM (.010 THICK)
-
1037-881865 DECAL, Caution, Start In GearDECAL, Caution, Start In Gear
-
11855756A1 BRACKETBRACKET
-
1223-803818 SLEEVESLEEVE
-
1310-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
148M0047624 PUMP ASSEMBLYPUMP ASSEMBLY
-
1554-13791 CLAMP, (15.7)CLAMP, (15.7)
-
1632-856778 HOSEHOSE
-
1722-855802A1 ELBOWELBOW
-
1822-880862A1 FITTINGFITTING
-
1925-805062 O-RING, (.530 x .082)O-RING, (.530 x .082)
-
2025-856928 GROMMETGROMMET
-
218285581 ENCODERENCODER
-
2210-418051 SCREW, (#10-24 x .620)SCREW, (#10-24 x .620)
-
2312-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2454-97224 J CLIPJ CLIP
-
2510-817504 SCREW, (.250-20 x 1.500) Stainless SteelSCREW, (.250-20 x 1.500) Stainless Steel
-
268215832 PINPIN
-
2737-804657A00 DECAL, EPA Label Information
(2000)(SEE NOTE)DECAL, EPA Label Information
(2000)(SEE NOTE) -
2861990 TIE STRAP, (14.00 Inches)TIE STRAP, (14.00 Inches)
-
2984-88807A27 CABLE ASSEMBLYCABLE ASSEMBLY
-
3010-82130010 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
3154-633001 CLAMPCLAMP
-
328261151 CLAMP, ConnectorCLAMP, Connector
-
33NSS NOT SOLD SEPARATE, Vapor Separator AssemblyNOT SOLD SEPARATE, Vapor Separator Assembly
-
3469355 TIE STRAP, (5.50 Inches)TIE STRAP, (5.50 Inches)
-
-854008T00 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
