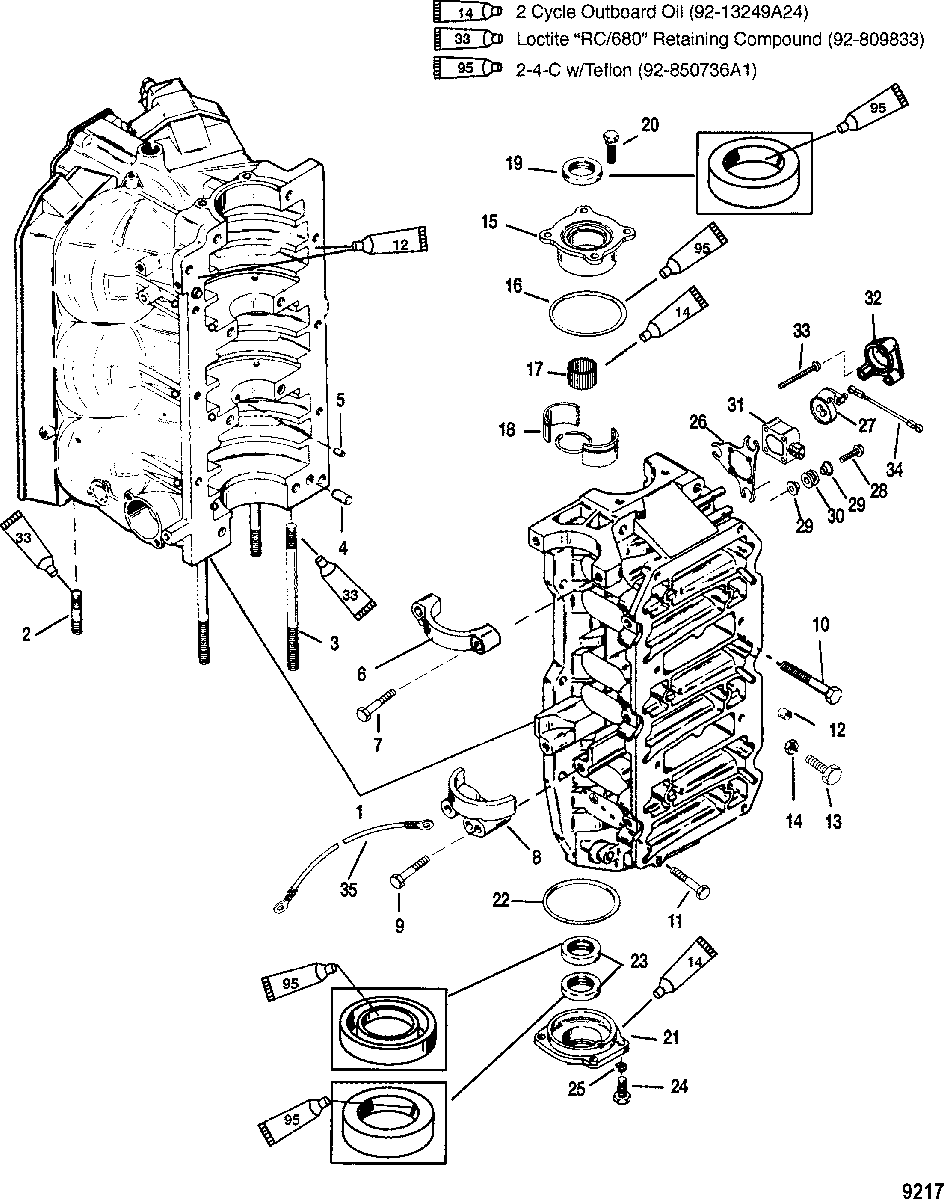

Cylinder Block and End Caps для Mariner - V-150 DFI (2.5L) 0G960500 THRU 0T178499
-
№АртикулНазвание
-
1884-828340A16 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
216-8M0034455 STUD, Powerhead (1-3/4 IN.)STUD, Powerhead (1-3/4 IN.)
-
316-670654 STUD, (.375 x 5.620)
(5-1/2 Inches)STUD, (.375 x 5.620)
(5-1/2 Inches) -
316-8M0034454 STUD, (.375 x 6.870)
(6-3/4 Inches)STUD, (.375 x 6.870)
(6-3/4 Inches) -
417-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
517-8M0036405 PIN (BEARING RACE)PIN (BEARING RACE)
-
68M0111325 COVERCOVER
-
710-828213 SCREW, (.312-18 x 1.500) Hex FlangeSCREW, (.312-18 x 1.500) Hex Flange
-
876867 COVER (BOTTOM)COVER (BOTTOM)
-
910-828214 SCREW, (.312-18 x 2.00) Hex FlangeSCREW, (.312-18 x 2.00) Hex Flange
-
1010-66717 SCREW, (.375-16 x 3.250)SCREW, (.375-16 x 3.250)
-
1110-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1226852 CAP, NylonCAP, Nylon
-
1310-856832 SCREW, (.250-20 x 1.750)SCREW, (.250-20 x 1.750)
-
1411-64015 NUT, (.250-20)NUT, (.250-20)
-
151159-832760T1 END CAP ASSEMBLYEND CAP ASSEMBLY
-
1625-54029 O-RING, (2.800 x .103)O-RING, (2.800 x .103)
-
1731-16756A4 BEARING KITBEARING KIT
-
18NSS NOT SOLD SEPARATE, Bearing RaceNOT SOLD SEPARATE, Bearing Race
-
1926-41953 SEALSEAL
-
2010-30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00)SCREW WITH LOCKWASHER, (.312-18 x 1.00)
-
211156-7809T1 END CAP ASSEMBLYEND CAP ASSEMBLY
-
2225-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
2326-41953 SEALSEAL
-
2410-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
268538821 BRACKETBRACKET
-
278519371 LEVER, Throttle Position IndicatorLEVER, Throttle Position Indicator
-
2810-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
2923-8318701 BUSHINGBUSHING
-
3025-834985 GROMMETGROMMET
-
318M6005165 INDICATOR, Throttle Position (INSIDE)INDICATOR, Throttle Position (INSIDE)
-
328582261 TPS COVERTPS COVER
-
3310-8508281 SCREW, (#10-32 x 2.00)SCREW, (#10-32 x 2.00)
-
348M0084738 LINK, ThrottleLINK, Throttle
-
3584-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
-27-8M0046714 GASKET SET, EngineGASKET SET, Engine
-
-854008T00 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
