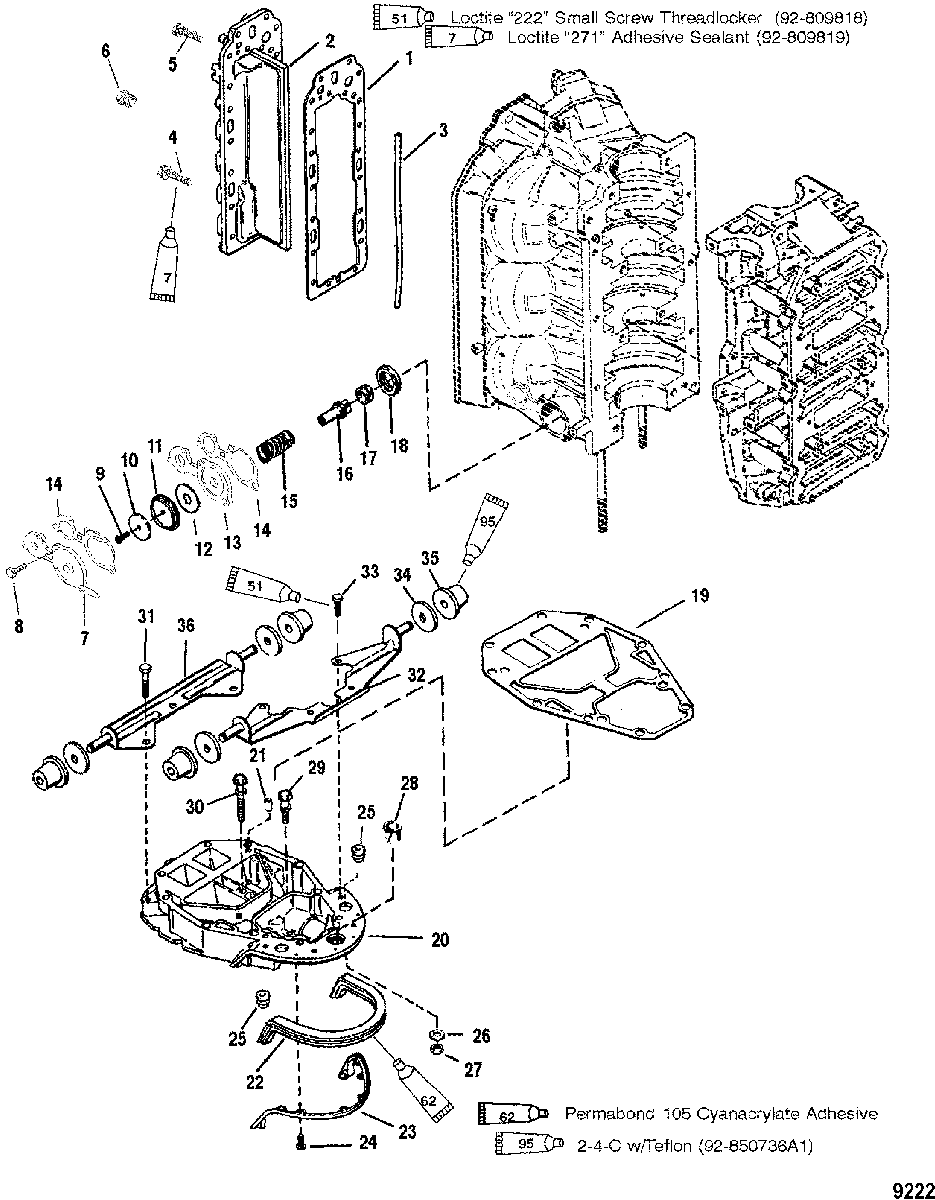

Exhaust Manifold and Exhaust Plate для Mariner - V-150 DFI (2.5L) 0G960500 THRU 0T178499
-
№АртикулНазвание
-
127-190506 GASKETGASKET
-
2828343T3 PLATE, Exhaust DividerPLATE, Exhaust Divider
-
326-814754 SEAL, (12.50 Inches)SEAL, (12.50 Inches)
-
410-8263561 SCREW AND WASHER, (.312-18 x 1.500)SCREW AND WASHER, (.312-18 x 1.500)
-
510-881190 SCREW, (.312-18 x 1.00) (5/16-18 X 1 IN.)SCREW, (.312-18 x 1.00) (5/16-18 X 1 IN.)
-
622-36373 PLUG, (.375-18) Hex - SteelPLUG, (.375-18) Hex - Steel
-
78M0039767 COVERCOVER
-
810-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
910-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
1012-76451 WASHERWASHER
-
11144791 DIAPHRAGMDIAPHRAGM
-
1216496 DEFLECTOR, WaterDEFLECTOR, Water
-
1316497A1 PLATEPLATE
-
1427-78690002 GASKETGASKET
-
1524-42996 SPRINGSPRING
-
1614480 POPPETPOPPET
-
1725-64872 GROMMETGROMMET
-
1865848 CARRIERCARRIER
-
1927-991764 GASKETGASKET
-
20850814T2 PLATE, ExhaustPLATE, Exhaust
-
2117-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
228M0043164 SEALSEAL
-
23680101 BRACKETBRACKET
-
2410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2525-19565002 GROMMETGROMMET
-
2612-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2711-69254 NUTNUT
-
2823-27132 BUSHINGBUSHING
-
2910-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
3010-68783 SCREW, (.312-18 x 2.50)SCREW, (.312-18 x 2.50)
-
3110-898833 SCREW, (.375-16 x 3.50)SCREW, (.375-16 x 3.50)
-
32812905T BRACKET ASSEMBLY, FrontBRACKET ASSEMBLY, Front
-
3310-8055571 SCREW, (.3125-18 x .50)SCREW, (.3125-18 x .50)
-
3412-187031 WASHERWASHER
-
3525-18778001 GROMMETGROMMET
-
3618578T09 BRACKET ASSEMBLY, RearBRACKET ASSEMBLY, Rear
-
-27-8M0046714 GASKET SET, EngineGASKET SET, Engine
-
-854008T00 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
