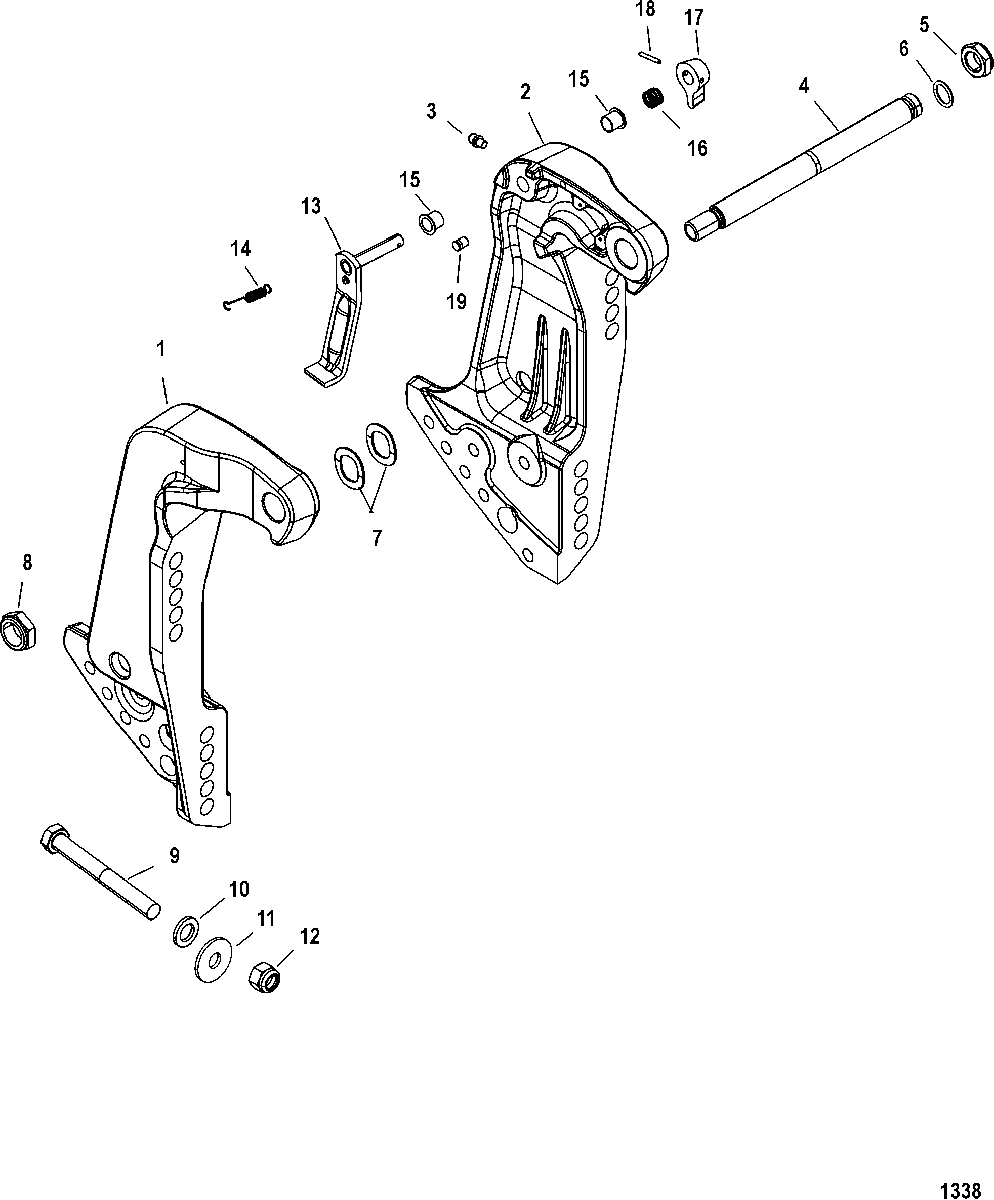

Transom Brackets для Mariner - V-150 DFI (2.5L) 0G960500 THRU 0T178499

№

Артикул

Название
1

3426-828334T03 BRACKET ASSEMBLY, Transom-Starboard

BRACKET ASSEMBLY, Transom-Starboard

38 310 ₽
2

3425-828333T08 BRACKET ASSEMBLY, Transom-Port

BRACKET ASSEMBLY, Transom-Port

0 ₽
3

22-98727 FITTING, Grease (PORT)

FITTING, Grease (PORT)

400 ₽
4

826125A1 TILT TUBE

TILT TUBE

26 370 ₽
5

11-826135 NUT, (1.00-14) Brass/Nickel Plate

NUT, (1.00-14) Brass/Nickel Plate

1 350 ₽
6

25-45711 O-RING, (.612 x .103)

O-RING, (.612 x .103)

150 ₽
7

13-88750 WASHER

WASHER

450 ₽
8

11-826164 NUT, (.875-14)

NUT, (.875-14)

980 ₽
9

10-677551 SCREW, (.500-20 x 4.500)

SCREW, (.500-20 x 4.500)

1 130 ₽
10

12-54012 WASHER, (.530 x .870 x .105) Stainless Steel

WASHER, (.530 x .870 x .105) Stainless Steel

190 ₽
11

12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel

WASHER, (1.5 x 3.05 x 0.13) Stainless Steel

260 ₽
12

11-82671117 NUT, (.500-20)

NUT, (.500-20)

560 ₽
13

8M0115104 LEVER ASSEMBLY, Tilt Lock

LEVER ASSEMBLY, Tilt Lock

11 640 ₽
14

24-830899 SPRING, Tension

SPRING, Tension

440 ₽
15

23-65830 NYLINER

NYLINER

320 ₽
16

24-830900 SPRING, Compression

SPRING, Compression

200 ₽
17

99633 KNOB

KNOB

190 ₽
18

17-99615 PIN, Groove

PIN, Groove

320 ₽
19

17-893709 PIN

PIN

270 ₽
