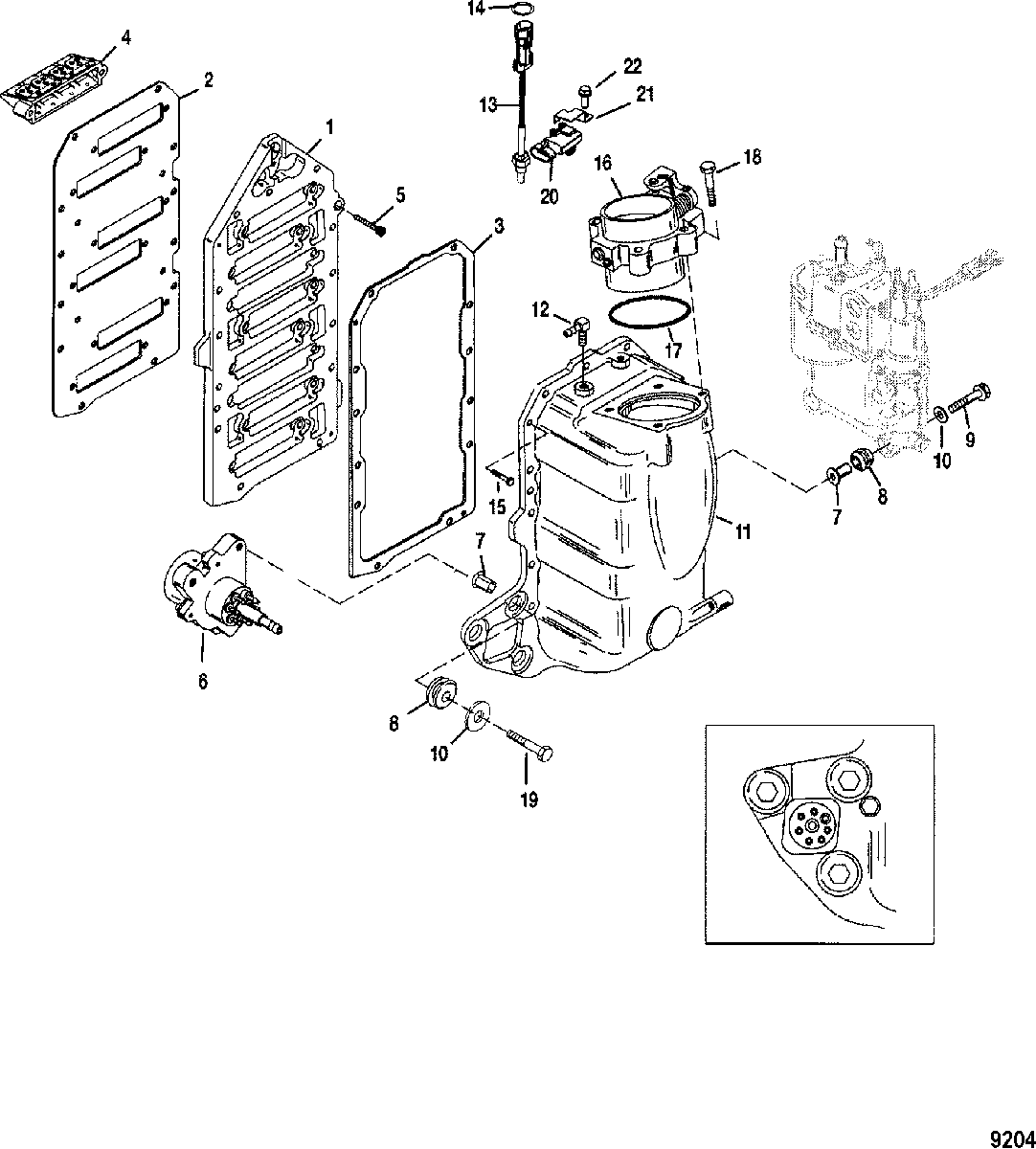

Air Handler Components для Mariner - V-150 DFI (2.5L) 0G960500 THRU 0T178499
-
№АртикулНазвание
-
-855633T21 AIR HANDLER ASSEMBLY
(135/150)AIR HANDLER ASSEMBLY
(135/150) -
-858703T3 AIR HANDLER ASSEMBLY
(115)AIR HANDLER ASSEMBLY
(115) -
1855420T02 ADAPTOR PLATE KITADAPTOR PLATE KIT
-
227-146973 GASKETGASKET
-
327-8500581 GASKETGASKET
-
4855952T4 REED BLOCK
(115)REED BLOCK
(115) -
4855952T2 REED BLOCK
(135/150)REED BLOCK
(135/150) -
510-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
68M0128080 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
723-855364 BUSHINGBUSHING
-
825-855362001 GROMMETGROMMET
-
910-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1012-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
11850248A2 PLENUM KIT, AirPLENUM KIT, Air
-
1222-8554242 ELBOWELBOW
-
13889575 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
1425-627021 O-RING, (.301 x .070)O-RING, (.301 x .070)
-
1510-4001987 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
16855422A2 THROTTLE BODY KIT
(115)THROTTLE BODY KIT
(115) -
16855422A1 THROTTLE BODY KIT
(135/150)THROTTLE BODY KIT
(135/150) -
1725-855423 O-RINGO-RING
-
1810-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1910-81893430 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
20854445 SENSOR, MAPSENSOR, MAP
-
21884522 BRACKETBRACKET
-
2210-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
-854008T00 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
