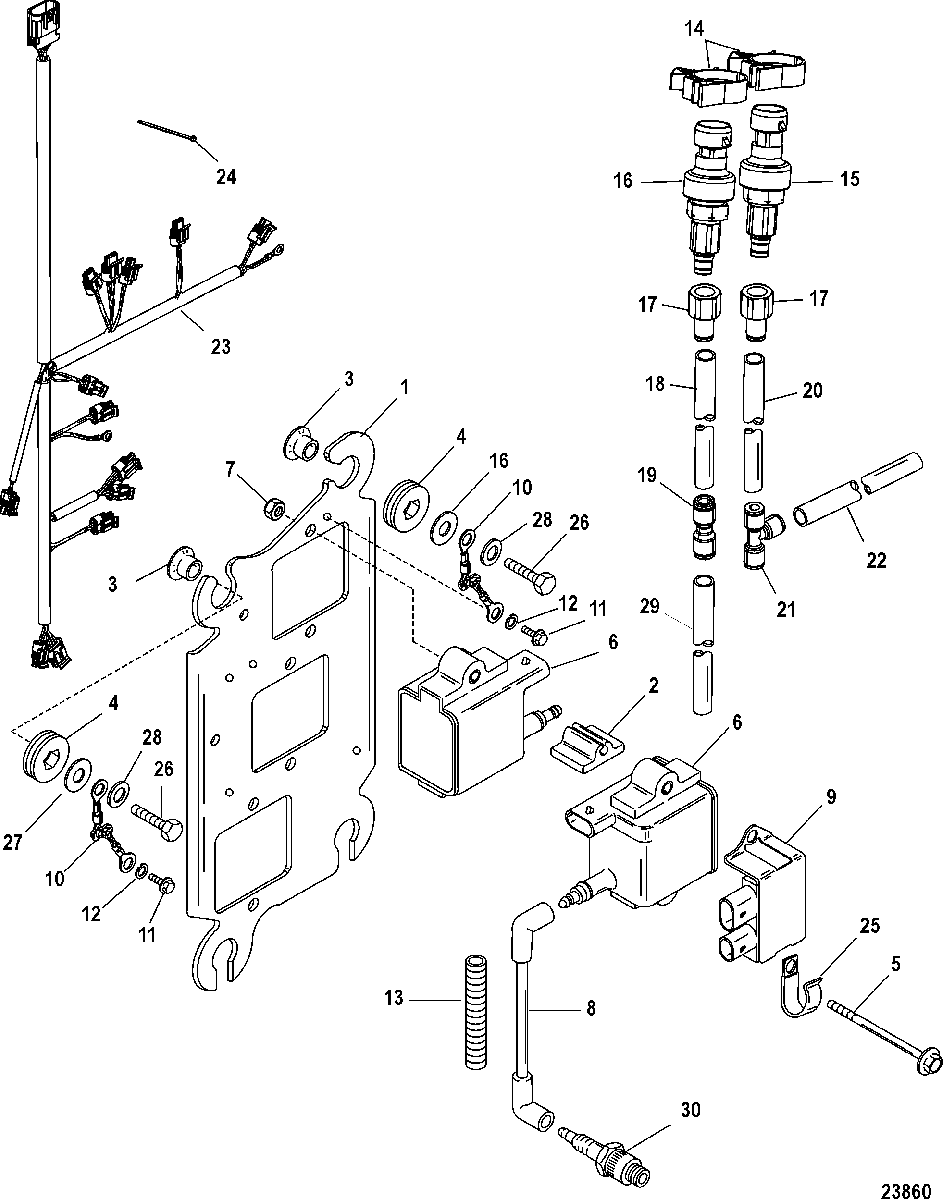

Coil Plate Assembly, Serial Number 1B490865 and Below для Mariner - V-175 DFI (2.5L) 1B417702 & Up
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Coil Plate Assembly-CompleteNOT SOLD SEPARATE, Coil Plate Assembly-Complete
-
18M0011731 PLATE, CoilPLATE, Coil
-
2850676F1 SPACERSPACER
-
323-8502341 BUSHINGBUSHING
-
425-833155 GROMMETGROMMET
-
510-850898 SCREW, (.250-20 x 3.250)SCREW, (.250-20 x 3.250)
-
6339-856991A1 COIL KITCOIL KIT
-
711-814101 NUT, (.250-20) Stainless SteelNUT, (.250-20) Stainless Steel
-
884-881908T CABLE SETCABLE SET
-
9859595T DRIVER, Dual CoilDRIVER, Dual Coil
-
1084-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
1110-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1332-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
-
1454-883066 CLIP, (.865)CLIP, (.865)
-
158M6000623 SENSORSENSOR
-
16881879T11 SENSOR, Pressure (0 - 100 PSI)SENSOR, Pressure (0 - 100 PSI)
-
1722-892403 FITTINGFITTING
-
1832-85944975 TUBING, (72.00 Inches Bulk), Cut to 14-1/2 InchesTUBING, (72.00 Inches Bulk), Cut to 14-1/2 Inches
-
1922-859747 COUPLERCOUPLER
-
2032-85978571 TUBING, (52.00 Inches Bulk), Cut to 15 InchesTUBING, (52.00 Inches Bulk), Cut to 15 Inches
-
2122-875207 TEE, FittingTEE, Fitting
-
2232-85978571 TUBING, (52.00 Inches Bulk), Cut to 5 InchesTUBING, (52.00 Inches Bulk), Cut to 5 Inches
-
2384-892910T02 HARNESS ASSEMBLY, CoilHARNESS ASSEMBLY, Coil
-
2454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2554-54457 J CLIPJ CLIP
-
2610-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
2712-49436 WASHERWASHER
-
2812-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
2932-85944975 TUBING, (72.00 Inches Bulk), Cut to 52 InchesTUBING, (72.00 Inches Bulk), Cut to 52 Inches
-
3033-889597Q SPARK PLUGSPARK PLUG
