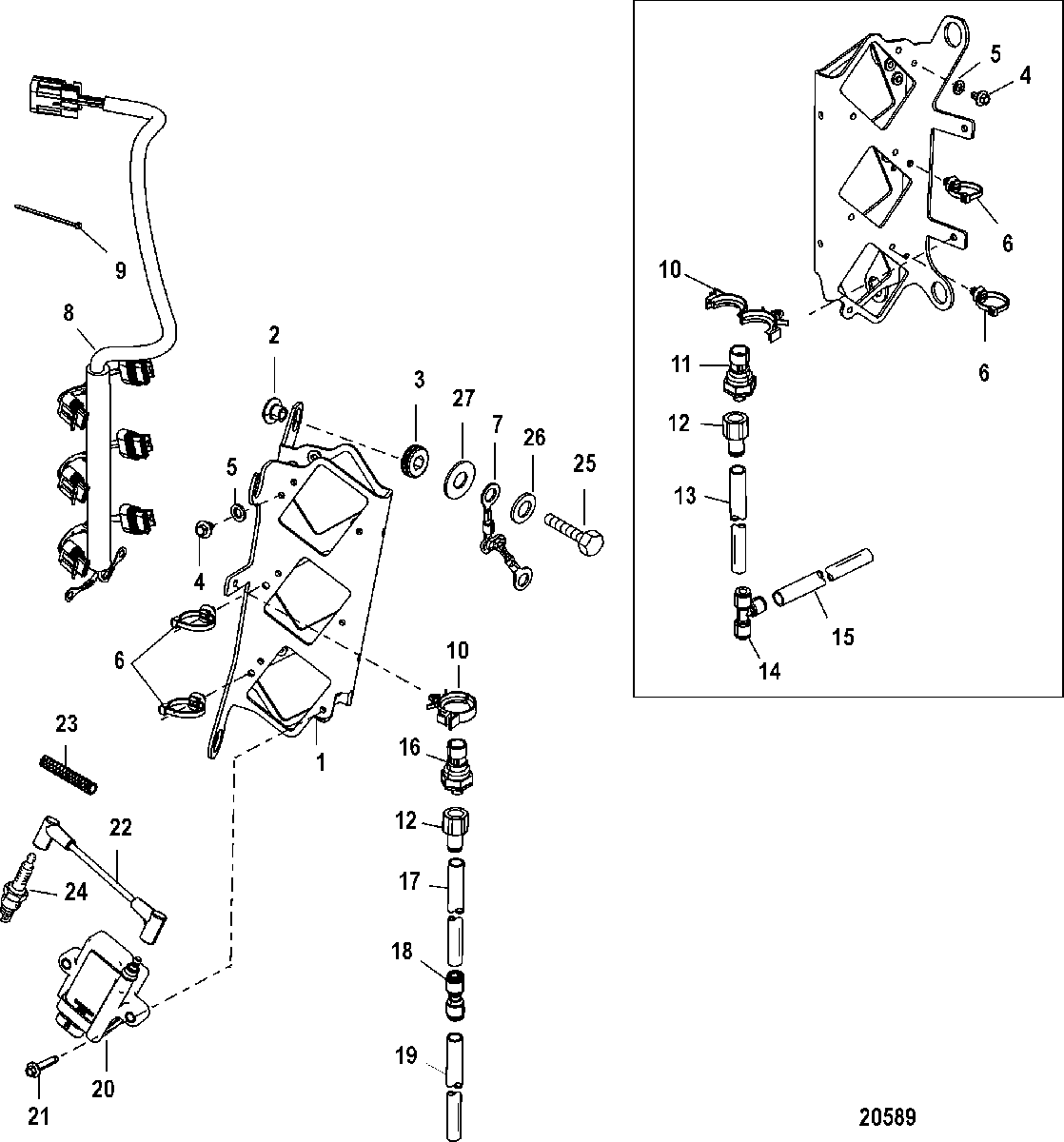

Coil Plate Assembly, Serial Number 1B490866 and Up для Mariner - V-175 DFI (2.5L) 1B417702 & Up
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Coil Plate Assembly-CompleteNOT SOLD SEPARATE, Coil Plate Assembly-Complete
-
1884271 PLATE, Coil MountingPLATE, Coil Mounting
-
223-8502341 BUSHINGBUSHING
-
325-833155 GROMMETGROMMET
-
410-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
654-899145 CLIP, Tie StrapCLIP, Tie Strap
-
784-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
884-892910T03 HARNESS ASSEMBLY, CoilHARNESS ASSEMBLY, Coil
-
-879346A51 HARNESS ASSEMBLY, 5 PinHARNESS ASSEMBLY, 5 Pin
-
954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1054-883066 CLIP, (.865)CLIP, (.865)
-
118M6000623 SENSORSENSOR
-
1222-892403 FITTINGFITTING
-
1332-85978571 TUBING, (52.00 Inches Bulk), Cut to 4 InchesTUBING, (52.00 Inches Bulk), Cut to 4 Inches
-
1422-875207 TEE, FittingTEE, Fitting
-
1532-85978571 TUBING, (52.00 Inches Bulk), Cut to 5 InchesTUBING, (52.00 Inches Bulk), Cut to 5 Inches
-
16881879T11 SENSOR, Pressure (0 - 100 PSI)SENSOR, Pressure (0 - 100 PSI)
-
1732-85944975 TUBING, (72.00 Inches Bulk), Cut to 14-1/2 InchesTUBING, (72.00 Inches Bulk), Cut to 14-1/2 Inches
-
1822-859747 COUPLERCOUPLER
-
1932-85944975 TUBING, (72.00 Inches Bulk), Cut to 52 InchesTUBING, (72.00 Inches Bulk), Cut to 52 Inches
-
20339-8M0077473 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
2110-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
2284-881908T CABLE SETCABLE SET
-
2332-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
-
2433-889597Q SPARK PLUGSPARK PLUG
-
2510-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
2612-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
2712-49436 WASHERWASHER
