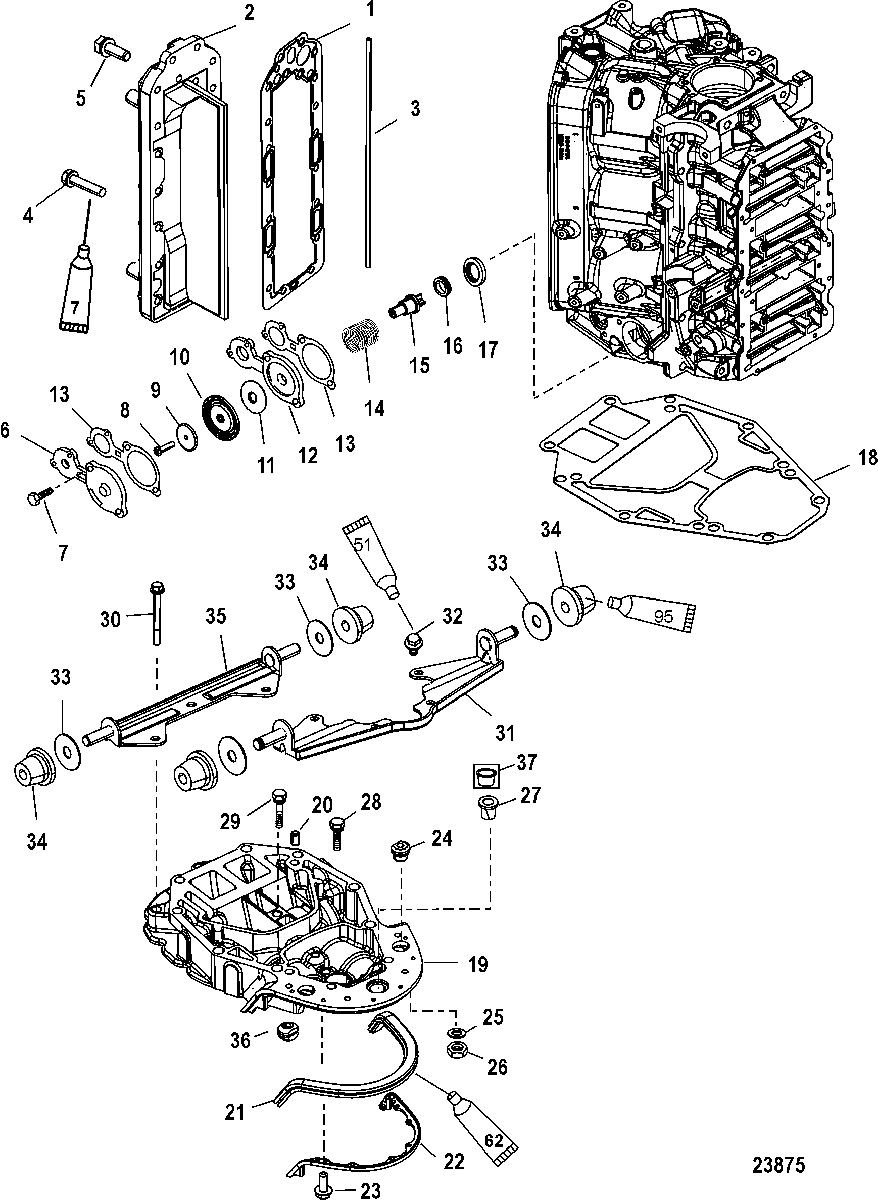

Exhaust Manifold and Exhaust Plate для Mariner - V-175 DFI (2.5L) 1B417702 & Up
-
№АртикулНазвание
-
127-190506 GASKETGASKET
-
2828343A05 PLATE ASSEMBLY, Exhaust DividerPLATE ASSEMBLY, Exhaust Divider
-
326-814754 SEAL, (12.50 Inches)SEAL, (12.50 Inches)
-
410-8263561 SCREW AND WASHER, (.312-18 x 1.500)SCREW AND WASHER, (.312-18 x 1.500)
-
510-881190 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
68M0039767 COVER, Relief ValveCOVER, Relief Valve
-
710-31984 SCREW, (.312-18 x 1.375)SCREW, (.312-18 x 1.375)
-
810-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
912-76451 WASHERWASHER
-
10144791 DIAPHRAGMDIAPHRAGM
-
1116496 DEFLECTOR, WaterDEFLECTOR, Water
-
1216497A1 PLATEPLATE
-
1327-78690002 GASKETGASKET
-
1424-42996 SPRING, (Stainless Steel)SPRING, (Stainless Steel)
-
1514480 POPPETPOPPET
-
1625-64872 GROMMETGROMMET
-
1765848 CARRIERCARRIER
-
1827-991764 GASKETGASKET
-
19850814T4 PLATE, ExhaustPLATE, Exhaust
-
2017-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
218M0043164 SEALSEAL
-
22680101 BRACKETBRACKET
-
2310-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2425-19565002 GROMMETGROMMET
-
2512-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2611-69254 NUTNUT
-
2723-27132 BUSHING
Non-JetBUSHING
Non-Jet -
2810-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
2910-68783 SCREW, (.312-18 x 2.50)SCREW, (.312-18 x 2.50)
-
3010-898833 SCREW, (.375-16 x 3.500)SCREW, (.375-16 x 3.500)
-
31812905T BRACKET, FrontBRACKET, Front
-
3210-8055571 SCREW, (.3125-18 x .50)SCREW, (.3125-18 x .50)
-
3312-187031 WASHERWASHER
-
3425-18778001 GROMMETGROMMET
-
3518578T09 BRACKET ASSEMBLY, RearBRACKET ASSEMBLY, Rear
-
3625-12602002 GROMMETGROMMET
-
3719-8M0033787 PLUG
JetPLUG
Jet -
-27-8M0046714 GASKET SET, EngineGASKET SET, Engine
-
-879808T07 POWERHEAD ASSEMBLY
135/150/Jet 110POWERHEAD ASSEMBLY
135/150/Jet 110 -
-879809T07 POWERHEAD ASSEMBLY
175POWERHEAD ASSEMBLY
175
